Three Phase Monitoring & Protection Meter
DZS500

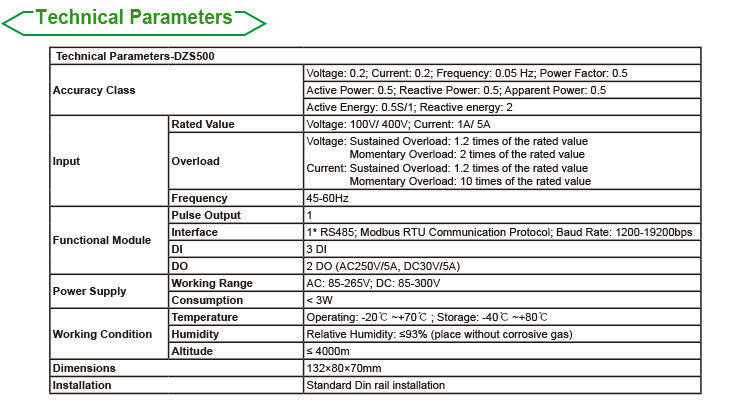

  • Measuring three phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, active power, reactive power, apparent power, power factor, frequency, Active energy, reactive energy, Voltage unbalance, current unbalance

  • Demand analysis

  • 1* programmable energy pulse output

  • Multi-tariff (optional), available for querying past 12 months' energy

  • Analysis of current/voltage harmonic (2-31times)

  • Communication: Modbus RTU via rs485

  • Accuracy: Active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%

  • Off-limit alarm and alarm event record

  • SOE records accurate to milliseconds

  • Motor protection

  • Current & power indicator diagram (cycle self-adjusting)

  • Synchronous indicator diagram Tripping: Undervoltage tripping; Open-phase tripping;Voltage unbalance tripping; current unbalance tripping; Over-voltage/ over-current tripping;

  • Digital input & output: 3 DI; 2 DO

  • Power supply: AC: 85-265V; DC: 85-300V

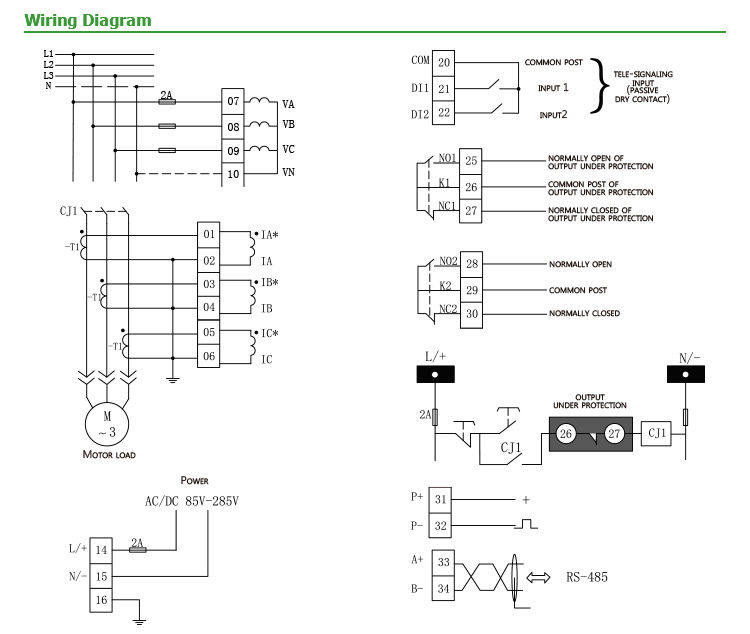

  • CT/PT connection

  • Display: LCD screen

  • Standard din rail installation

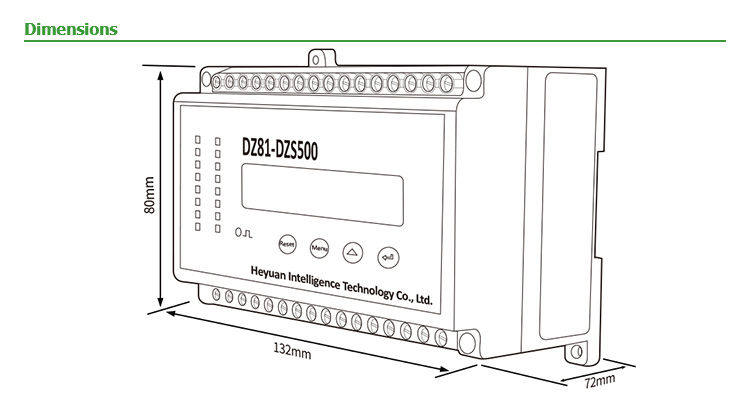

  • Dimensions: 132cm*80cm*72cm

Downloads












It is especially applied in oil fields and capable of metering all the electric parameters of oil extraction machines. It not only indicate diagram of current and power be drawn according to commands, but also motor protection function.
