Single Phase Din Rail Mounted Internal Control Energy Meter

Name: Single Phase Din Rail Mounted Internal Control Energy Meter
SKU: 0

DZS100

• High metering accuracy: Class B (Class 1) for active electrical energy

• Built-in high-capacity relay: Directly controls circuit switching

• Supports multiple control methods: power cutoff, malicious load detection, scheduled power switching, and forced power retention.

WhatsApp：+86 18063422204

Email：info@heyuanintel.com

Request A Demo

Download

Description

Structure

FAQ

The DZS100 single-phase DIN-rail-mounted electricity meter with internal control features high-precision metering, remote communication, and remote power switching capabilities. It is widely used in settings such as commercial plazas, residential complexes, apartment buildings, office buildings, and chain supermarkets, providing users with solutions for electricity fee collection and energy metering.

Technical parameter		DZS30	DZS100
Voltage	Reference voltage	3×220/380V	220V
	Reference frequency	50Hz	50Hz
	Consumption	<4VA(Each phase)
Current	Input current	10(80)A	10(60)A
	Starting current	Connect directly: 0.004 Ib, connect via CT: 0.002In
	Consumption	< 4 VA (Maximum current)
Measurement performance	Accuracy of measurement	0.5s Class	1 Class
Clock accuracy		Error ≤0.5s/d
Active pulse	Pulse width	80ms±20ms
	Pulse constant	6400imp/kWh,400 imp/kWh	1600imp/kWh
Communication	Interface	RS485(A+、B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

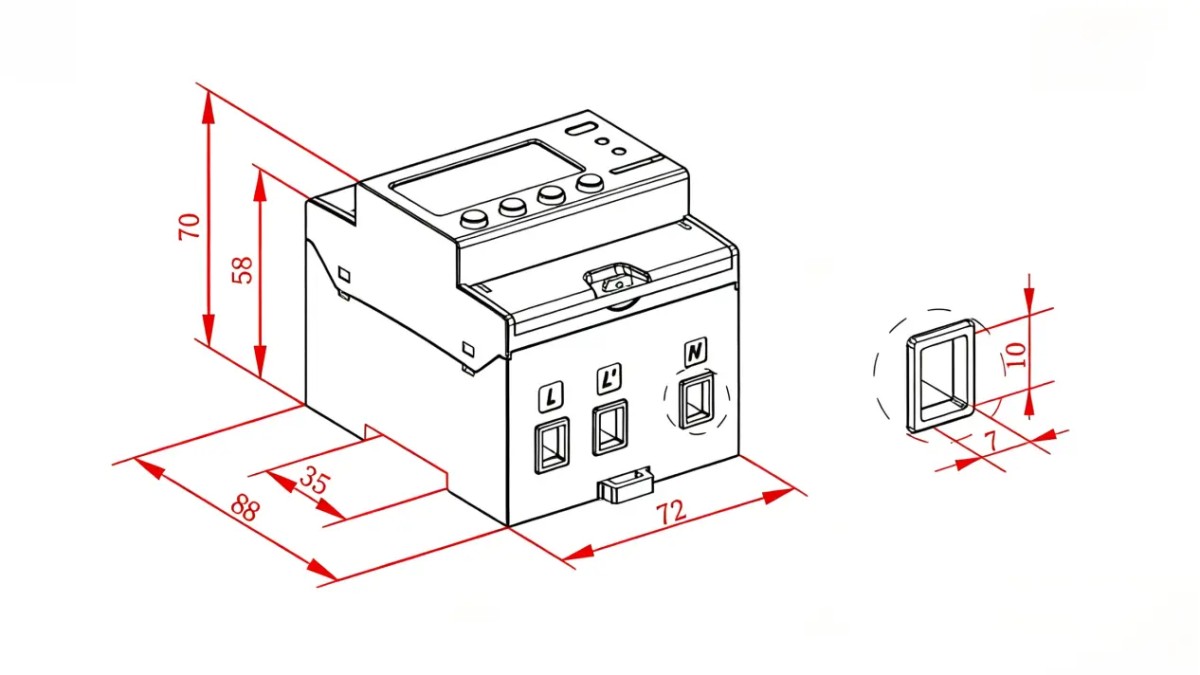

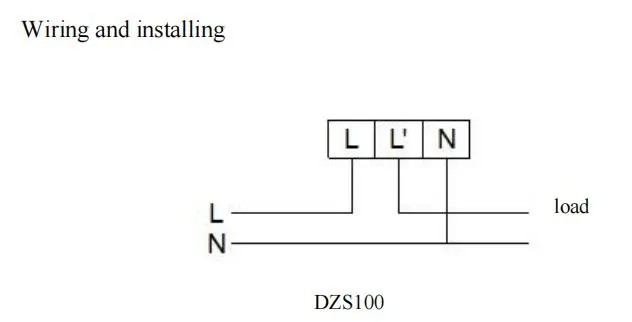

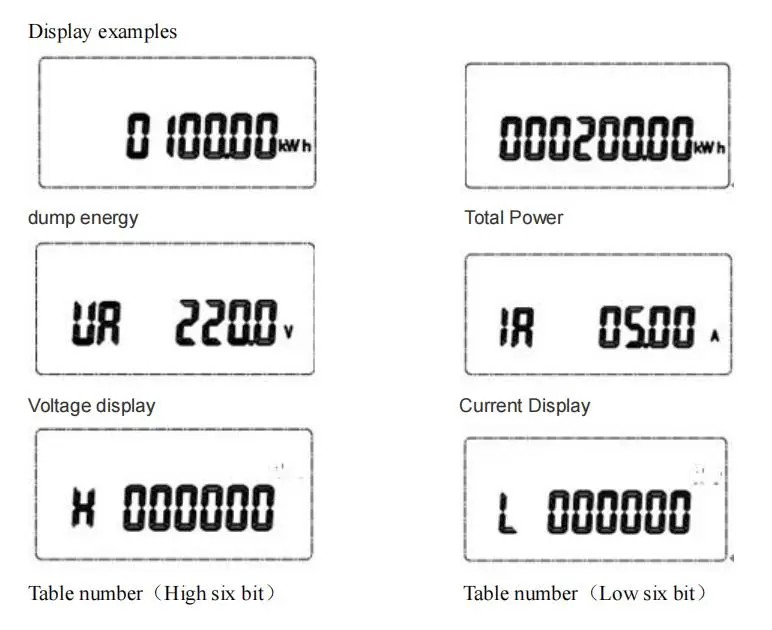

Outline (Length × Width ×Height)		144mm×88mm×70mm	72mm×88mm×70mm
Maximum wiring ability (flexible cable)		25m㎡
Temperature range		Work temperature: -25℃~55℃, Storage Temperature:-40℃~70℃
Relative humidity		≤95%）(No condensation), Altitude <2000m
