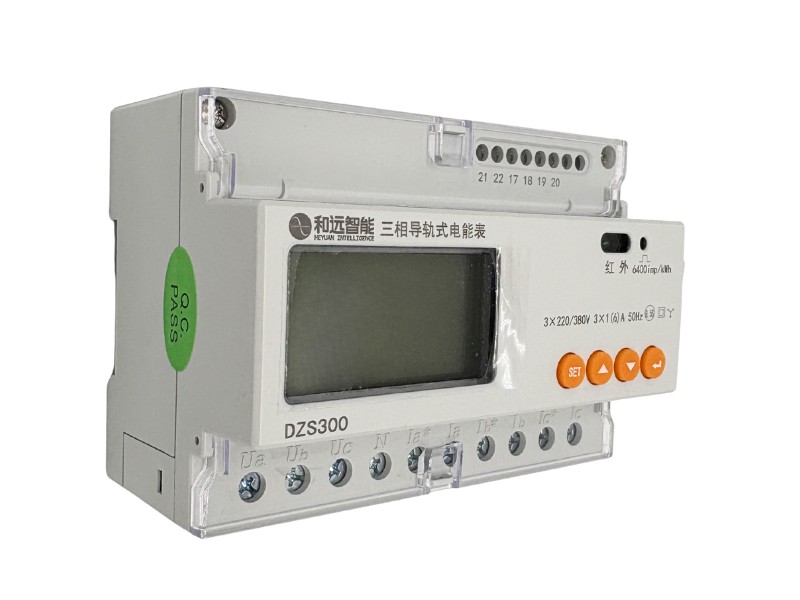

The transition toward modern, data-driven electrical infrastructures requires high-precision instrumentation that can handle today's complex energy environments. In industrial facilities, commercial buildings, and large-scale infrastructure projects, the demand for accurate, real-time energy reporting has made traditional metering options largely obsolete. Modern industrial operations require more than simple consumption tracking; they demand deep harmonic analysis, multidirectional metering, and seamless integration into automated control systems. As a prominent High Quality 3 Phase Power Meter Manufacturer, Heyuan Intelligent Technology Co., Ltd. addresses these demands by developing advanced instruments like the DZS300 series. These 3 Phase Power Meters combine high-accuracy measurement with robust digital communications to replace legacy metering hardware and improve data collection.

Understanding the differences between digital monitoring instruments and traditional analog or low-precision electronic meters requires analyzing how each handles modern electrical loads. This comparison outlines the core engineering distinctions, functional variations, and systemic advantages realized when migrating from legacy systems to advanced industrial power meters.

Measurement Precision vs Analogue Discrepancy

Traditional metering systems, particularly legacy induction meters or basic digital units, often fail to deliver the accuracy needed to optimize contemporary industrial grids. Legacy systems are susceptible to mechanical wear, temperature drift, and registration errors when measuring non-linear loads.

In contrast, modern intelligent instruments use advanced digital signal processing (DSP) to maintain accurate readings under varied operational conditions. The DZS300 series features an accuracy class of 0.2 for voltage and current measurements, alongside an active power accuracy class of 0.5S or 1. This level of precision allows facilities to pinpoint minor inefficiencies, balance phases accurately, and prevent billing discrepancies that often arise from less sophisticated hardware.

Beyond baseline power consumption, today’s industrial networks are heavily influenced by power quality issues, such as total harmonic distortion (THD). Traditional solutions typically record only fundamental frequencies, leaving facilities blind to the distortions created by variable speed drives, switching power supplies, and heavy machinery. The DZS300 mitigates this by providing built-in current and voltage harmonic analysis from the 2nd to the 31st order. Identifying these harmonics helps engineering teams mitigate overheating risks in transformers and neutral conductors before equipment damage occurs.

Data Integration vs Manual Collection

One of the largest operational challenges of legacy metering configurations is the lack of automated connectivity. Traditional setups require manual visual inspections or isolated pulse counting methods, both of which introduce human error and create significant delays in data availability. This latency prevents engineering teams from taking proactive measures during unexpected peak-demand periods or phase imbalances.

Modern multi-functional power meters overcome these limitations with integrated digital interfaces. Equipped with an RS485 communication port operating on the standard Modbus RTU protocol, the DZS300 supports configurable baud rates from 1200 bps up to 19200 bps. This communication architecture enables seamless integration into broader Supervisory Control and Data Acquisition (SCADA) infrastructures, building automation platforms, and localized intelligent gateways. Automated data transmission removes the need for physical inspections, giving operators immediate visibility into system performance and enabling rapid responses to changing grid dynamics.

Functional Capabilities and Parameters

A direct engineering comparison highlights the functional gap between legacy infrastructure and modern power management equipment:

l Comprehensive Parameter Tracking: Legacy solutions generally provide limited readouts, focusing primarily on total active energy (kWh). The DZS300 measures a full suite of electrical parameters across the three-phase network, including three-phase voltage, current, line voltage, frequency (45 to 65 Hz), active power, reactive power, apparent power, power factor, and bidirectional active/reactive energy metering.

l Flexible Input and Connection Frameworks: While traditional options often require specific external instrument transformers, modern units support flexible physical installations. The platform accommodates both 80A direct connection configurations and 5A current transformer (CT) setups, allowing it to adapt to low-voltage distribution panels as well as high-voltage sub-station monitoring environments.

l Multi-Tariff Structure and Memory: Legacy systems struggle to manage complex billing schedules. Modern intelligent alternatives feature multi-tariff capability paired with onboard data storage, allowing users to store and query the past 12 months of historical energy data directly from the device.

l Control and Automation Interface: In addition to measuring and communicating data, the system includes a dedicated digital output (1x DO) port alongside a standard pulse output. This configuration allows the meter to act as a responsive component within safety or load-shedding schemes, signaling external relay contactors when specific consumption or power thresholds are crossed.

Architectural Adaptability and Safety Features

Industrial and commercial facilities require hardware that can withstand harsh operating environments without sacrificing precision. Legacy instrumentation often demands customized panel cutouts and extensive wiring networks, which increases installation costs and potential points of failure.

Built for harsh environmental conditions, the platform operates reliably across a temperature range of -20°C to +55°C and altitudes up to 4,000 meters. Its power supply module accepts a wide input range (AC 85–265V or DC 85–300V) while maintaining internal power consumption below 3W, protecting the device against grid fluctuations. Designed for standard 35mm DIN rail mounting, these meters simplify installation in both new distribution systems and retrofitted legacy panels.

This focus on adaptability reflects the broader engineering standards of Heyuan Intelligence. As an established leader in the national high-tech sector, the company develops technologies centered on energy management and electrical safety. By providing a diverse product catalog that includes digital power meters, wireless data transmission modules, intelligent gateways, remote terminal units (RTUs), and smart energy management systems, the organization delivers cohesive hardware ecosystems tailored to global industrial demands.

Operational Applications

Modern high-performance power meters are used across a wide variety of industrial and commercial applications. In multi-tenant commercial real estate and industrial parks, these instruments form the core of intelligent multi-tenant, multi-tariff energy metering and billing systems. By tracking peak and off-peak consumption periods over RS485 networks, property managers can implement precise, automated billing systems that reflect actual demand patterns.

Within manufacturing plants and heavy industries, these meters are critical components of comprehensive energy management systems. Tracking active, reactive, and bidirectional energy allows engineering teams to identify underutilized machinery, correct poor power factors, and avoid peak-demand surcharges from utilities. The compact DIN rail form factor and extensive protocol compatibility also make them well-suited for integration into modern distribution boards, data center power strips, and renewable energy monitoring enclosures. This provides operators with the visibility needed to maintain safe and efficient electrical networks.
