Heyuan LoRaWAN Testing Report（Distance, signal, Packet loss）

Testing Introduction

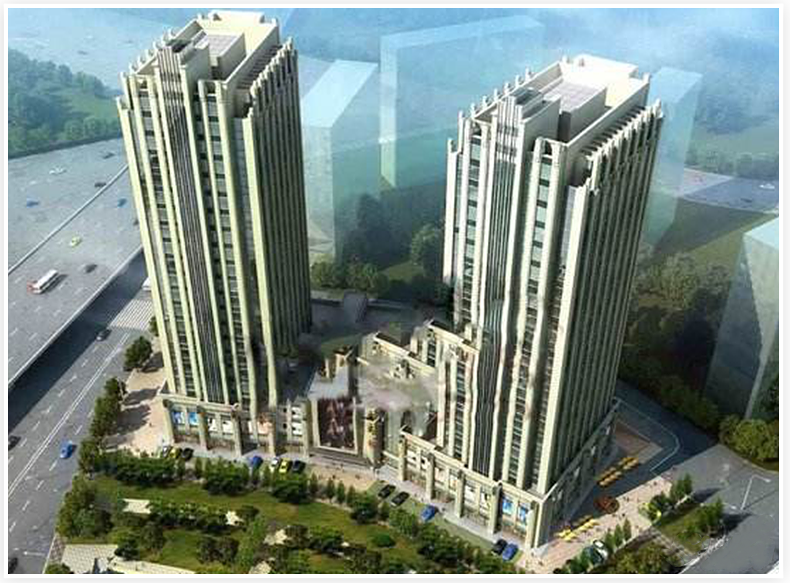

Test project location: Jinan In-zone HOPSCA

Test purpose: meet the requirements of infinite acquisition control in the project, comprehensive test of LoRaWAN communication distance, signal, and packet loss for the actual situation in the site.

Project requirements: networking test for two buildings with distance of 80 meters. The height is 21 floors. There are measuring points on each floor. And the starting floor is -1 floor.

Test specific drawing analysis

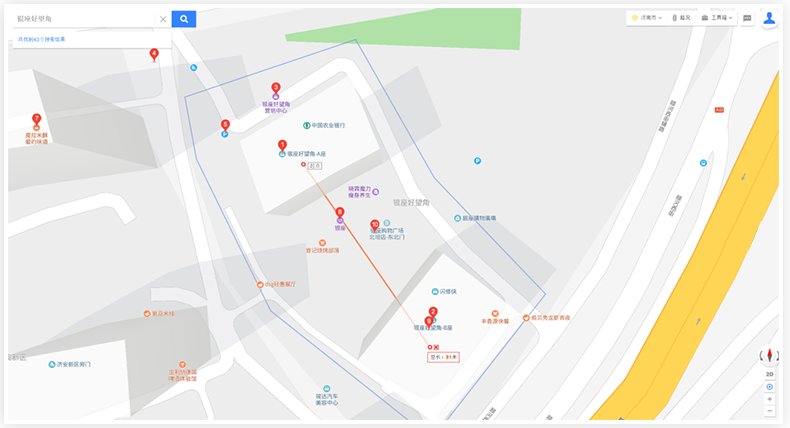

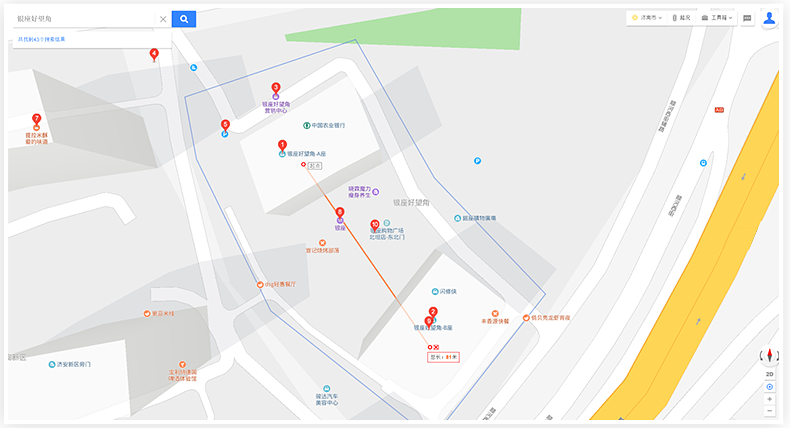

The gateway locates at 21th Floor. The distance between the two buildings is 81 meters.

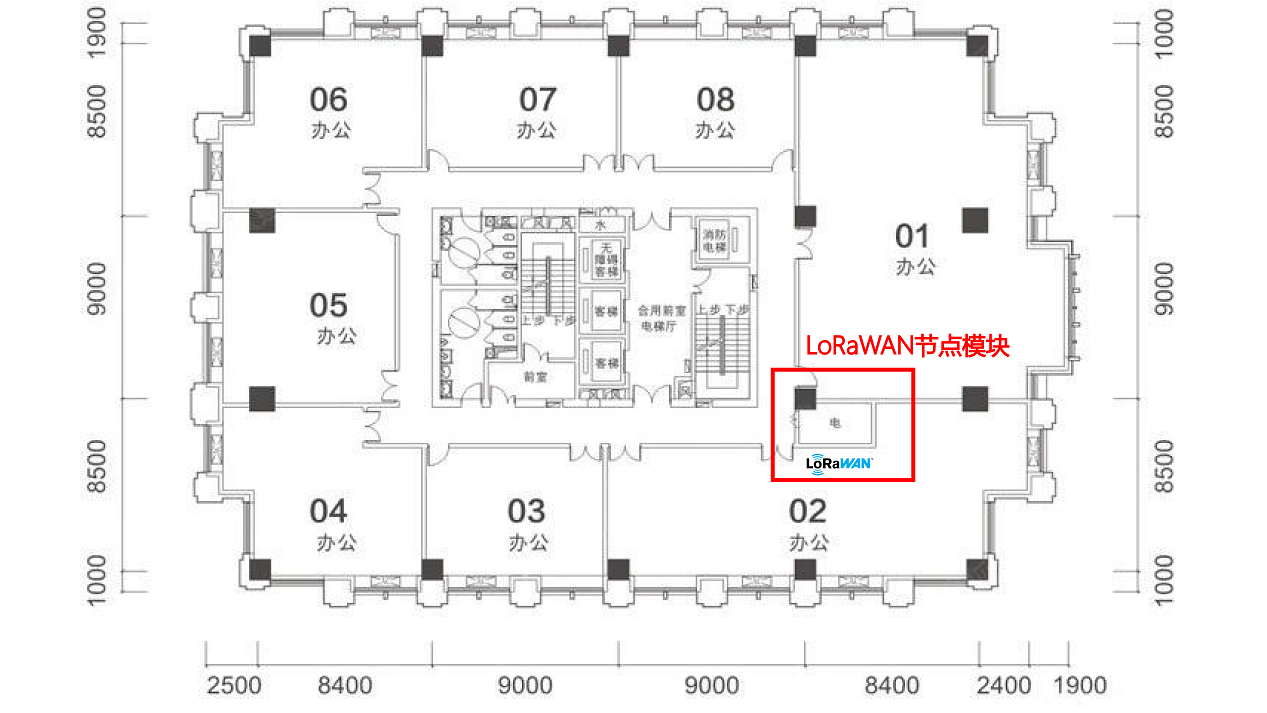

LoRaWAN node module installation location is shown in the below picture.

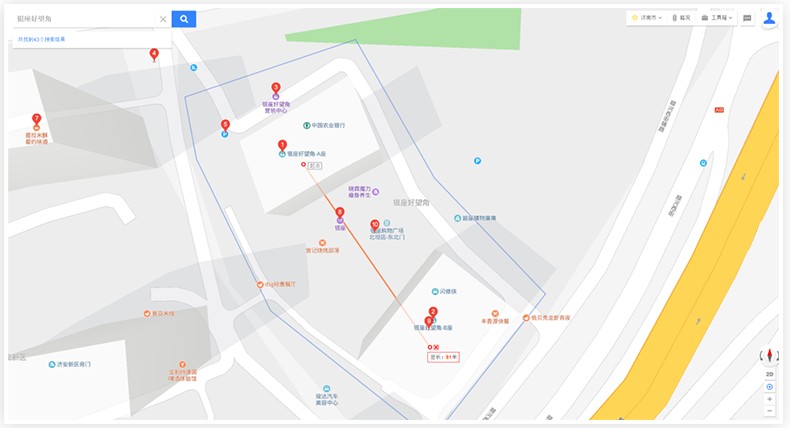

Jinan In-zone HOPSCA floor plan

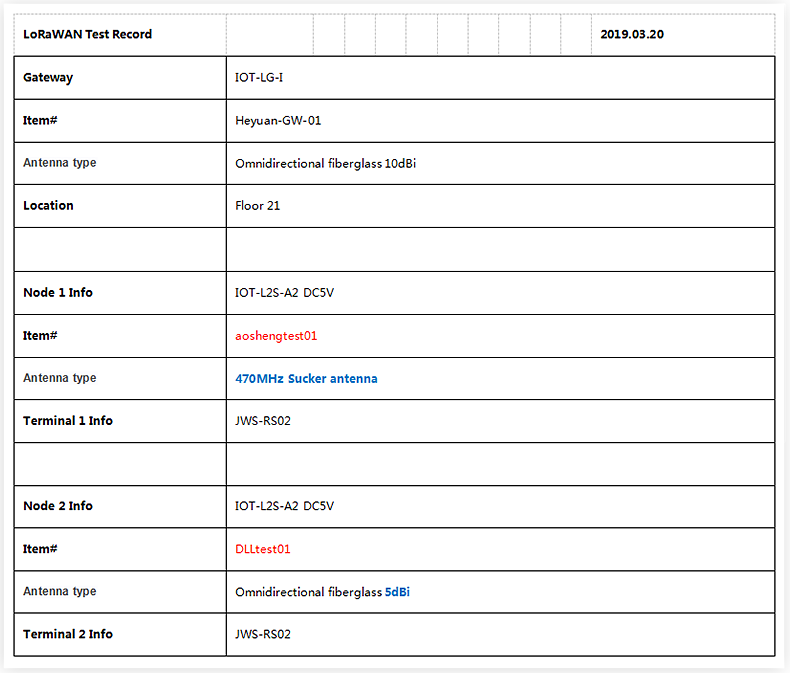

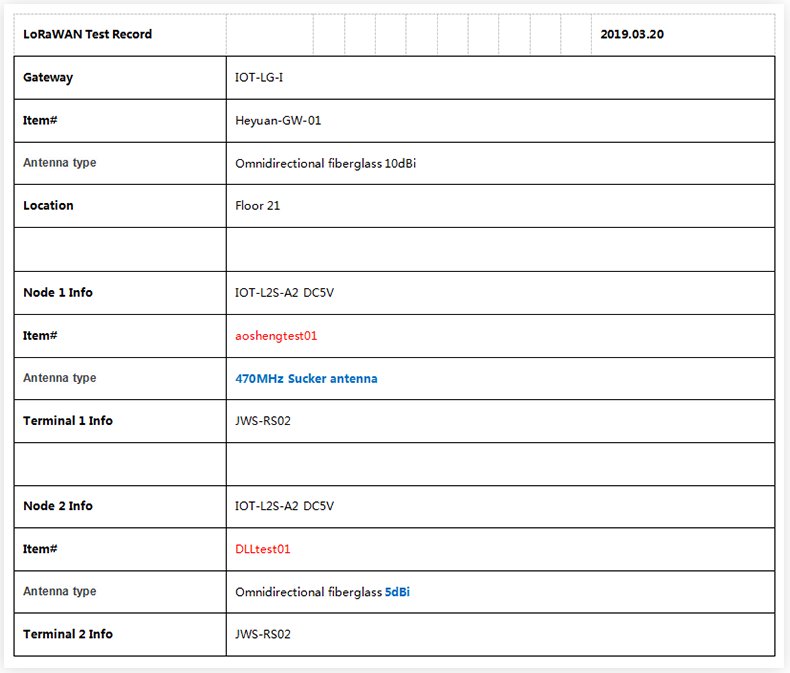

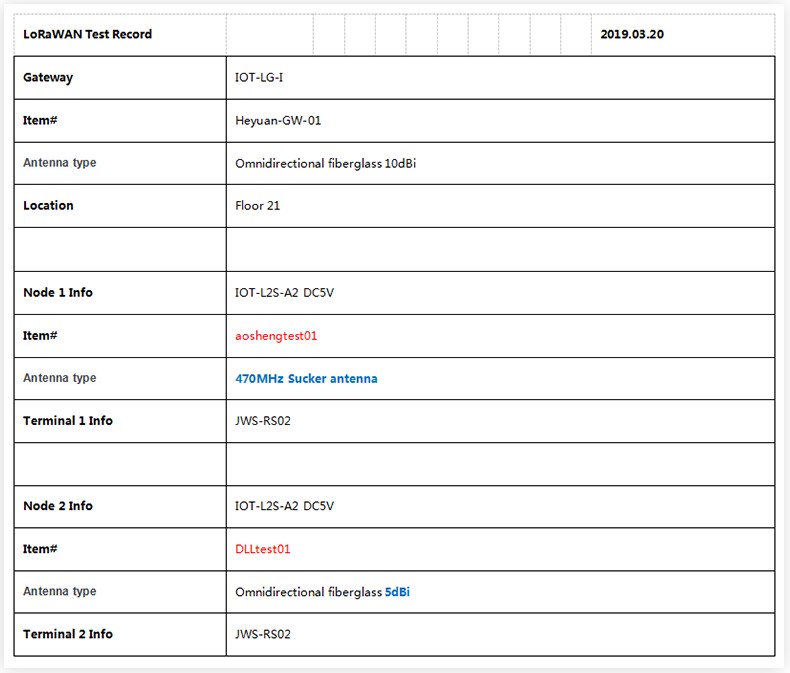

Test report output

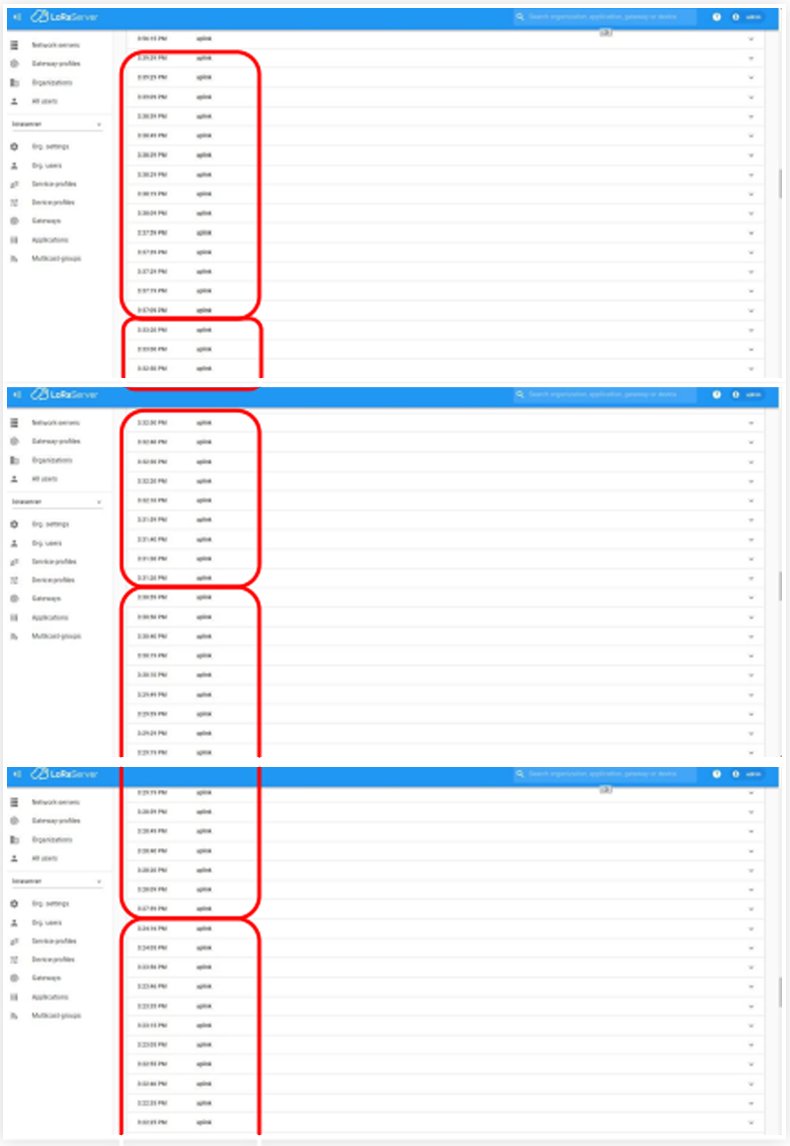

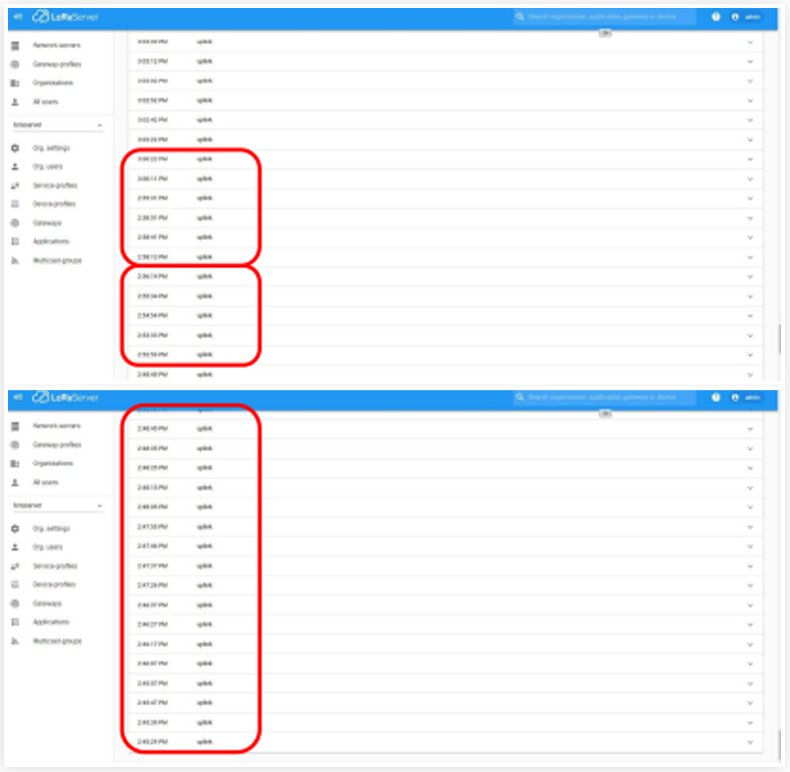

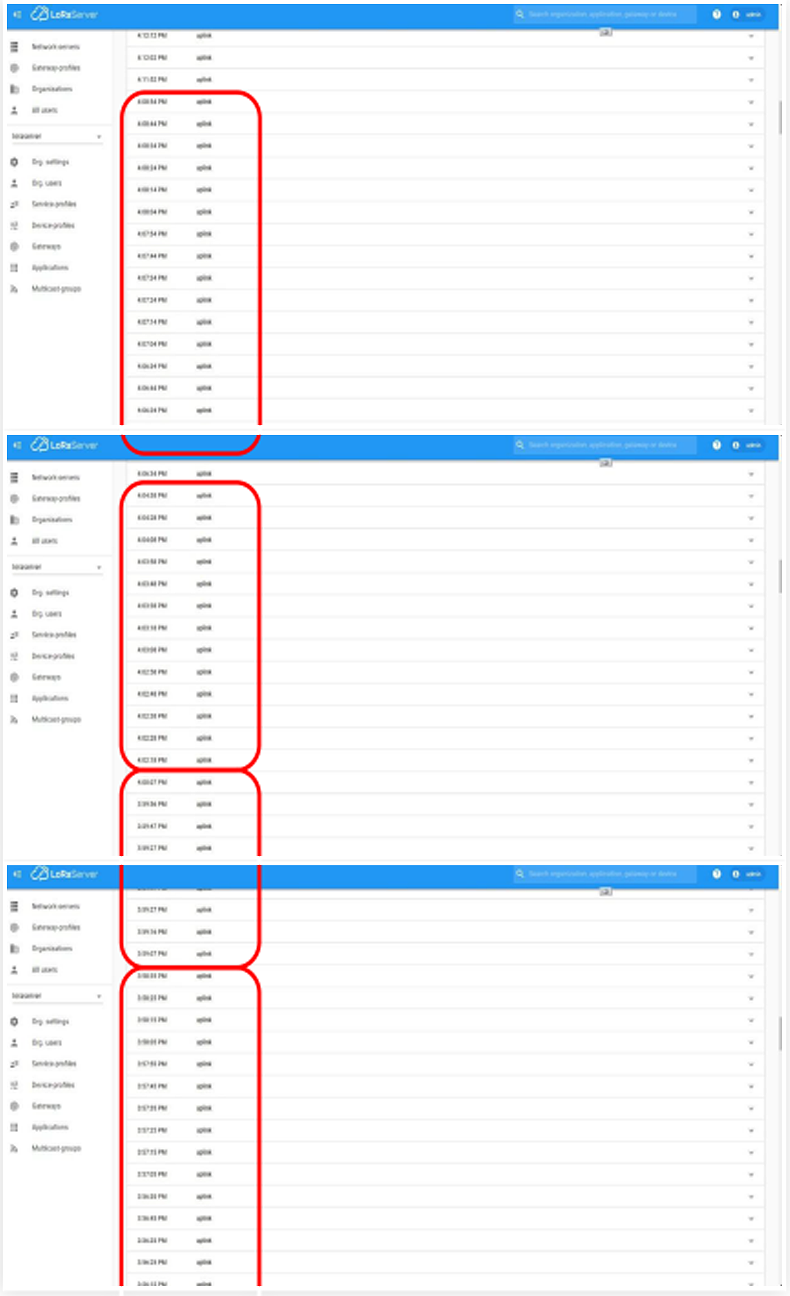

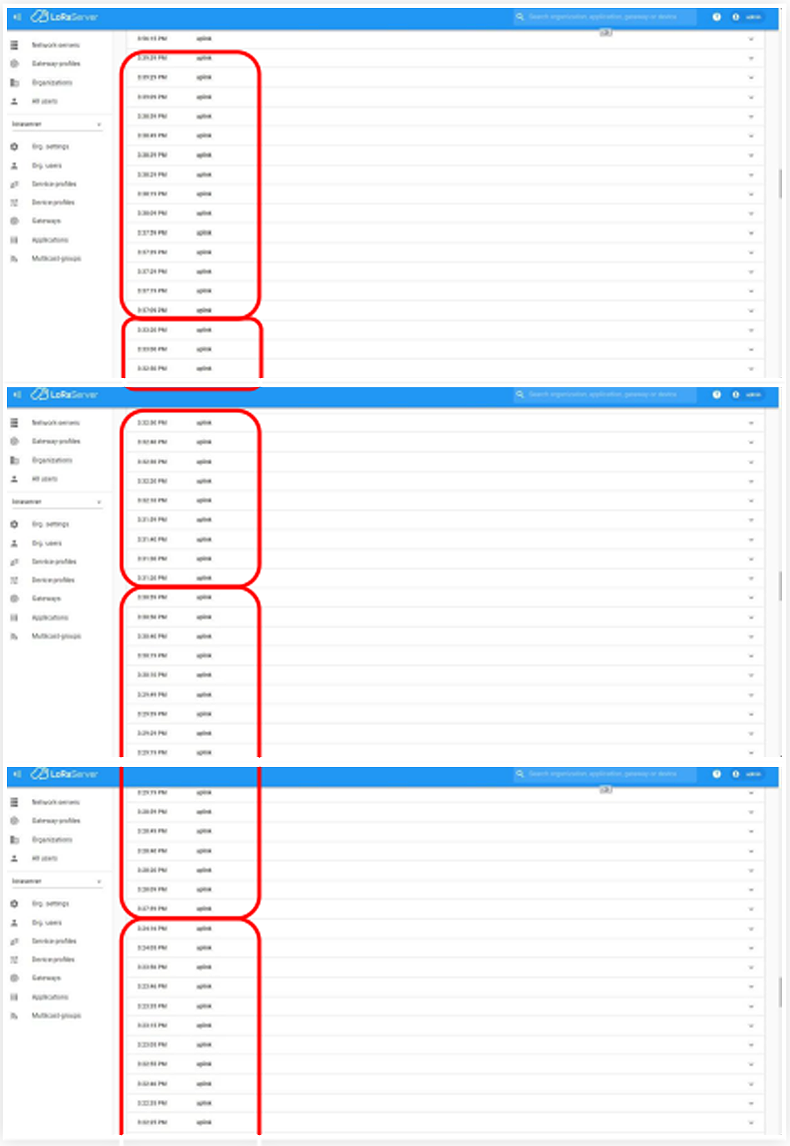

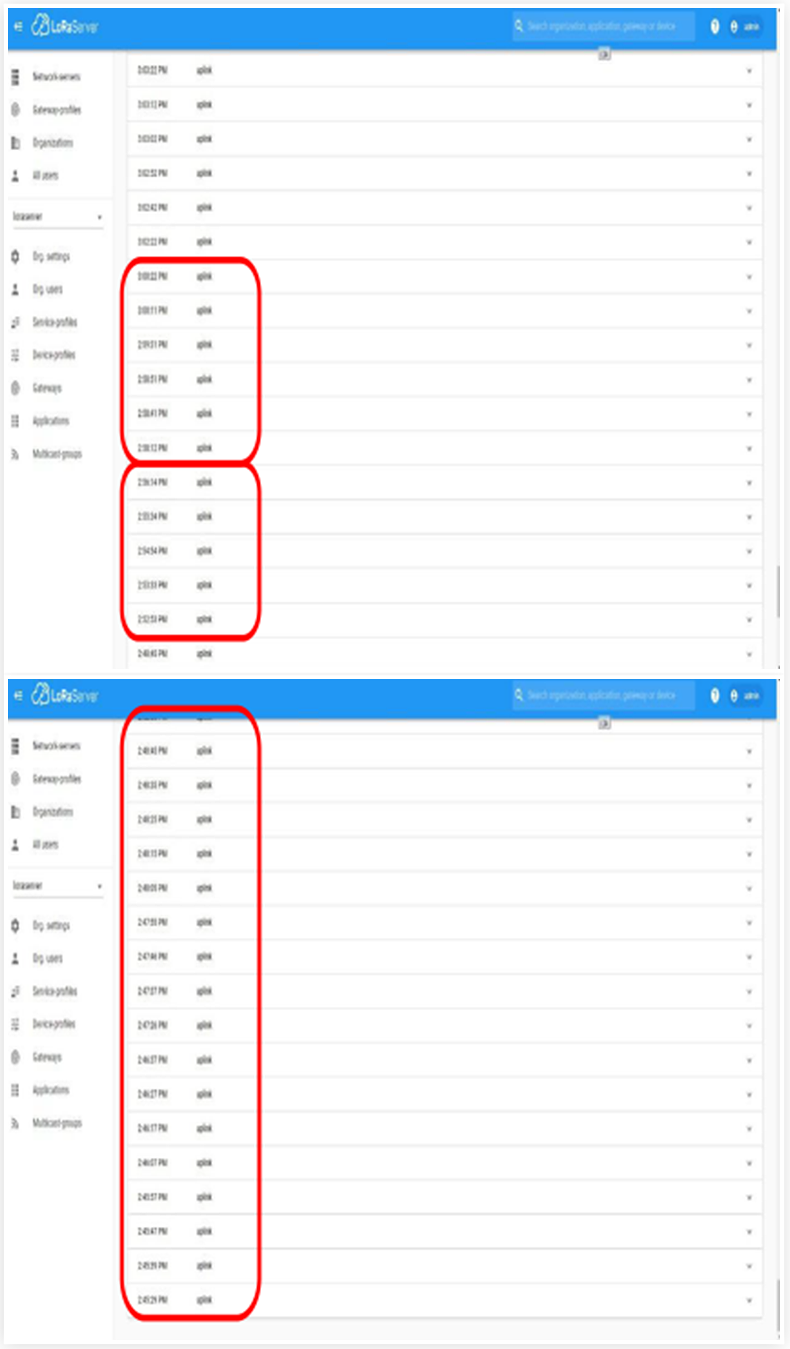

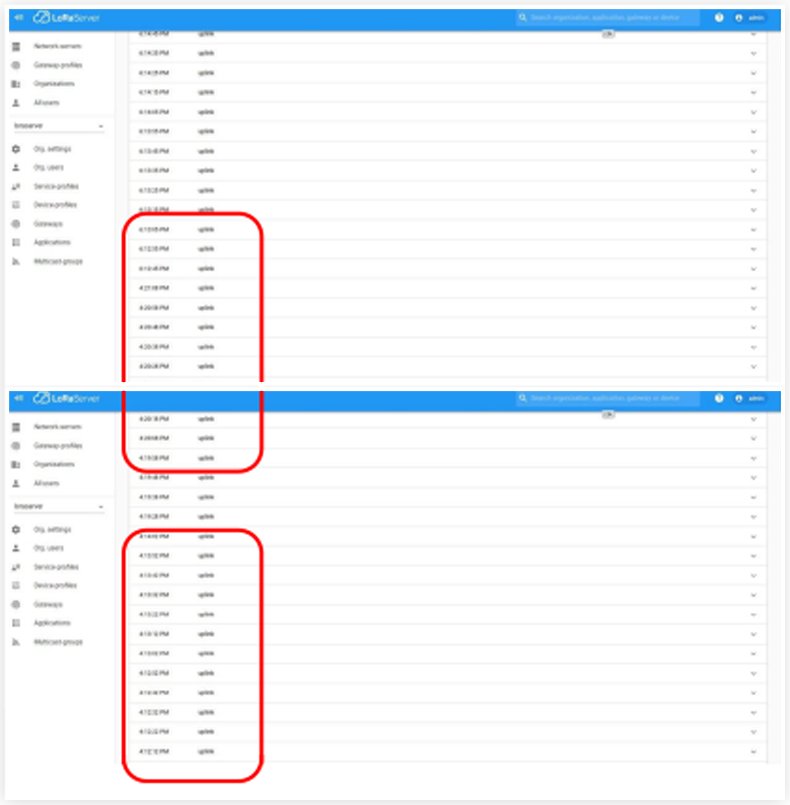

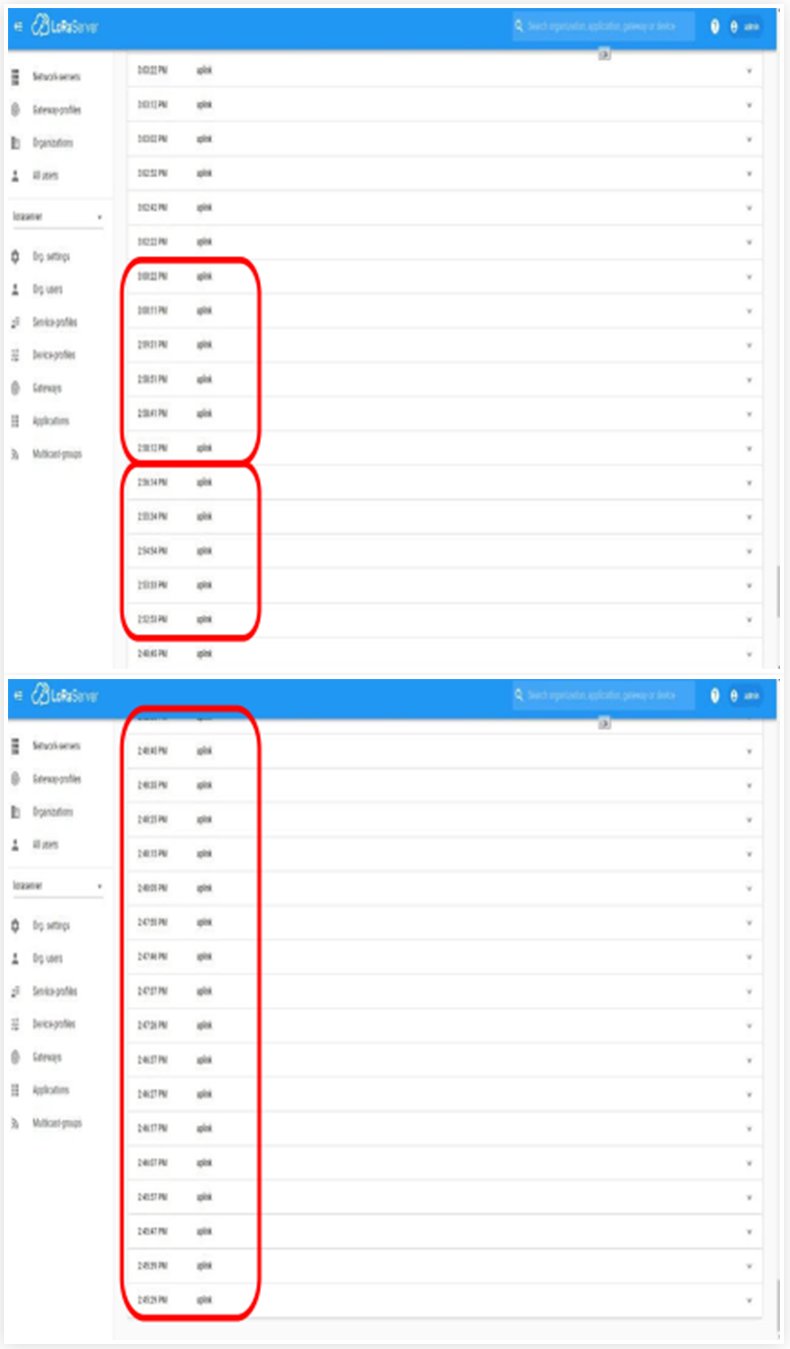

Node 1 and node 2 modules are set to upload data once every 10s.

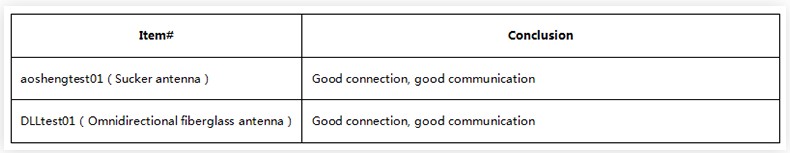

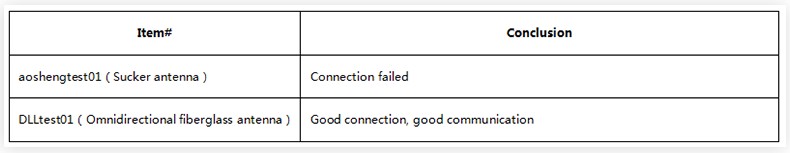

Conclusion

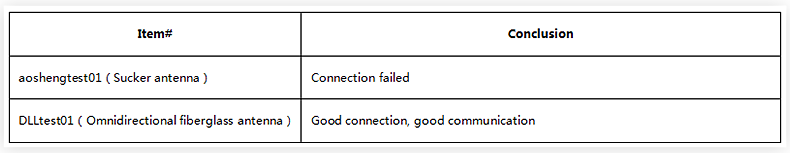

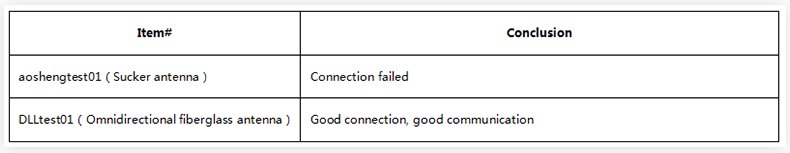

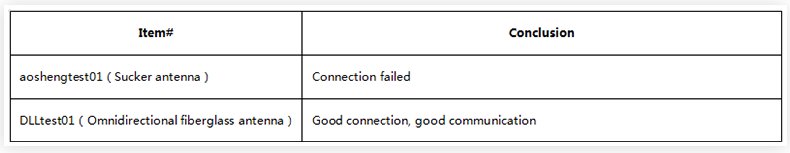

Through comparison, the module and the gateway use omnidirectional fiberglass antenna make better communication and the building 1# and 2# floor distribution rooms’ communication normal and data interruption less.

Placing the LoRaWAN gateway in the middle of the building (Floor 10), the communication effect will be better.

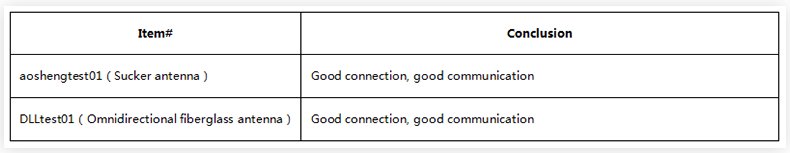

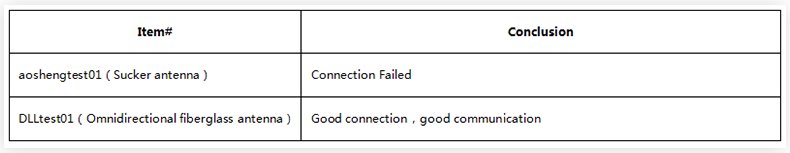

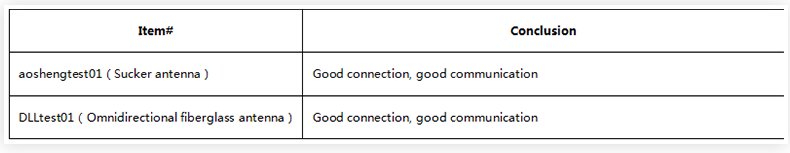

Location 1：Building 1#, power distribution room

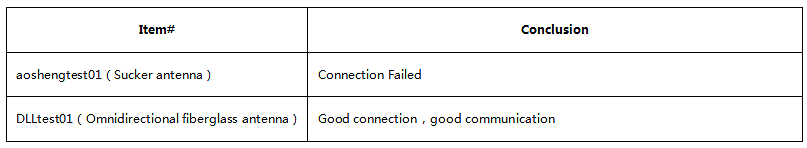

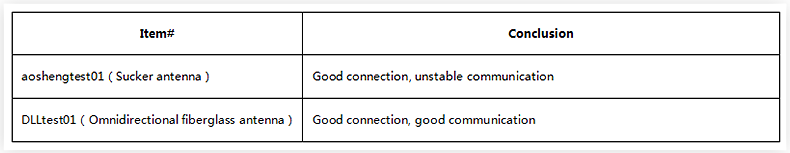

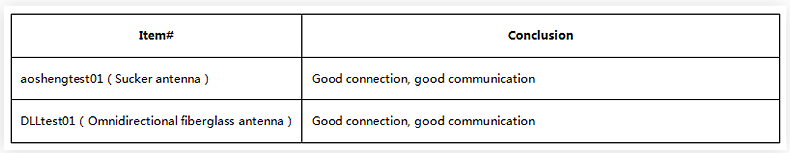

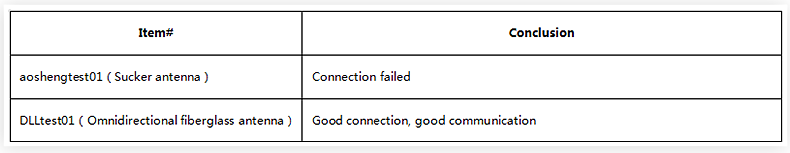

Location 2：Building 1#, 2nd Floor，Stairs

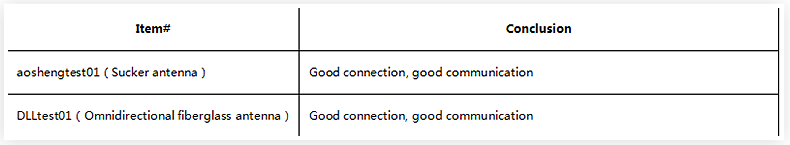

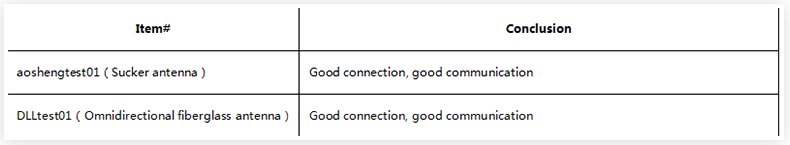

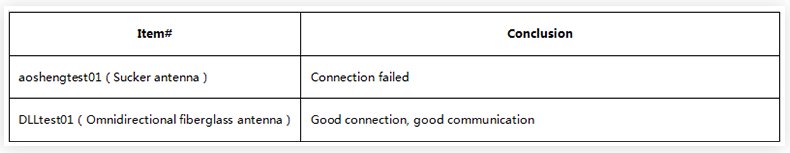

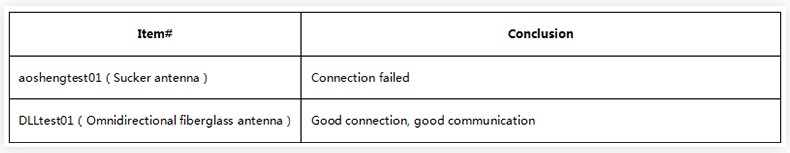

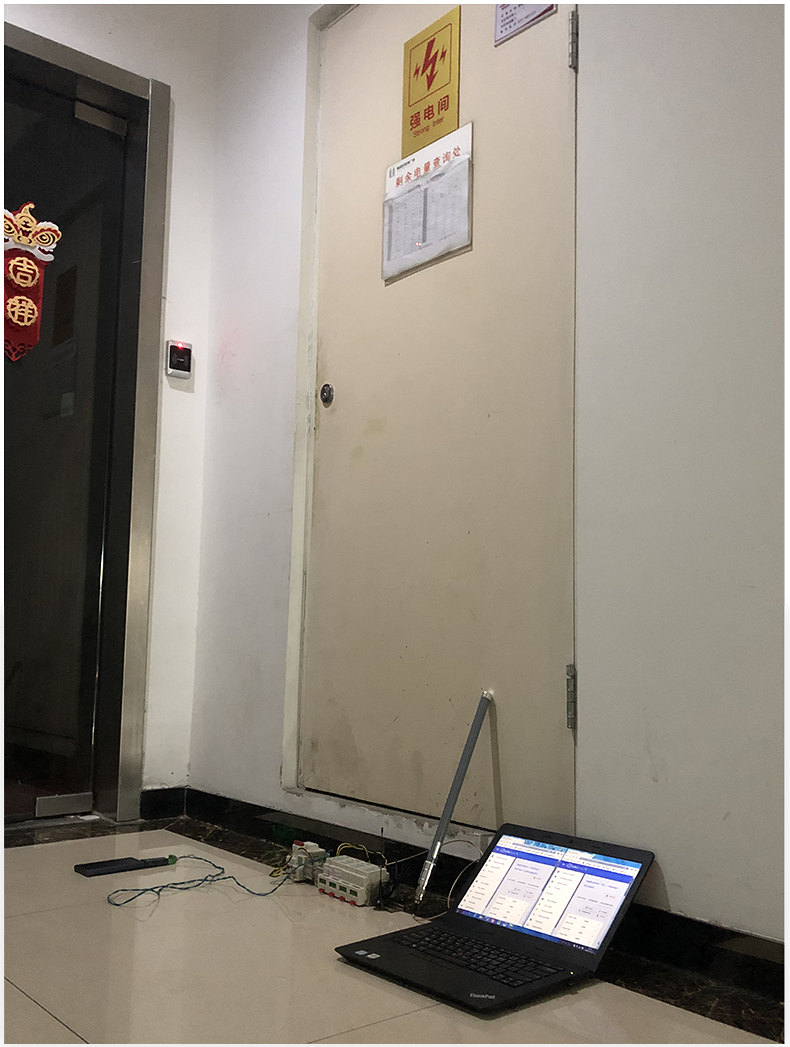

Location 3：Building 1#,4th Floor，power distribution room door

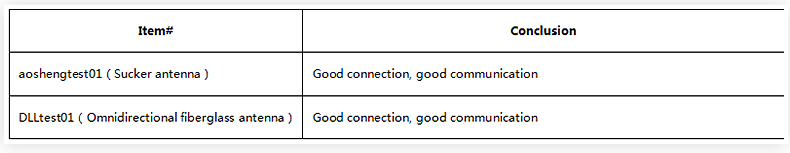

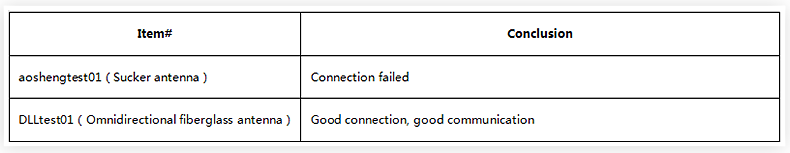

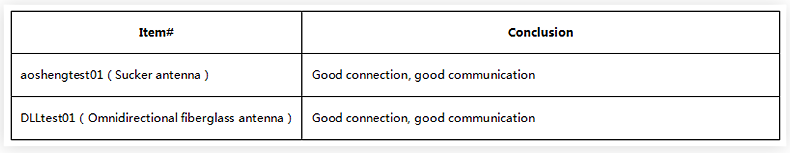

Location 4：Building 1, 5th Floor, power distribution room door

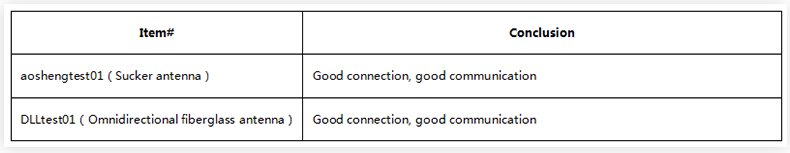

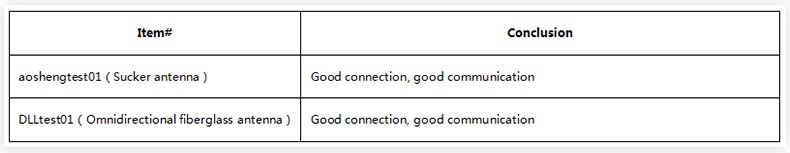

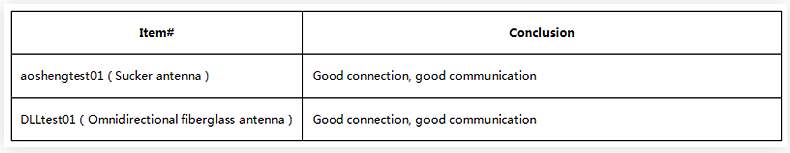

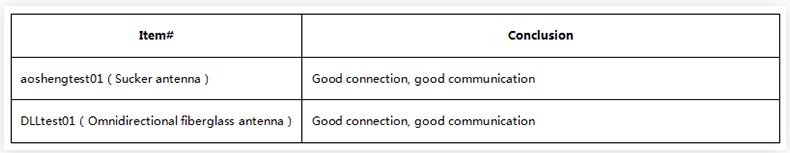

Location 5：Building 1#, 7th Floor，power distribution room door

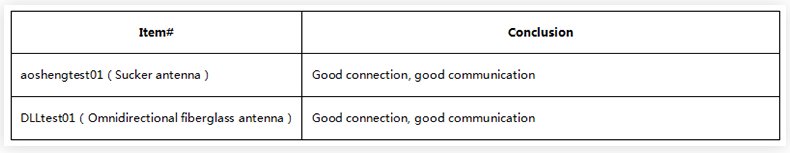

Location 6：Building 1#, 9th Floor，power distribution room door

Location 7：In-Zone Plaza Door

Location 8：Building 2#, 1st Floor，power distribution room door

Location 9：Building 2, 3th Floor，power distribution room door

Location 10：Building 2#, 5th Floor, power distribution room door

Location 11：Building 2#, 7th Floor, power distribution room door

Location 12：Building 2#, 9th Floor, power distribution room door

Location 13：Building 2#, 15th Floor, power distribution room door

Location 14：Building 2#, 20th Floor, power distribution room door

Omnidirectional fiberglass antenna

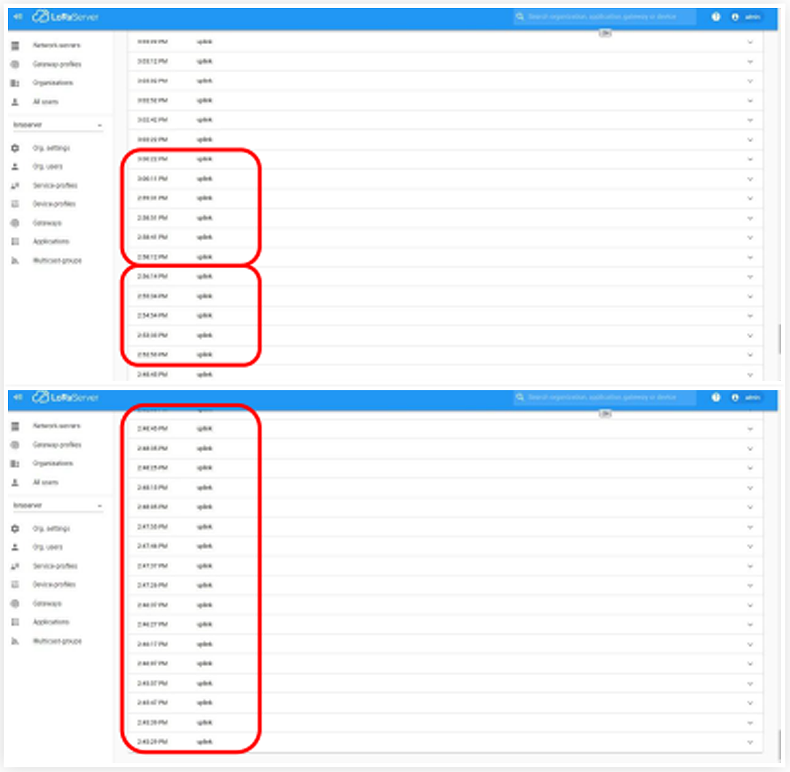

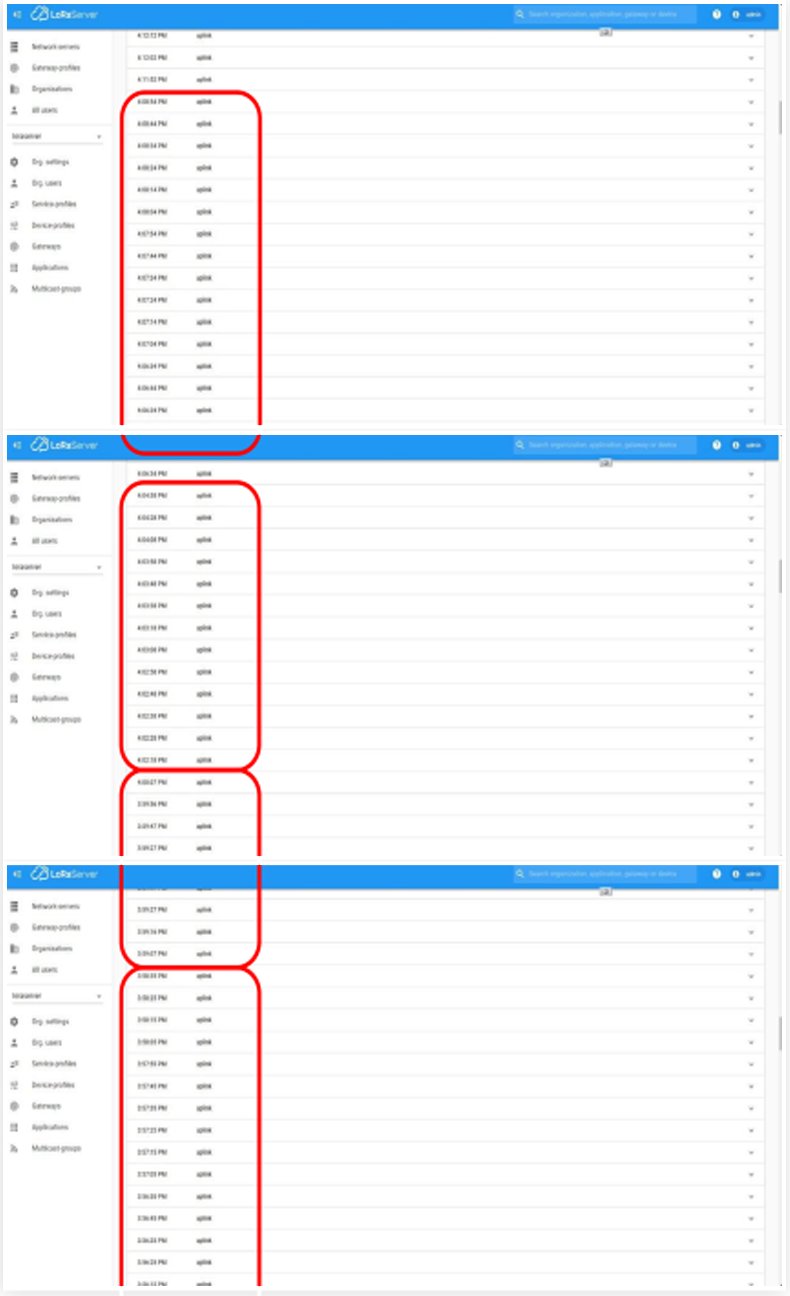

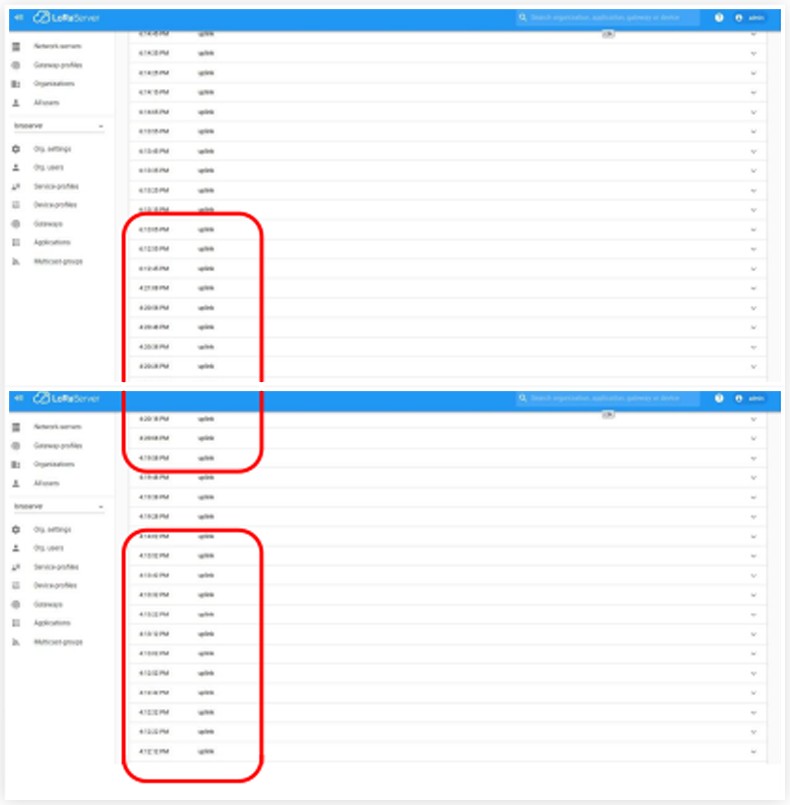

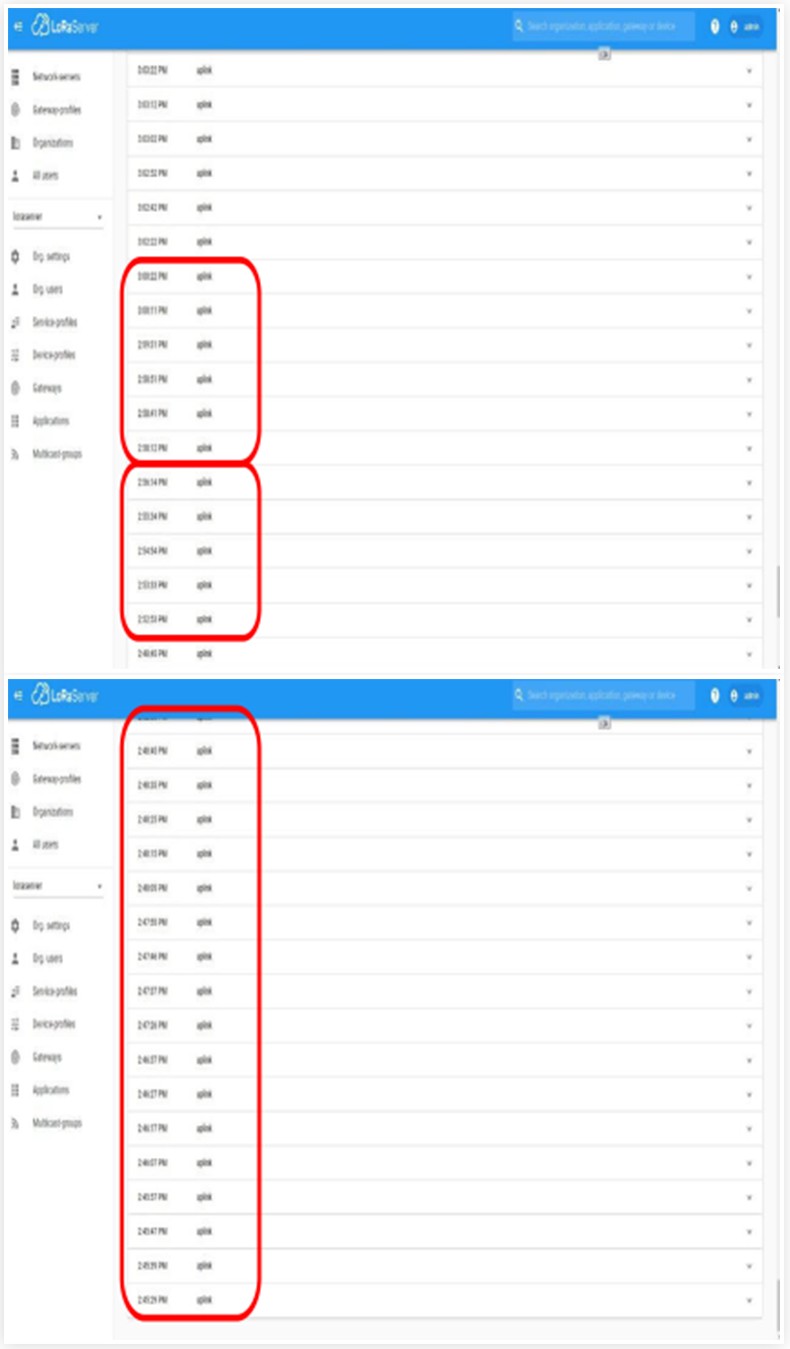

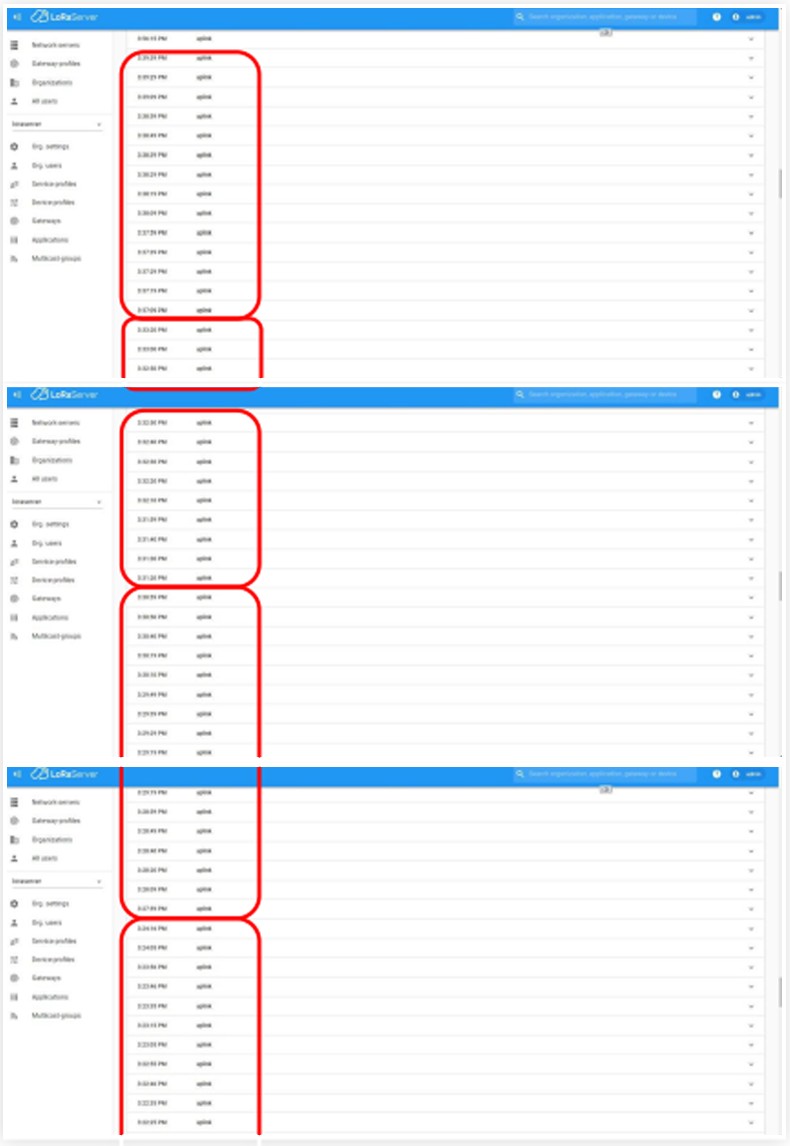

data
