Thermal Sensor Module Introduction

2019-08-26

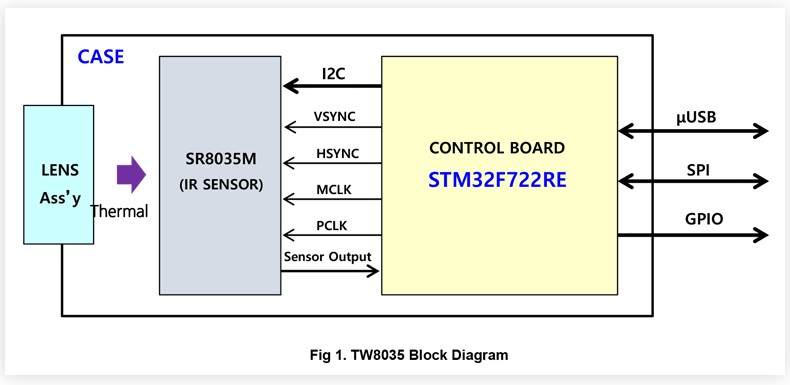

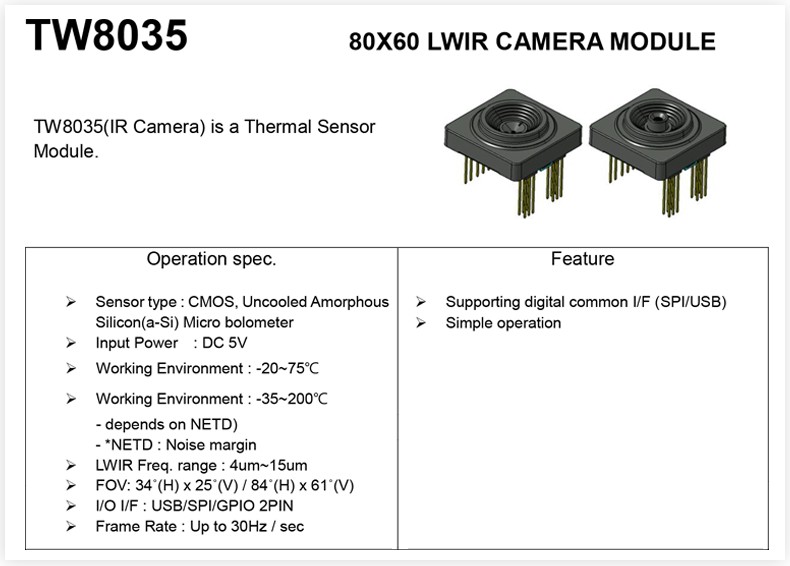

TW8035composes of Sensor, Lens and thermal Data processing. TW8035 has SPI, USB.. The data includes Temp., Image data.

20190826151232966.png@!w400


20190826151328759.png@!w400




20190826151411767.png@!w400


20190826151429178.png@!w400
