As smart buildings evolve from connecting a small number of devices to deploying massive numbers of sensors, the traditional building IoT, which relies primarily on wired connections, is facing challenges such as high cabling costs, expansion difficulties, and long construction cycles. LoRaWAN, with its low power consumption, wide coverage, strong penetration capabilities, and open ecosystem, provides an important wireless sensing connectivity path for both existing buildings and new projects.

In the future, LoRaWAN will not replace technologies such as BACnet, KNX, Modbus, Wi-Fi, and Bluetooth, but is more likely to serve as a "supplementary connectivity layer," working together with existing building digital infrastructure to form a multi-protocol converged smart building network.

Smart buildings are entering the "massive sensing" stage, and connectivity is being redefined

In the past, discussions about smart buildings often focused on core systems such as building automation, central air conditioning, lighting, security, elevators, and energy management. These systems are characterized by a relatively limited number of devices, high real-time requirements, and stringent operational stability requirements, thus relying primarily on wired communication for a long time. However, with the further advancement of building digitalization, the objects connected to smart buildings are changing.

Future buildings will need to sense not only chillers, air conditioning units, and lighting controllers, but also the status of a vast amount of environmental and equipment conditions in offices, meeting rooms, restrooms, underground parking garages, utility shafts, machine rooms, storage spaces, and the building's perimeter. Data such as CO₂, temperature and humidity, PM2.5, leaks, door and window status, occupancy, energy consumption, equipment vibration, and asset location are all likely to become important data sources for the digital operation of buildings. This means that the Internet of Things (IoT) in buildings is shifting from "connecting a small number of key devices" to "massive end-point sensing."

If all sensors are connected via traditional wired connections, it will inevitably lead to a large amount of cabling, cable trays, conduits, and construction work. This is especially true in existing building renovation projects, where issues such as opening walls, running pipes, and business shutdowns for construction will significantly increase project costs. Therefore, the future of smart buildings is not simply about "adding more cables," but rather about rethinking how different devices should be connected.

From this perspective, wireless IoT is becoming an important component of smart building infrastructure. Data from the LoRa Alliance shows that by the end of 2025, the number of LoRaWAN devices deployed globally will exceed 125 million, and smart building and facility management has become one of its fastest-growing application areas.

The core value of LoRaWAN: Born for "low power consumption + wide coverage + massive nodes"

LoRaWAN is essentially a low-power wide-area network (LPWAN) protocol for the Internet of Things (IoT). Its network typically adopts a "star within a star" architecture, consisting of terminal devices, gateways, network servers, and application platforms. Terminals connect to the gateway wirelessly and then access the backend system via the IP network.

For smart buildings, the most valuable aspect of LoRaWAN is not its pursuit of high speed, but rather its ability to solve three problems that traditional wireless technologies struggle to address simultaneously: coverage, terminal power consumption, and deployment scale.

Many building sensors do not require continuous transmission of high-definition video or large-scale data; they typically only need to periodically report small data points such as temperature, humidity, air quality, energy consumption, and on/off status. Therefore, low data volume, high reliability, and low power consumption are more important than high bandwidth.

Especially for sensors installed in manholes, ceilings, equipment rooms, underground spaces, storage areas, and the perimeter of high-rise buildings, battery power can significantly reduce the difficulty of wiring and power supply construction, thereby lowering the deployment threshold and subsequent maintenance costs.

The value of LoRaWAN therefore lies not in "replacing all building networks," but in providing a new way to connect sensors that were previously impossible to deploy due to difficulties and high costs in wiring.

From air quality to energy management, LoRaWAN is expanding the boundaries of building applications.

As smart buildings shift from automation to sophisticated operations, LoRaWAN can cover a wide range of non-critical control-oriented IoT applications.

1. Indoor Environment and Air Quality Monitoring

Sensors for CO₂, temperature and humidity, PM2.5, and VOCs can be deployed in spaces such as offices, meeting rooms, classrooms, and hotel rooms, continuously aggregating data to a BMS or energy management platform. This data is not only used for environmental monitoring but can also be linked with systems such as fresh air systems and air conditioning. For example, when the density of people in a meeting room increases and the CO₂ concentration rises, the system can dynamically adjust the fresh air volume, shifting from "fixed-time operation" to "on-demand control."

2. Leakage, Gas Supply, and Equipment Anomaly Monitoring

Leakage sensors can be deployed in locations where traditional cabling is difficult, such as computer rooms, bathrooms, water supply and drainage manholes, and air conditioning rooms. For commercial complexes, hotels, data centers, and high-end residences, early detection of leaks is often more economical than post-incident repairs. A similar approach can be applied to monitoring equipment vibration, temperature anomalies, and mechanical condition, providing a data foundation for predictive maintenance.

3. Energy Metering and Sub-metering Management

Wireless smart meters, water meters, heat meters, and various sub-metering devices can be connected to the energy management platform via LoRaWAN, helping buildings establish a more granular energy data system. This is especially important for older buildings. Many buildings do have energy management needs, but lack sufficient end-metering points. LoRaWAN can fill these "data blind spots" at a relatively low retrofit cost.

4. Space Occupancy and Intelligent Operation

Data such as personnel presence, room occupancy rate, and parking space status can be linked with systems such as lighting, air conditioning, and access control. For example, when a meeting room is unused for an extended period, the air conditioning and lighting operation levels can be automatically reduced; when the personnel density in a certain area continues to decline, the HVAC operation strategy can be adjusted. This allows building energy conservation to move from "equipment energy conservation" to "dynamic energy conservation based on actual usage needs."

5. Asset Tracking and Facility Operation & Maintenance

For hospitals, airports, industrial parks, hotels, and large commercial complexes, a large number of equipment, carts, tools, and mobile assets are in constantly changing locations. By combining LoRaWAN with other positioning technologies, a low-cost asset status and location management system can be established. Therefore, the application boundaries of LoRaWAN are gradually expanding from traditional "sensor networking" to building operations and facility management.

LoRaWAN's true competitive advantage lies in its ability to integrate into existing BMS systems

For the building automation industry, a key question is: Can LoRaWAN be integrated into existing building automation systems? The answer is yes, but its positioning must be correctly understood.

LoRaWAN is not a replacement for BACnet, KNX, or Modbus. BACnet, KNX, and Modbus handle different levels of device communication and system integration, while LoRaWAN is better suited for handling large-scale wireless edge data acquisition tasks.

A typical architecture can be: LoRaWAN sensor → LoRaWAN gateway → edge computing/protocol conversion → BACnet/IP, Modbus TCP, MQTT, etc. → BMS/EMS/IoT platform. The significance of this architecture is that the building's existing BMS does not need to be demolished and rebuilt; instead, new sensing nodes are added through the wireless network.

Currently, the LoRaWAN ecosystem supports integration with building automation environments such as BACnet, KNX, and Modbus, and related solutions are beginning to penetrate mainstream building integration platforms like Niagara. In 2026, some vendors launched direct integration drivers for LoRaWAN and Tridium Niagara, enabling wireless IoT sensors to enter the building management environment as standardized data points.

This is of great significance for the renovation of existing buildings. The mainstream model for future intelligent building renovations is likely not a complete replacement, but rather the retention of the original BMS core control system while continuously supplementing it with new sensing data points through wireless IoT.

LoRaWAN is not a replacement for Wi-Fi, Bluetooth, and 5G, but rather a synergistic one

It's important to note that there's no single, all-encompassing approach to smart building wireless networks. Wi-Fi is suitable for high-bandwidth data and personnel access; Bluetooth is ideal for short-range device connections, beacon technology, and positioning; 5G is suitable for mobile communication and highly reliable connections; and LoRaWAN is better suited for low-power, low-data-volume, and wide-coverage sensor networks.

Therefore, future smart buildings are more likely to adopt a "multi-wireless convergence" architecture: Wi-Fi handles high-speed connectivity, 5G handles mobile and wide-area connectivity, Bluetooth handles short-range connectivity and positioning, and LoRaWAN handles massive, low-power sensing.

This multi-technology collaborative model also means that building network design will gradually shift from "communication protocol selection" to "business-demand-driven connectivity architecture design."

Under this trend, LoRaWAN, Wi-Fi, Bluetooth, 5G, and technologies such as BACnet, KNX, and Modbus will coexist for a long time and will be further integrated through edge computing, open protocols, and AI platforms. For architectural design institutes, system integrators, BMS vendors, and property operators, the focus in the future will no longer be just "which communication technology to choose," but rather how to establish a future-oriented, multi-technology integrated, low-cost scalable, and continuously operational building connectivity architecture.

Connecting Existing RS485 Devices to LoRaWAN

One of the challenges in smart building projects is that many existing meters, sensors, controllers, and industrial devices already communicate through RS485. Replacing these wired devices simply because a building is adopting LoRaWAN can be unnecessary and expensive. A more practical approach is to connect existing RS485 devices to a LoRaWAN network through an RS485 to LoRaWAN data converter.

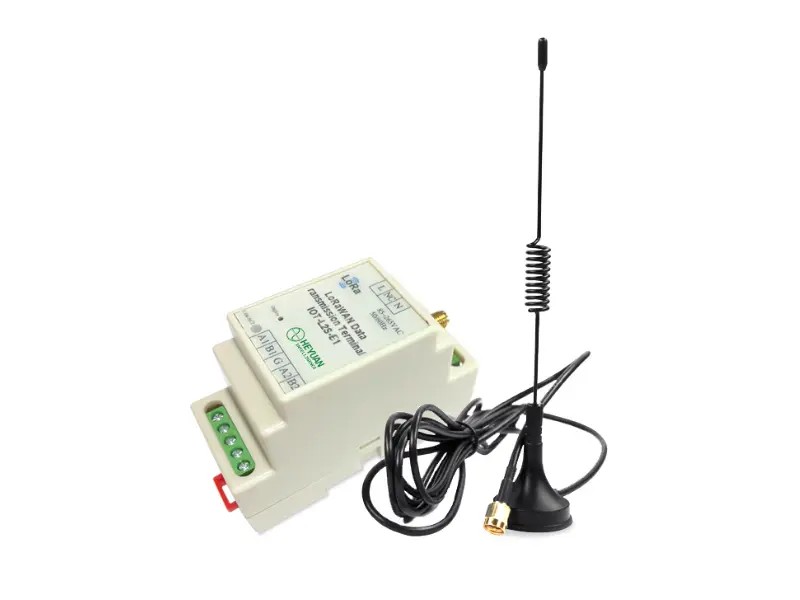

Heyuan IOT-L2S-C1&C2 RS485 to LoRaWAN Data Converter

Heyuan Intelligence provides the IOT-L2S-C1&C2 RS485 to LoRaWAN Data Converter, designed to connect RS485-based devices to LoRaWAN networks. The device integrates two RS485 interfaces and supports communication with various RS485 devices. It can collect data from wired equipment through RS485 and transmit the information wirelessly through a LoRaWAN network. This makes it suitable for energy meters, electricity monitoring devices, industrial controllers, building automation equipment, environmental monitoring devices, centralized meter reading, and other Industrial IoT applications.

The IOT-L2S-C1&C2 supports LoRaWAN Class C, uses an SX1276 LoRa RF chip, supports Modbus RTU and DL/T 645, and adopts a compact DIN-rail installation design. Different frequency options, including IN865, EU868, AU915, AS915, and AS923 MHz, are available for different regional LoRaWAN deployments.

Typical architecture: RS485 Energy Meter / Sensor → IOT-L2S-C1&C2 → LoRaWAN Network → LoRaWAN Gateway → IoT Platform / EMS / BMS

This approach allows existing RS485 equipment to participate in a wireless LoRaWAN network without replacing the original field devices, making it particularly useful for smart building retrofit projects where installing new communication cables may be difficult or costly.

From "Wireless Sensors" to "Building Digital Nervous System"

The future of LoRaWAN holds more promise than simply increasing the number of sensors; it lies in its further integration with edge computing, digital twins, AI, and building energy management. Once buildings possess vast amounts of data on temperature, humidity, air quality, occupants, energy levels, and equipment status, the true value lies in the analytical and decision-making capabilities behind that data.

For example, AI can leverage accumulated sensor data to build building energy consumption models and identify abnormal operating states; combined with occupancy data, it can predict future load demand; and combined with equipment operation data, it can detect abnormal trends in HVAC systems in advance. Therefore, LoRaWAN can be understood as an important component of the building's "sensing layer," while AI plays the role of the "cognition and decision-making layer."

The LoRa Alliance also began emphasizing the integration of LoRaWAN and PhysicalAI in 2026, positioning it as a crucial connectivity foundation for AIoT data collection. This means that the future technology chain for smart buildings may further evolve as follows: wireless sensing → edge connectivity → data fusion → AI analysis → automatic control → continuous optimization.

The industry needs to avoid the "wireless omnipotence" theory, and LoRaWAN also has clear boundaries

While LoRaWAN offers significant advantages, from an engineering practice perspective, it cannot be simply viewed as a "complete replacement for wired systems." For fire protection, critical electromechanical control, real-time closed-loop control, high-bandwidth video, core networks, and systems with stringent requirements for determinism and millisecond-level response, wired networks still hold considerable value.

Furthermore, deploying LoRaWAN within large buildings requires careful consideration of factors such as building structure, wall materials, underground space, electromagnetic environment, number of gateways, terminal density, network capacity, battery life, and data security. In 2026, the LoRaWAN ecosystem was further improving the operational efficiency of large-scale devices through data rate, network capacity optimization, and deployment strategies, indicating that "network planning after massive terminal deployment" will become a crucial issue in future engineering design.

Therefore, a more rational engineering approach is not "wireless replacing wired," but rather the integration of wired and wireless technologies, with different protocols working collaboratively.

The connectivity architecture of future smart buildings will be more open and integrated

From an industry development perspective, smart buildings are transitioning from traditional "system integration" to a "data fusion" stage. In the past, a building might have multiple relatively independent systems such as building automation, lighting, security, energy, and fire protection. In the future, more systems will be integrated around a unified data model, a unified digital platform, and AI capabilities.

In this process, LoRaWAN's greatest strategic value lies in helping buildings acquire more data that was previously difficult to obtain at a lower cost. Especially for existing buildings, given their massive scale, sensitive renovation costs, and complex construction conditions, "wireless supplementation" is likely to become a crucial technological path for digital upgrades.

Therefore, the future of LoRaWAN is not to replace traditional BMS, but to become a vital connection layer for BMS to extend into a broader IoT ecosystem. From "device networking" to "spatial awareness," from "system automation" to "building intelligence," smart buildings are entering a new phase driven by massive amounts of data. The truly advanced building networks of the future will not necessarily be those with the most cables, but rather those capable of achieving the broadest spatial awareness with the lowest deployment cost, lowest operating power consumption, and highest data value.
