LoRaWAN Module IN865MHz
iIOT-L2S-D1&D2

LoRAWAN 868MHZ

  • Communication: 2 standard interfaces of RS485, supporting a variety of protocols

  • Supporting LoRaWAN Class C protocol

  • LoRa chip: SX1278 and SX1276

  • Transmission range: Up to 15km barrier free

  • 1 LoRaWAN module can connect up to 16 Modbus RTU protocol devices and 16 DL/T645 protocol devicessimultaneously

  • Working Frequency: 865MHz

  • Power supply: AC85-265V,50/60Hz

Downloads

20180730110757329.jpg@!w800

20180730111143406.jpg@!w800


20180730111231231.jpg@!w800

The LoRaWAN Module integrates two interfaces ofindustrial standard RS485 and supports a variety of protocols to realizethe data transmission The RF chipSX1278 from Semtech is used as RF part to realize long-distance transmission. Also it supports LoRaWAN Class C protocol.

Solid Core Current Transformer

Split Core Current Transformer

Current Transformers

Get a special offer when you add optional split core or flexible CT form factors to your purchase

The LoRa Data Transmission Terminal is universal communication interactive equipment, which is designed and manufactured based on LoRa RF chip. It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realize data transmission between wired and wireless devices. It can be widely applied in the IOT, centralized metering and industrial control etc..

The Energy Management System acquires real-time energy consumption data from the acquisition terminal then calculates and stores the data from all sorts (i.e. water, electricity, gas, heating), subareas, sub items and sub time with mathematical method of summarizing and splitting etc. Then checking system, which accurately and quantitatively measures unit energy consumption, can be provided by monitoring and diagnosing the data. Thus energy saving management can be realized.

Energy management software

We will install, wire and test your power and energy meter for you.

20190403140408804.jpg@!w1200

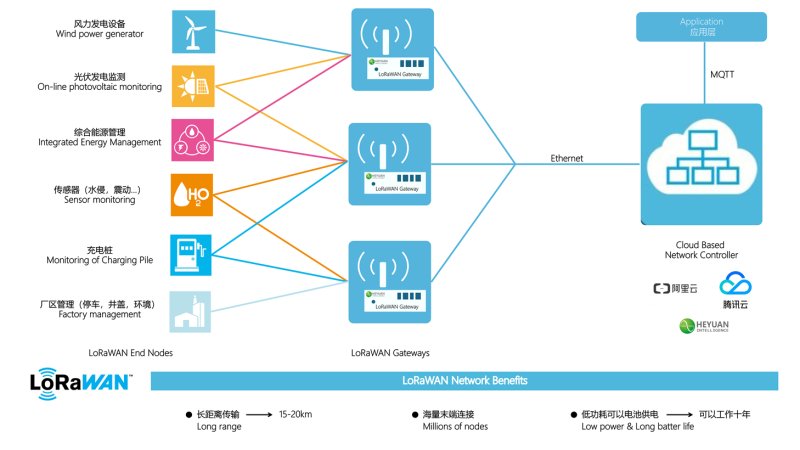

20190403140408717.png@!w1200


20190419150533884.jpg@!w1200

LoRa Data Transmission Terminal
