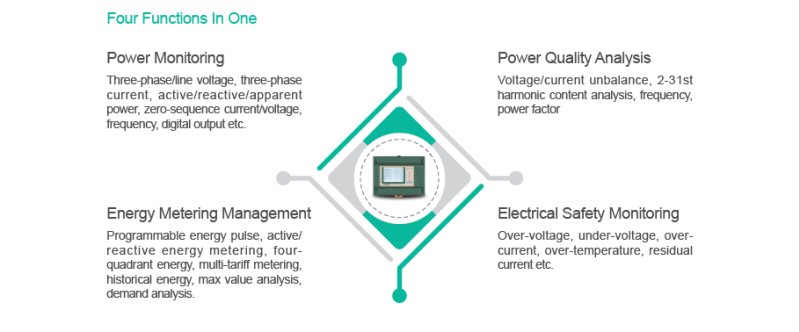

Power monitoring
Three-phase voltage/line voltage, three-phase current, active/reactive power/appearant power, zero sequence current/voltage, frequency,Relay output, etc.
Power management
Programmable energy pulse, active/reactive energy metering,Four-quadrant power, multi-rate measurement, historical energy,Maximum value statistics, demand analysis
Power quality analysis
Voltage/current unbalance, 2 to 31 harmonics analysis, frequency, power factor, voltage/current unbalance
Electrical safety monitoring
Overvoltage, undervoltage, overcurrent, overtemperature, residual current, etc.
Features & Functions
• Flexible Networking: RS485 /LoRa(433MHz)/GPRS communication mode.
• Small Size and Easy Installation: standard 35mm Din Rail
• User-friendly and Easy-to-use Interfaces: shift between Chinese-English.
• Advanced Flame-retardant Materials: accordance with security standards.
• Professional Energy Metering Chips from ADI company: accuracy up to class 0.2
• Adaption in Harsh Environment: such as dusty, electromagnetic, low-temperature environment; strong surge withstand capability.
Downloads
HYFW is a intelligent power measurement and control terminal that integrates power monitoring, energy metering management, power quality analysis and electrical safety. It can be used as intelligent power distribution, energy consumption monitoring, power demand side management, smart power safety supervision system sensing terminal, suitable for various new or modified commercial buildings, municipal buildings, industrial automation and other industries.
Solid Core Current Transformer
Split Core Current Transformer
Current Transformers
Get a special offer when you add optional split core or flexible CT form factors to your purchase
The LoRa Data Transmission Terminal is universal communication interactive equipment, which is designed and manufactured based on LoRa RF chip. It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realize data transmission between wired and wireless devices. It can be widely applied in the IOT, centralized metering and industrial control etc..
The Energy Management System acquires real-time energy consumption data from the acquisition terminal then calculates and stores the data from all sorts (i.e. water, electricity, gas, heating), subareas, sub items and sub time with mathematical method of summarizing and splitting etc. Then checking system, which accurately and quantitatively measures unit energy consumption, can be provided by monitoring and diagnosing the data. Thus energy saving management can be realized.
Energy management software
We will install, wire and test your power and energy meter for you.
LoRa Data Transmission Terminal
We will install, wire and test your power and energy meter for you.
