DC Multi Circuit energy meter 4 DC Circuits
HYDC400

Features & Functions

Measuring: one common voltage, current, power, bidirectional energy from 4 loops

Save monthly energy in the past 12 months

Save the last 10 undervoltage, overvoltage and overcurrent incidents

RS485 interface

Modbus RTU

Downloads

20180730110757329.jpg@!w800


20180730111143406.jpg@!w800



20180730111411728.jpg@!w800



The 4 circuit DC energy meter is designed for power equipment operation and computer intelligent monitoring. It is suitable for electricity measurement and electric energy measurement of DC signal equipment such as batteries and solar panels. It can also be used in modern supply and distribution DC systems such as industrial and mining enterprises, civil buildings and building automation.

Solid Core Current Transformer

Split Core Current Transformer

Current Transformers

Get a special offer when you add optional split core or flexible CT form factors to your purchase

The LoRa Data Transmission Terminal is universal communication interactive equipment, which is designed and manufactured based on LoRa RF chip. It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realize data transmission between wired and wireless devices. It can be widely applied in the IOT, centralized metering and industrial control etc..

The Energy Management System acquires real-time energy consumption data from the acquisition terminal then calculates and stores the data from all sorts (i.e. water, electricity, gas, heating), subareas, sub items and sub time with mathematical method of summarizing and splitting etc. Then checking system, which accurately and quantitatively measures unit energy consumption, can be provided by monitoring and diagnosing the data. Thus energy saving management can be realized.

Energy management software

We will install, wire and test your power and energy meter for you.

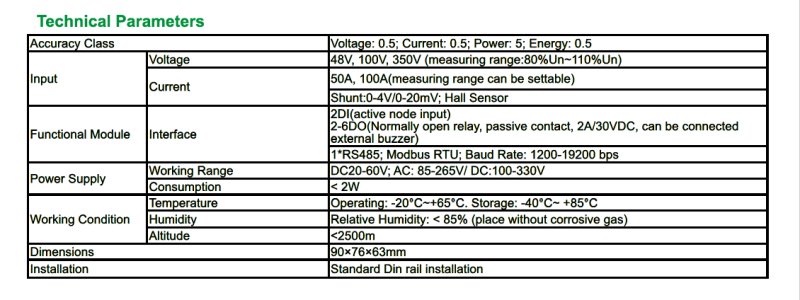

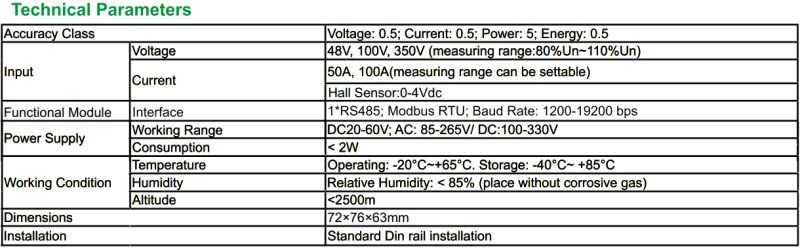

Technical Parameter-HYDC400
Accuracy ClassVoltage: 0.5; Current: 0.5; Power: 5; Energy:   0.5
InputVoltage48V, 100V, 350V (measuring range:80%Un~110%Un)
Current50A, 100A (measuring range can be settable)

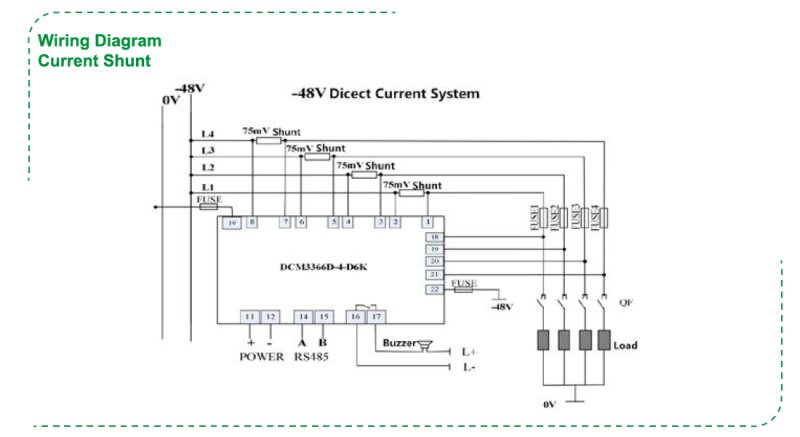

Shunt:0-4V/0-20mV; Hall Sensor

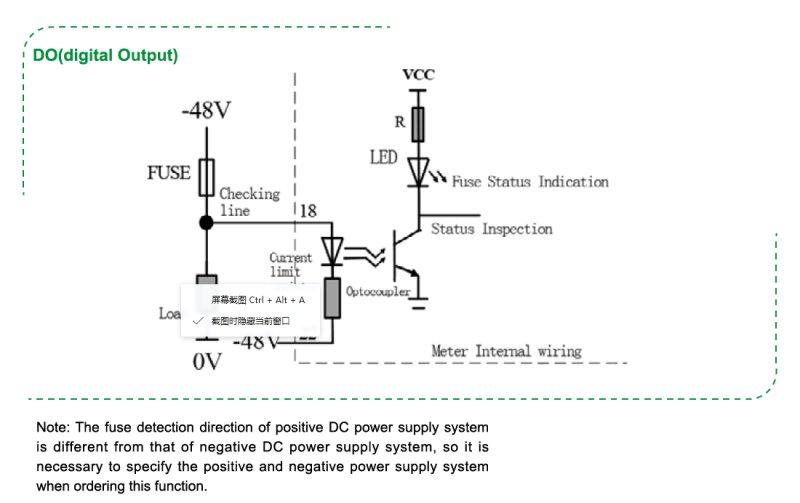

Functional ModuleInterface2DI (active node input)

2-6DO (Normally   open relay, passive contact, 2A/30VDC, can be

connected external buzzer)

1*RS485;   Modbus RTU; Baud Rate: 1200-19200 bps
Power SupplyWorking RangeDC20-60V; AC: 85-265V/ DC:100-330V
Consumption< 2W
Working ConditionTemperatureOperating: -20°C~+65°C. Storage: -40°C~ +85°C
HumidityRelative Humidity: < 85% (place without   corrosive gas)
Altitude<2500m
Dimensions90×76×63mm
InstallationStandard Din rail installation
