Multifunction power meter MA3UI5C
Measuring three phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, active power, reactive power, apparent power, power factor, frequency, four-quadrant electric energy, active energy, reactive energy, bidirectional active energy, bidirectional reactive energy, Voltage unbalance, current unbalance
Analysis of current/voltage harmonic (2-31times)
Multi tariff, available for querying past 12 months' energy
Off-limit alarm and alarm event record
SOE records accurate to milliseconds
Real time clock
Communication: Modbus-RTU via RS485;
Digital input & output: 4 DI; 2-4 DO
Voltage qualified rate
Maximum statistics
Demand analysis
Programmable data records (8M)
1* programmable energy pulse output
Fault judgement & analysis

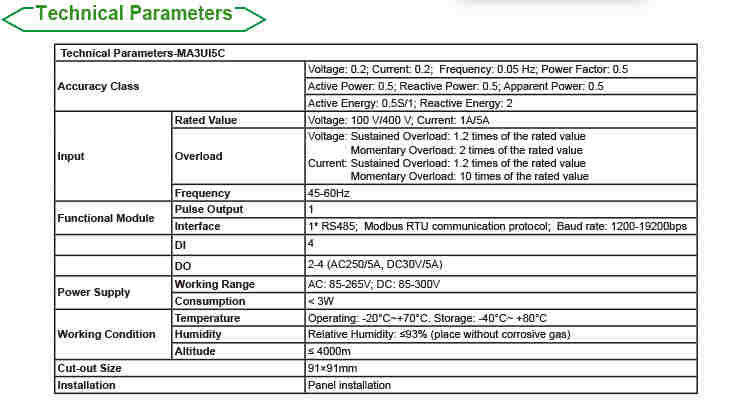

Accuracy: active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%
Power supply: AC: 85-265V; DC: 85-300V

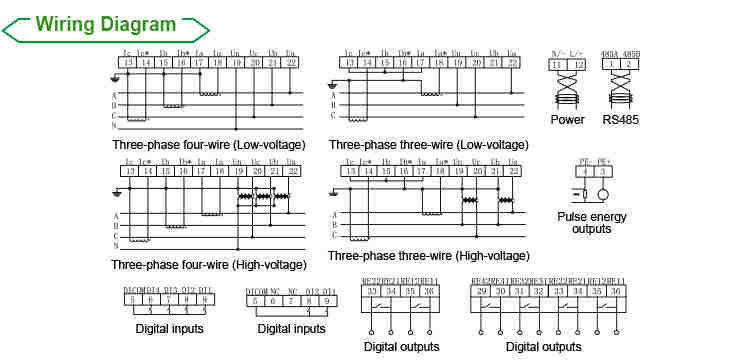

CT/PT connection
Display: 4 Figures; LCD screen
Panel installation

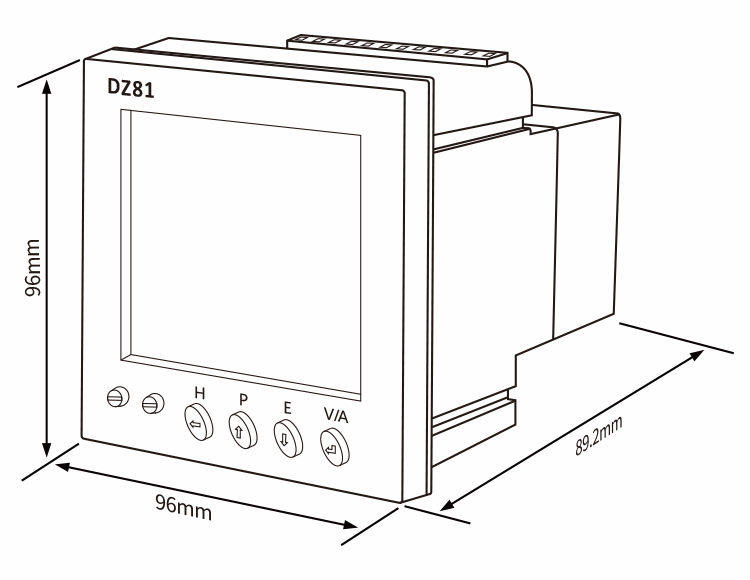

Dimension: 96mm × 96mm
Downloads
The Multifunction power meter is equipped with all electrical parameters measurement, energy management and power quality analysis functions. Integrated with various transmission even Cloud platform managing system, can realize intelligent metering.
