Three Phase Digital Power Meter 72*72mm
MS3UI7C

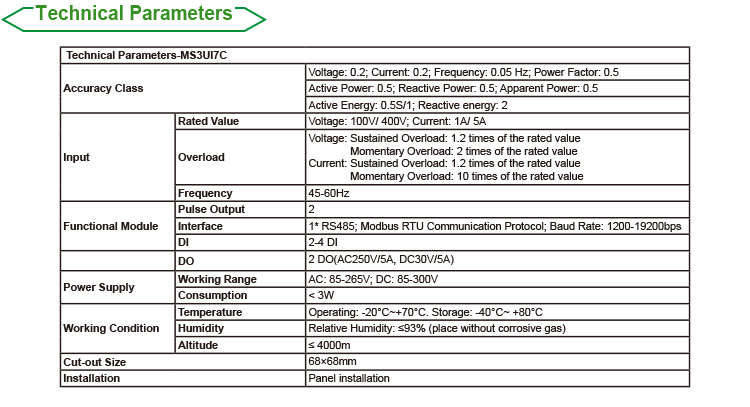

  • Measuring three phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy, bidirectional active energy, bidirectional reactive energy, voltage unbalance, current unbalance

  • 2* programmable energy pulse output

  • Analysis of current/voltage harmonic (2-31times)

  • Programmable data records (8M)

  • Communication: Modbus-RTU via RS485; LoRa (Optional)

  • Accuracy: active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%

  • Digital input & output: 4 DI; 2 DO

  • Power supply: AC: 85-265V; DC: 85-300V

  • CT/PT connection

  • Display: LCD screen

  • Panel installation

  • Dimensions: 72mm*72mm*70mm

Downloads










The smart digital power meter combines measurement, analysis and operation functions for industrial and power generation applications. It can easily be mounted in a panel for generator monitoring, substation automation and more. Meter can also provide data to RTUs, PLCs and other control devices.
