Measuring three phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, active power, reactive power, apparent power, power factor, frequency, Active energy, reactive energy, Voltage unbalance, current unbalance
Demand analysis
1* programmable energy pulse output
Multi-tariff (optional), available for querying past 12 months' energy
Analysis of current/voltage harmonic (2-31times)
Communication: Modbus RTU via rs485

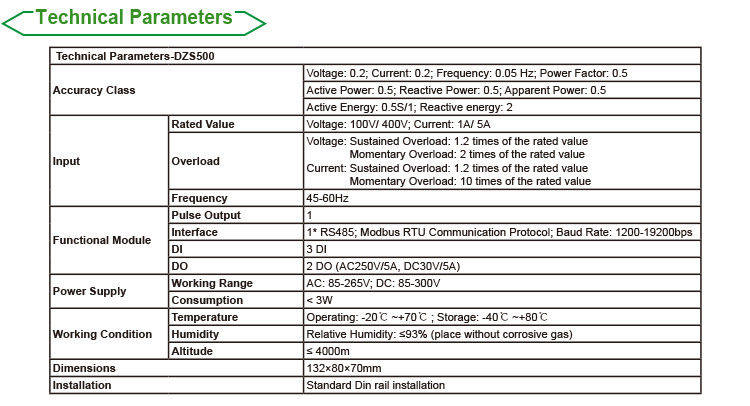

Accuracy: Active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%
Off-limit alarm and alarm event record
SOE records accurate to milliseconds
Motor protection
Current & power indicator diagram (cycle self-adjusting)
Synchronous indicator diagram Tripping: Undervoltage tripping; Open-phase tripping;Voltage unbalance tripping; current unbalance tripping; Over-voltage/ over-current tripping;
Digital input & output: 3 DI; 2 DO
Power supply: AC: 85-265V; DC: 85-300V

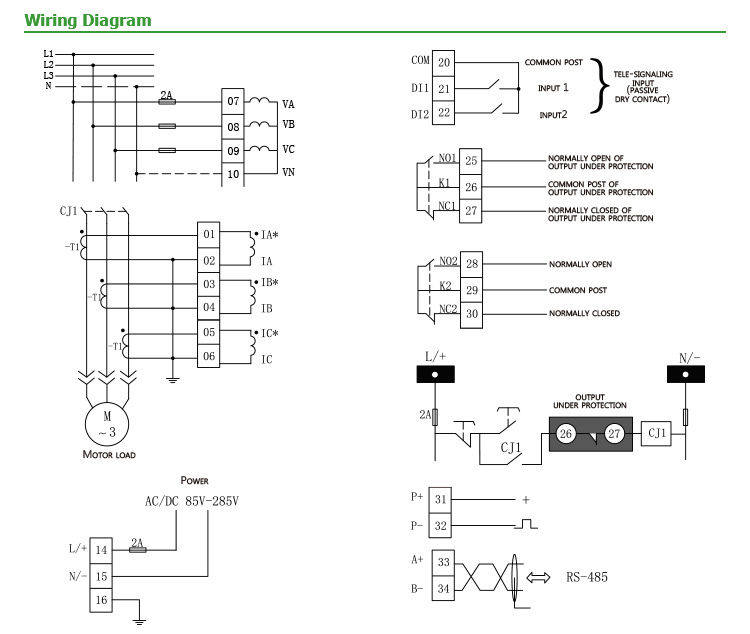

CT/PT connection
Display: LCD screen
Standard din rail installation

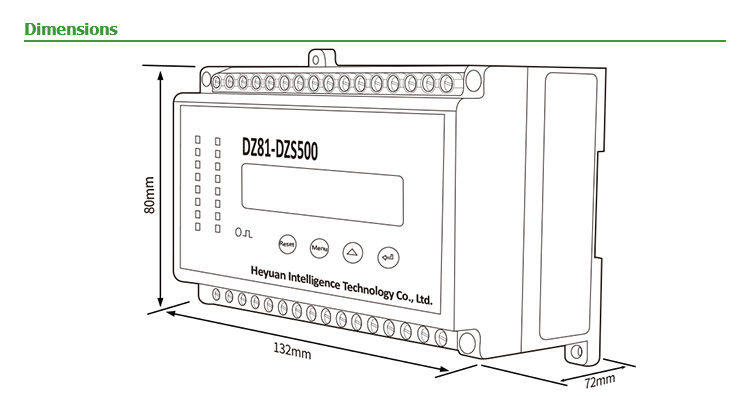

Dimensions: 132cm*80cm*72cm
Downloads
It is an advanced, smart networked electricity energy meter, which widely used in power distribution sites, energy management and intelligent monitoring systems.
