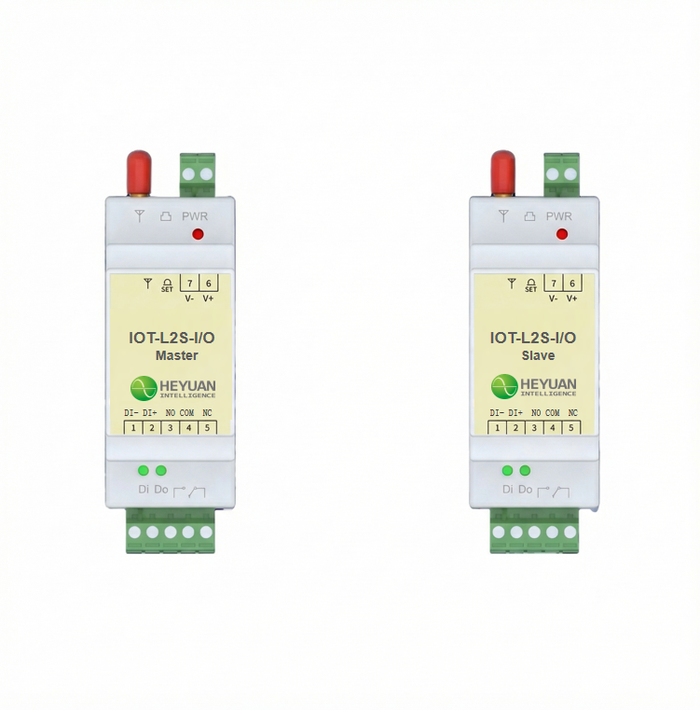

LoRa I/O Data Transmission Terminal

IOT-L2S-I/O

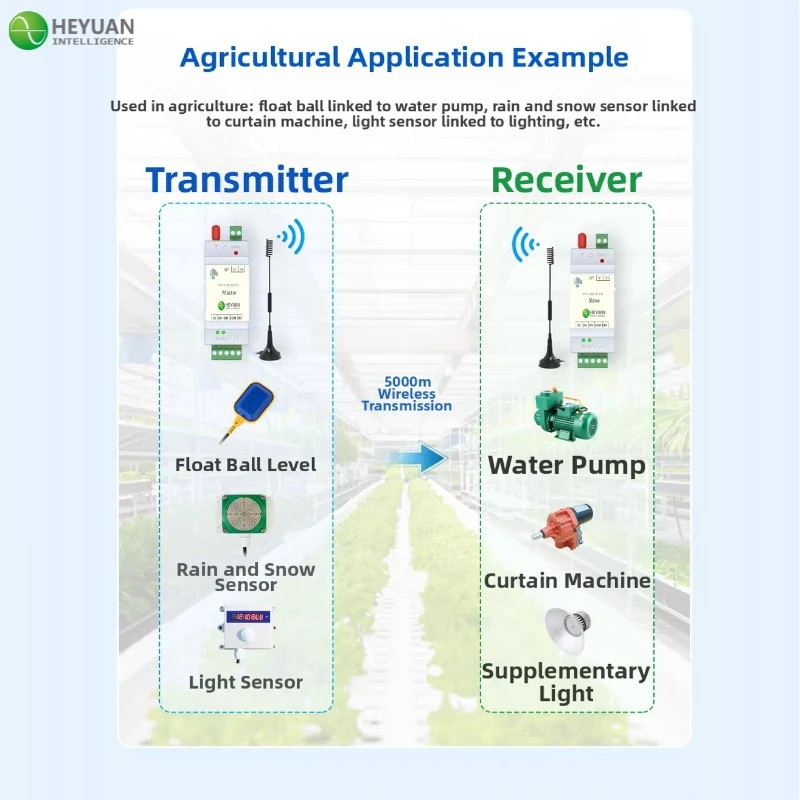

Heyuan New LoRa I/O Data Transmission Terminal, Model No.IOT-L2S-I/O, is universcal commnication interactive equipment designed and manafactured based on sx1276 LoRa RF chip from Semtech. The low-cost, flexible and easy-to-configure “out-of-Internet” communication can be ensured wherever and whenever needed. It is widely applied in fields of IoT, wireless meter reading, smart home, smart city, fire safety, industrial manufacturing,agriculture and forestry monitoring, building energy saving etc..


WhatsApp：+86 13256715009
Email：info@heyuanintel.com
Request A Sample
Download
Description
FAQ


Product Parameters
CategoryParameterDescription







LoRa Wireless

Frequency Band470-510Mhz
Transmit Power22db
Receiver Sensitivity-120dBm

Transmission Distance

• Open area, LoRa 15cm Antenna

• High speed: 3000m

• Medium speed: 4500m (default)

• Low speed: 5000m

Real-time Performance

• Open area, extreme range, LoRa 15cm suction cup antenna

• High speed: <=100ms

• Medium speed: <=800ms

• Low speed: <=2000ms

Hardware SpecificationsOperating Voltage12/24VDC
Power Consumption0.5W (current at standard 12VDC -- A)

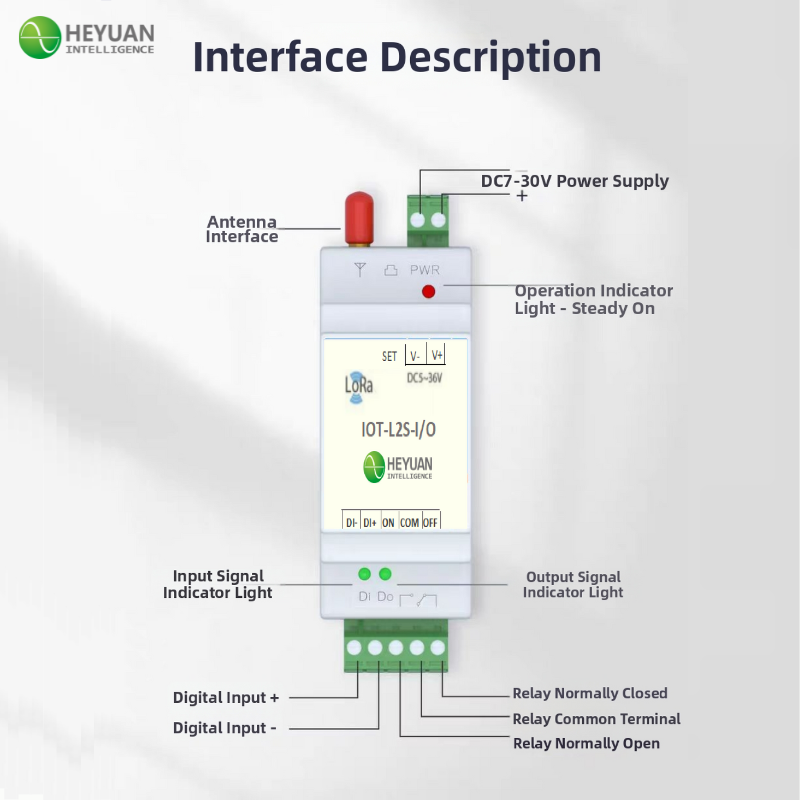

Digital InputSupports NPN or PNP type device access, supports dry contact access (DI and COM shorted)
Relay Output

Supports normally open and normally closed

10A 250VAC

10A 30VDC

Operating Temperature-20℃~+85℃

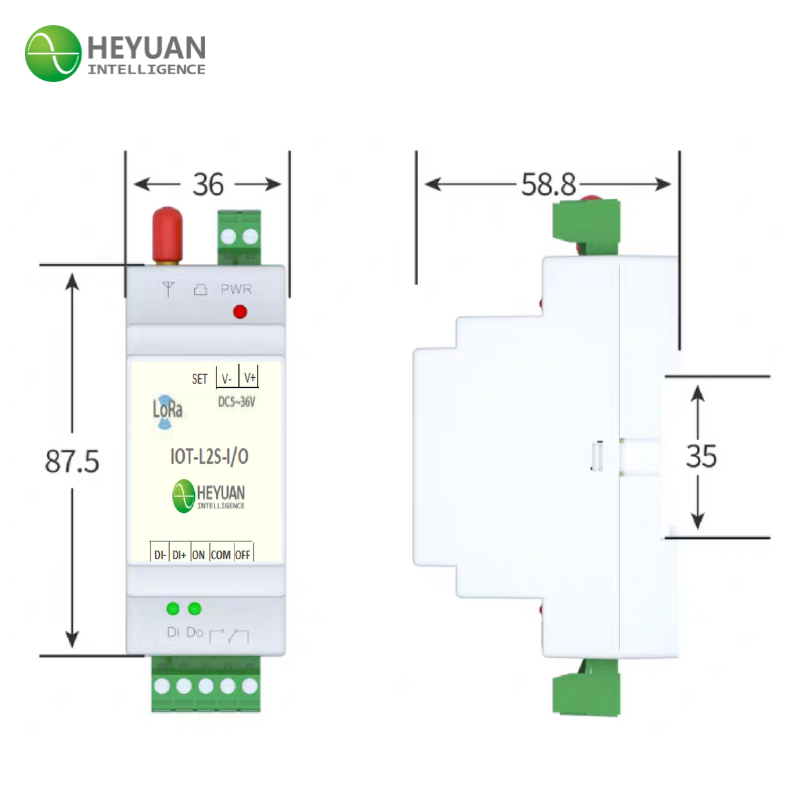

Enclosure Size88mm * 37mm * 59mm
InstallationStandard 25mm * 11 type rail mounting


产品优势

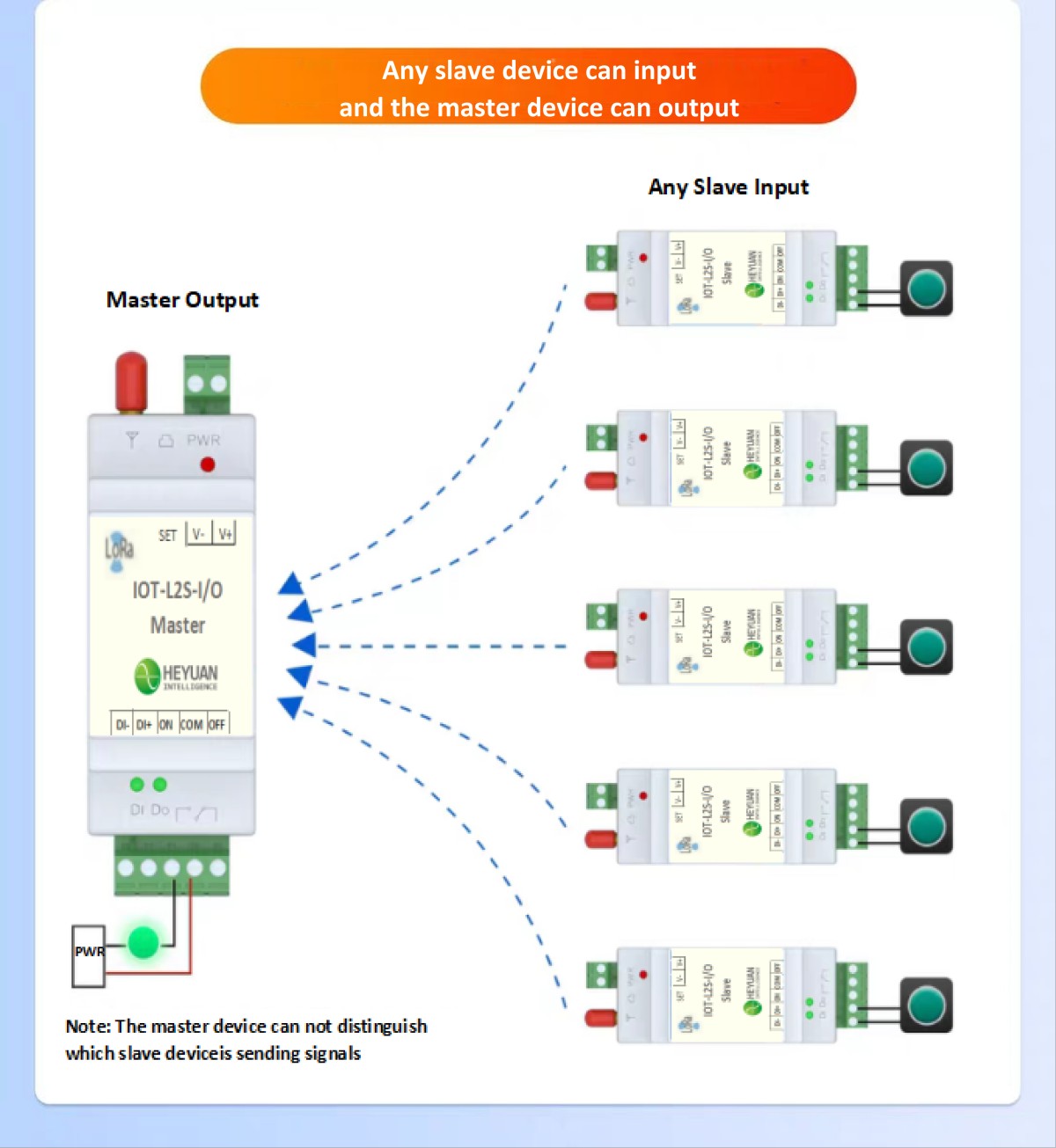

拓扑1

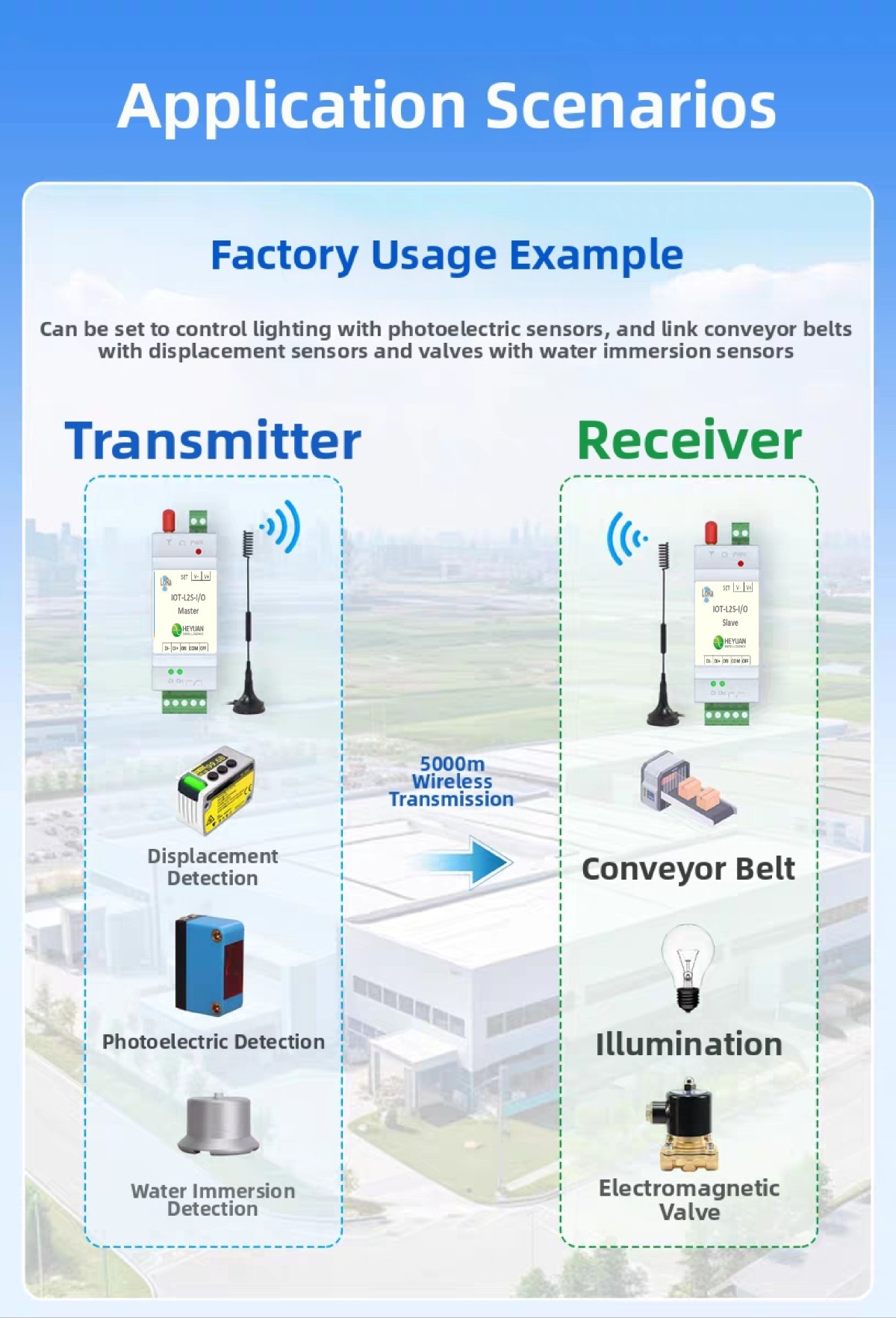

应用1

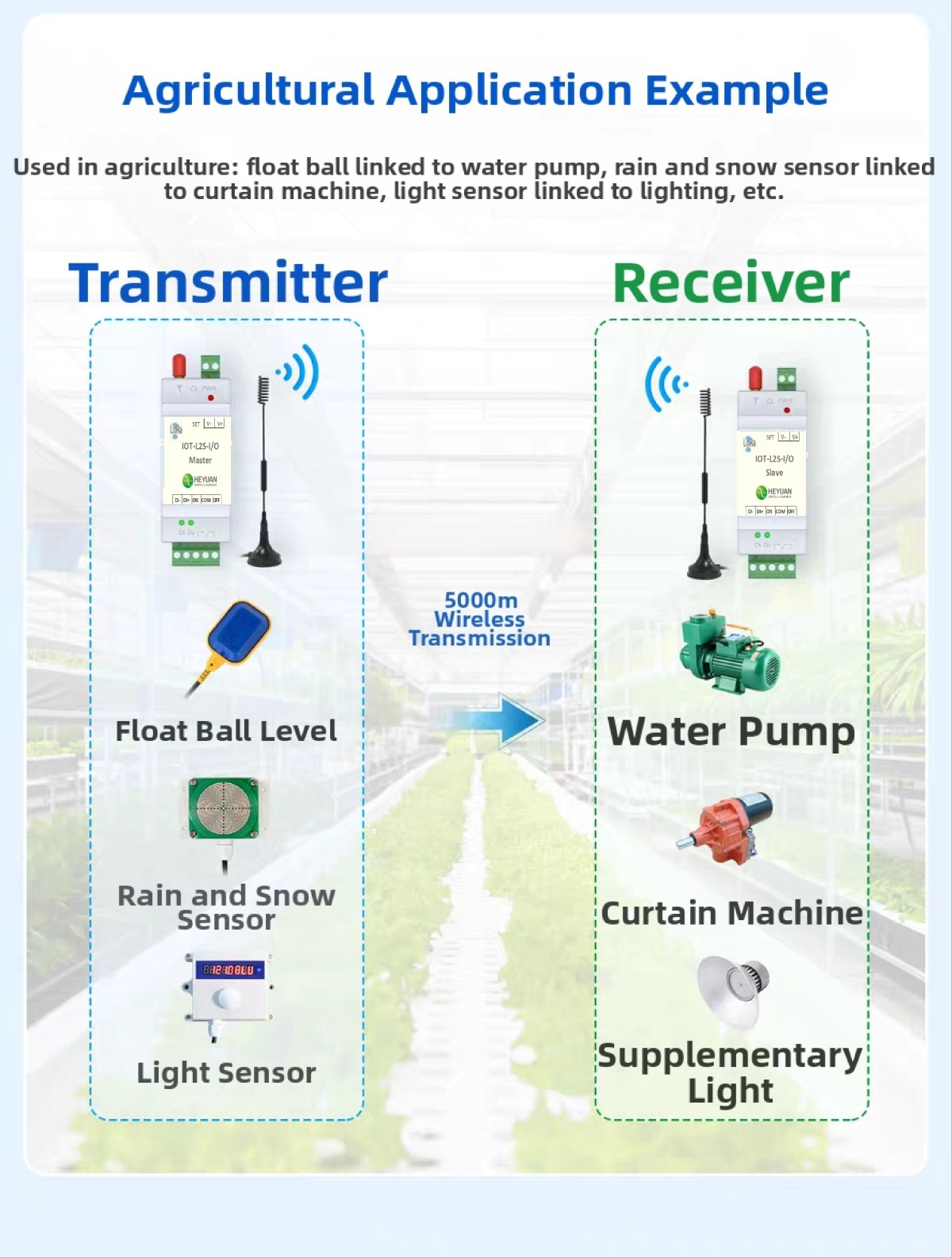

应用2


Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
