  • Single Phase Electric Meter (80A/5A CT Connection)


( 1 customer revlew)

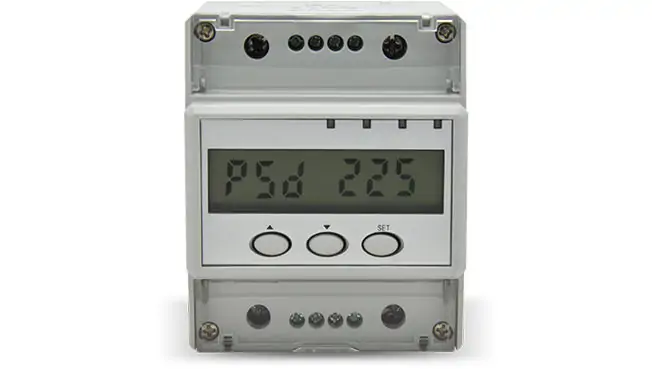

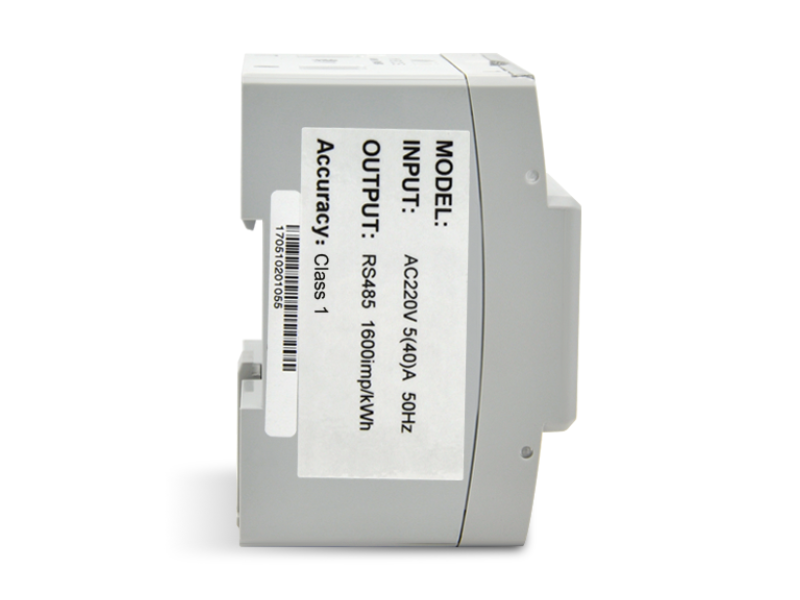

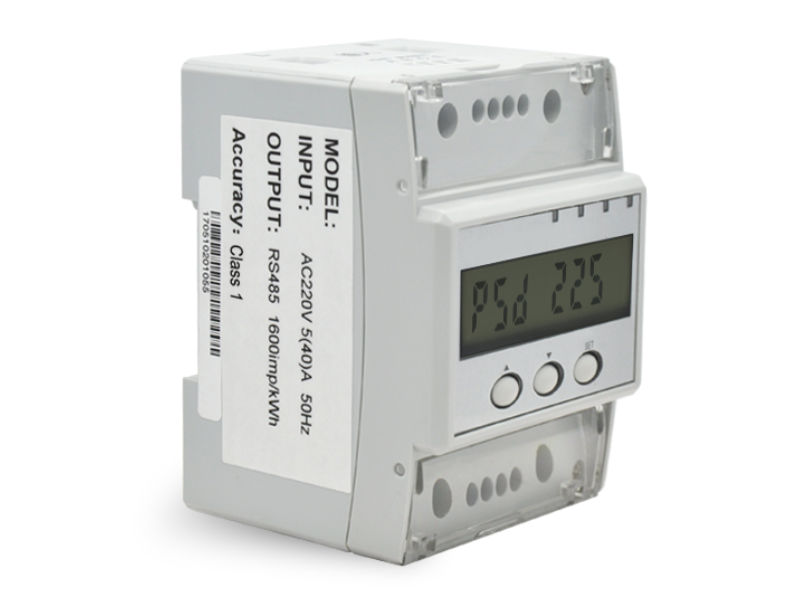

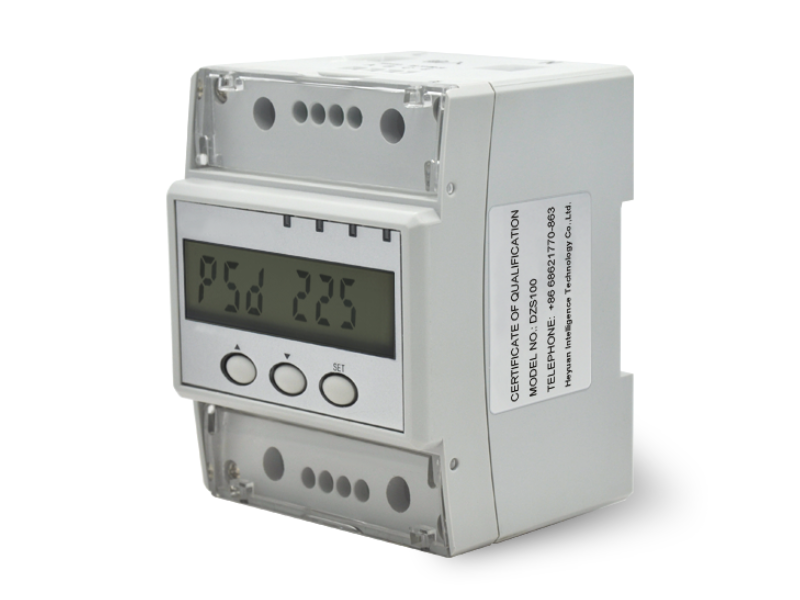

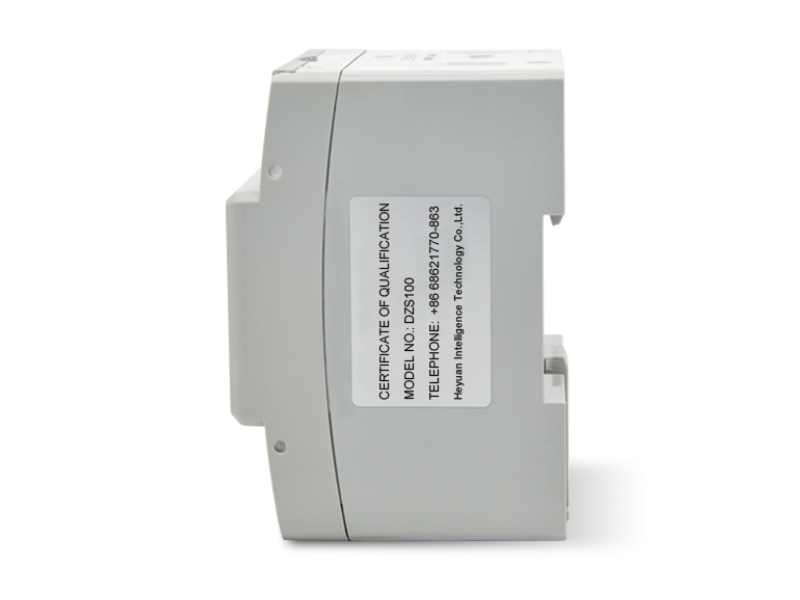

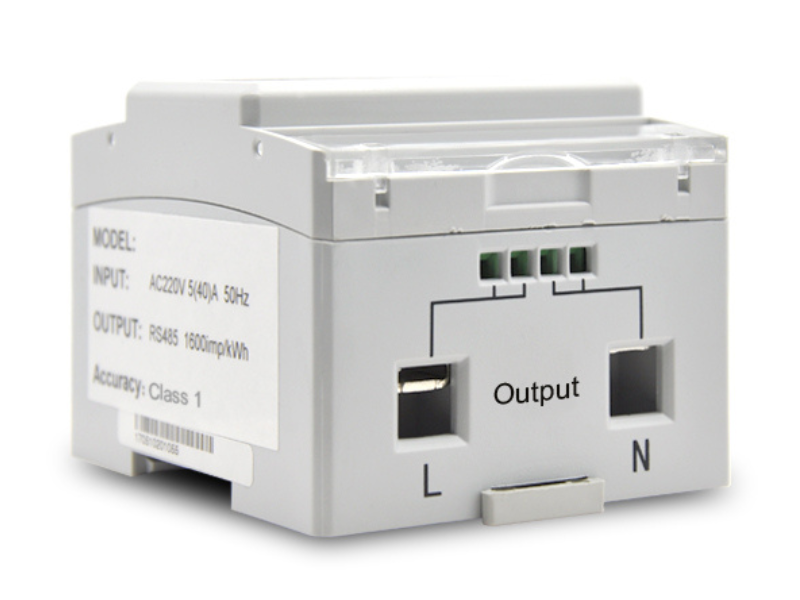

Single Phase Electric Meter (80A/5A CT Connection)
DZS100-4P

Measuring single phase current, voltage, active power, power factor, frequency, total import active energy, total export active energy, combined total active energy ( total import active energy + total export active energy)

• Available for querying past 12 months' energy

• SOE event records, saving last 10 times of recording moments

• 1*programmable energy pulse output

• 1 interface* RS485

• Modbus RTU communication protocol

• LCD display


Pequest A Sample
Download
Description
FAQ
Reviews

With high-accuracy metering IC and high speed data processing unit, the din rail single phase energy meter realizes reliable and trustworthy metering of energy usage and widely applied in smart buildings, factories, schools, hospitals etc.,


Technical Parameters-DZS100-4P
Accuracy Class1
InputRated ValueVoltage: 220V; Current: 1.5(6)A、5(40) A、10(80) A
OverloadVoltage: Sustained Overload: 1.2 times of the rated value
              Momentary Overload: 2 times of the rated value
Current: Sustained Overload: 1.2 times of the rated value
              Momentary Overload: 10 times of the rated value
Frequency45-60Hz
Functional ModulePulse Constant6400 imp/kWh,1600 imp/kWh, 800 imp/kWh
Interface

1*RS485; Modbus RTU or DL/T645 adaptive protocol;

Baud rate: 1200-19200bps

Power SupplyWorking RangeAC: 85-265V; DC:   85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20℃~+50℃ Storage: -40℃~+70℃
HumidityRelative Humidity: <85% (place without corrosive gas)
Altitude<4000m

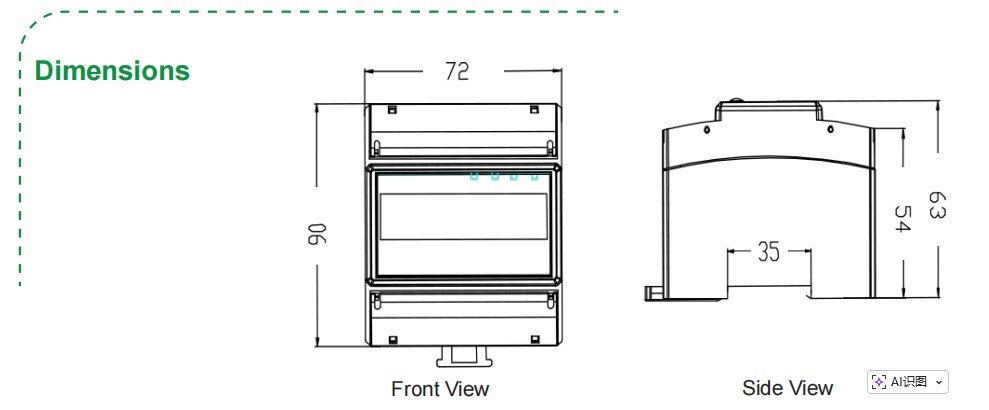

Dimensions90×63×72mm

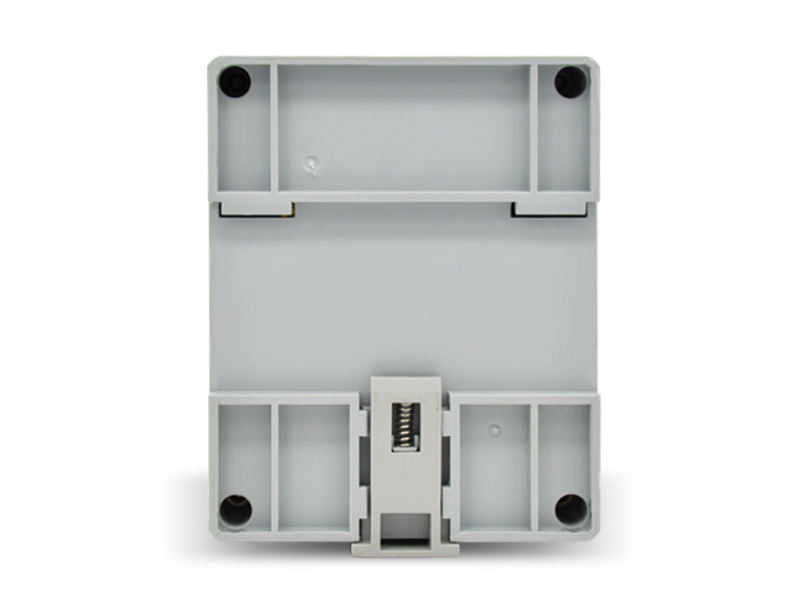

InstallationStandard Din rail installation




Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to

quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
