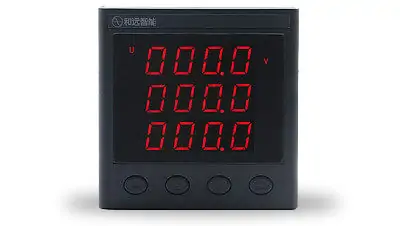

Measuring Three phase voltage
Power supply: AC: 85-265V; DC: 85-300V
Communication: Modbus RTU via RS485, LoRa (Optional)
Voltage accuracy: 0.2%

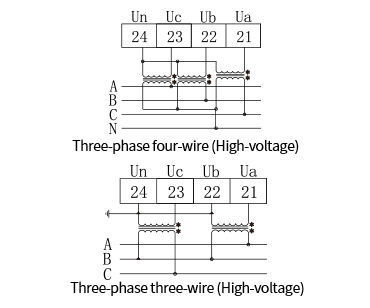

CT/PT connection
Display: LED screen
Panel installation
Dimensions: 72cm*72cm*70cm
This is an data acquisition unit for an Intelligent Power Distribution Automation System and available for RS485 communication running Modbus protocol.
Q1: How long is your delivery time?
A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.
Q2: Do you provide samples ? is it free or extra ?
A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q3: What is your terms of payment ?
A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
