Measuring three phase voltage, current, line voltage, power factor, frequency, active energy, reactive energy
1* programmable energy pulse output
Communication: Modbus RTU via RS485; LoRa (Optional)
Accuracy: active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%
CT/PT connection
Power supply: AC: 85-265V; DC: 85-300V
Display: LED screen
Panel installation: 96cm*96cm*89cm

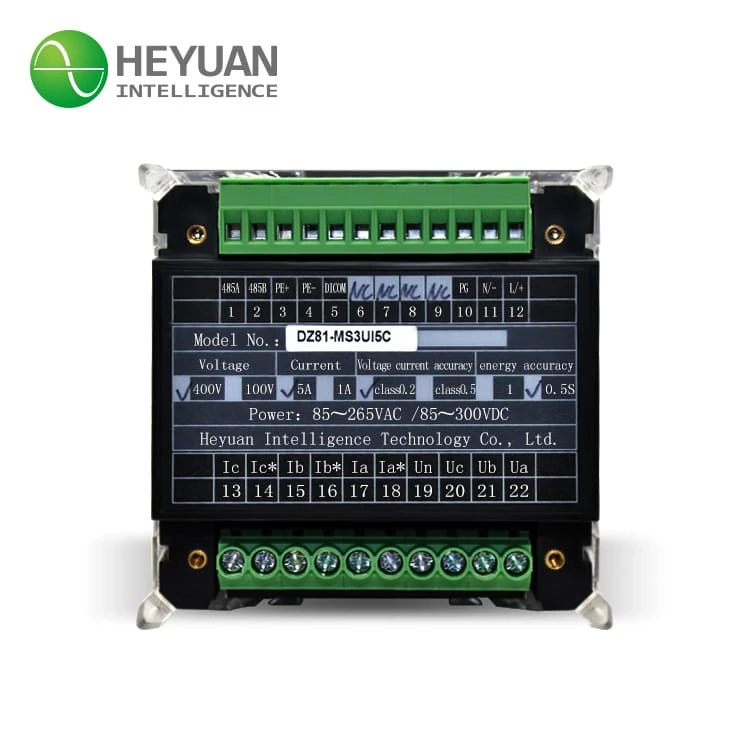

3 Phase Panel Power Meter
DZ81-MS Three-phase Multi-functional Smart Power Meters are used for measuring, monitoring, and controlling the power distribution system. The digital input helps us to monitor the status of switches, and the digital output gives us the possibility to controlthem. DZ81-MS Three-phase Multi-functional Smart Power Meters have great extended functions, which connect measuring, analyzing, and controlling together, and make the work become easier.
PRODUCT ADVANTAGES
ORIGINAL IMPORTED INDUSTRIAL GRADE CHIP
CORTEX-MX CORE
INTERNAL 8M STORAGE SPACE
GUARANTEE THE QUALITY OF EVERY
COMPONENT,IDENTITY CAN BE TRACED
FSTN FULL VIEWING LCD DISPLAY.
BACKLIGHT EVEN AND SOFT, DISPLAY CLEAR
GOLD-PLATED BUTTON PROCESSING
ST ORIGINAL RECORD PROCUREMENT CHANNELS. RESOLUTELY REJECT REPAIRED &DISASSEMBLED MACHINE PARTS
THE SAMPLING PROCESSING ADOPTS IMPORTED TL LOW-NOISE OPERATIONAL AMPLIFIER TO ENSURE THE QUALITY OF SAMPLING SIGNAL
APPLICATION
Q 1:Can I get a sample to test firstly?
A: Yes, Sample order is available.
Q 2:Can you provide solution for our site application?
A: yes, we can provide you solution & system with harware and software. We have been focusing on electricity industry for 18 years. Successful cases can be shared for your reference firstly.
Q 3: Do you accept OEM with our logo printing and packaging?
A：Absolutely! For bulk orders,our team can assist you in incorporating your unique branding into the products.
Q 4:What is the shipping time for orders?
A：1-3 days for sample order, for bulk orders of 100 units or more, we can dispatch within 2 -3 weeks.
Q 5:What after-sales services are included when purchasing energy meters?
A：We can provide 24-hour online installation guidance, troubleshooting assistance, and a 10-year warranty (excluding human factors).
