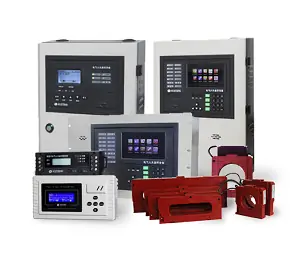

The system is mainly applied in high-rise buildings, large public buildings, and some Class B and C warehouses. It supports MODBUS host communication protocol and can communicate with third-party host control systems. Supports networking with graphic display devices and networking between multiple monitors to meet the needs of various factories.

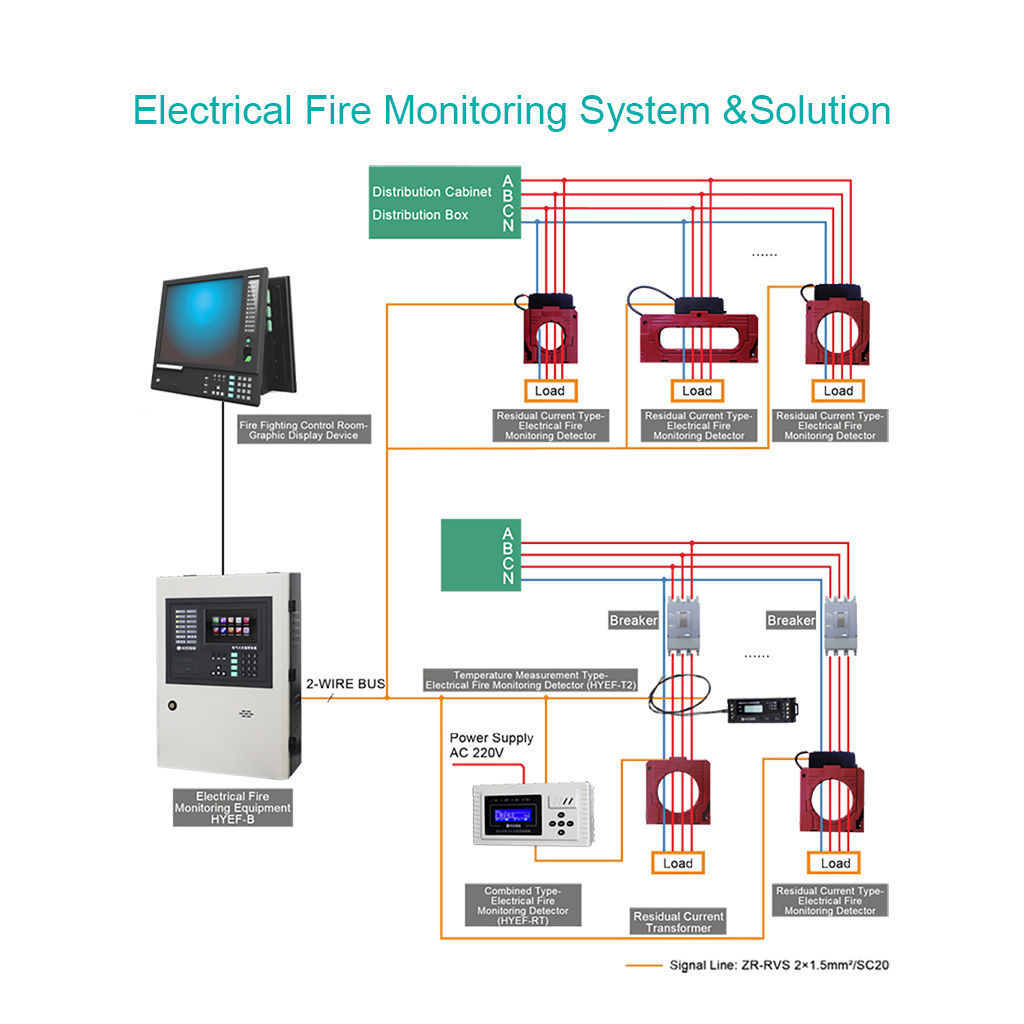

When the system detects that the residual current and temperature of the distribution power supply route are abnormal and reaches the alarm setting value, it transmits the alarm information to the electrical fire monitoring equipment through the bus. The electrical fire monitoring equipment performs the alarm, and the interface displays the alarm circuit information in real time And print out, so as to remind the staff on duty to reduce and avoid fire caused by electrical aging, humidity and other reasons.
