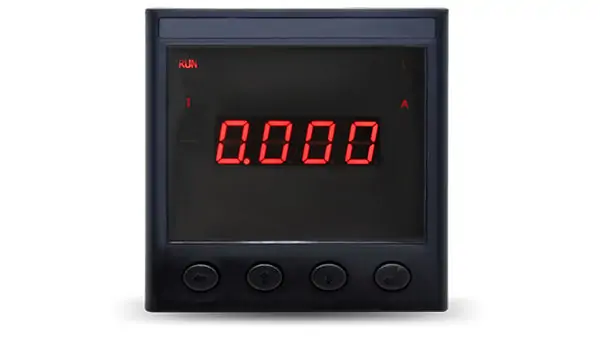

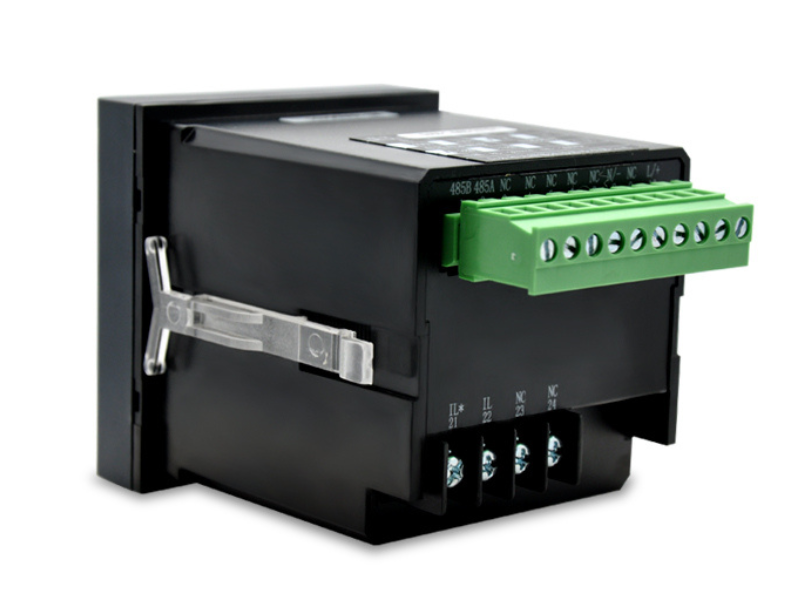

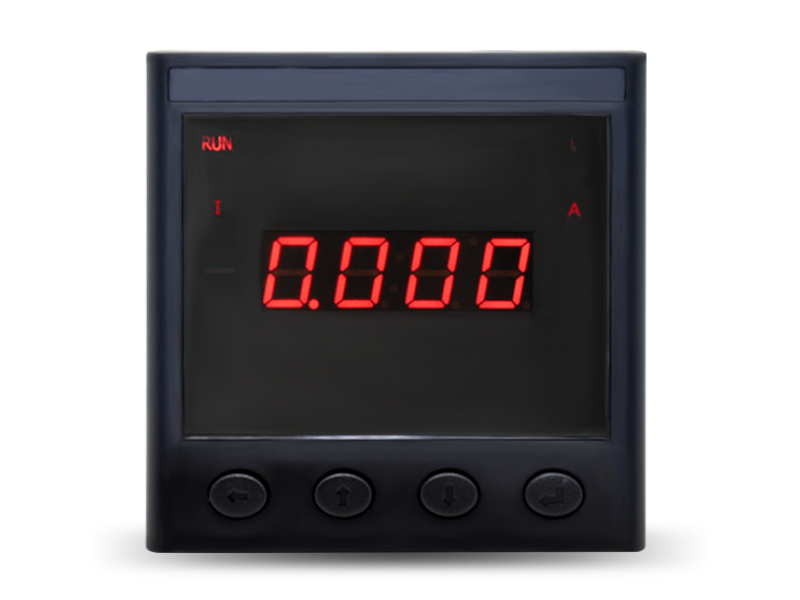

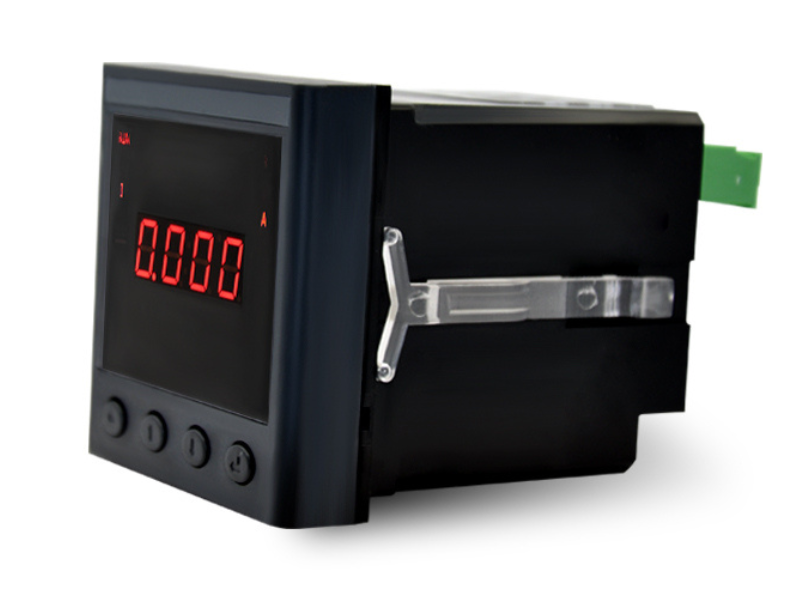

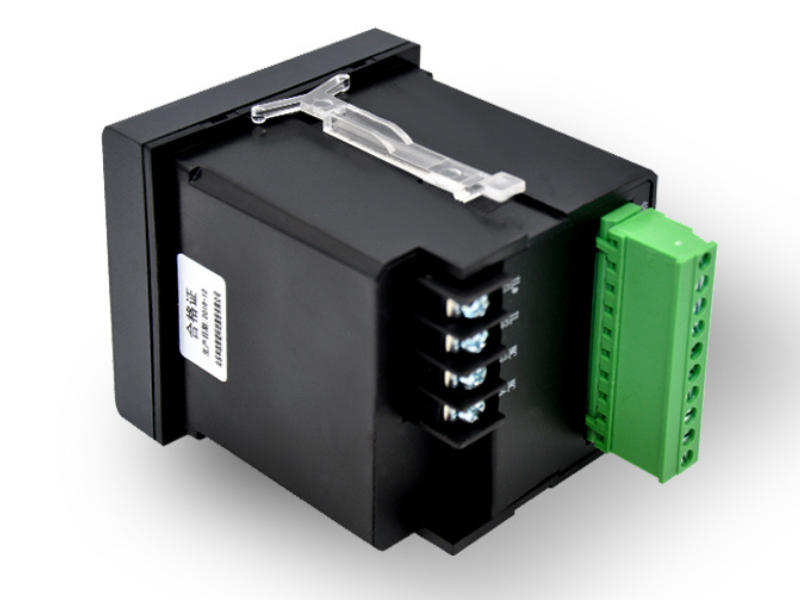

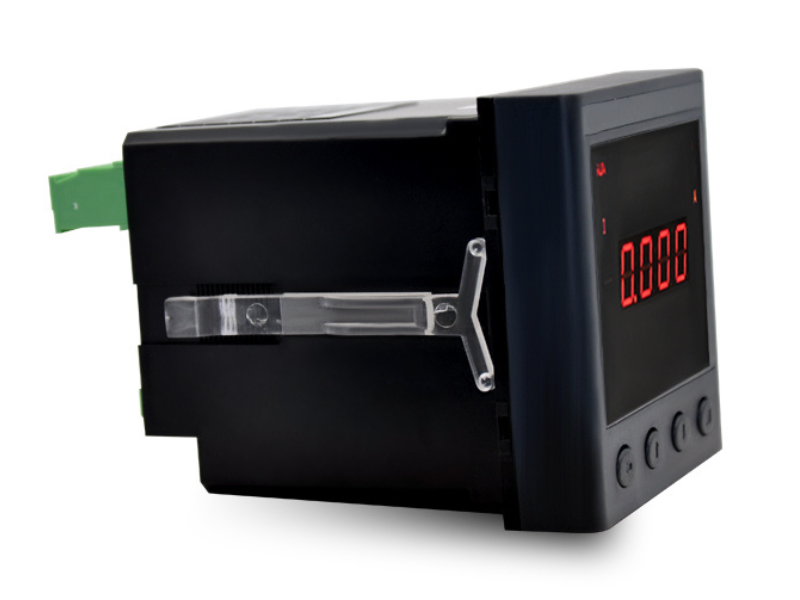

Single Phase Ampere Meter MS1I7E1
MS1I7E1

  • Measuring single phase voltage

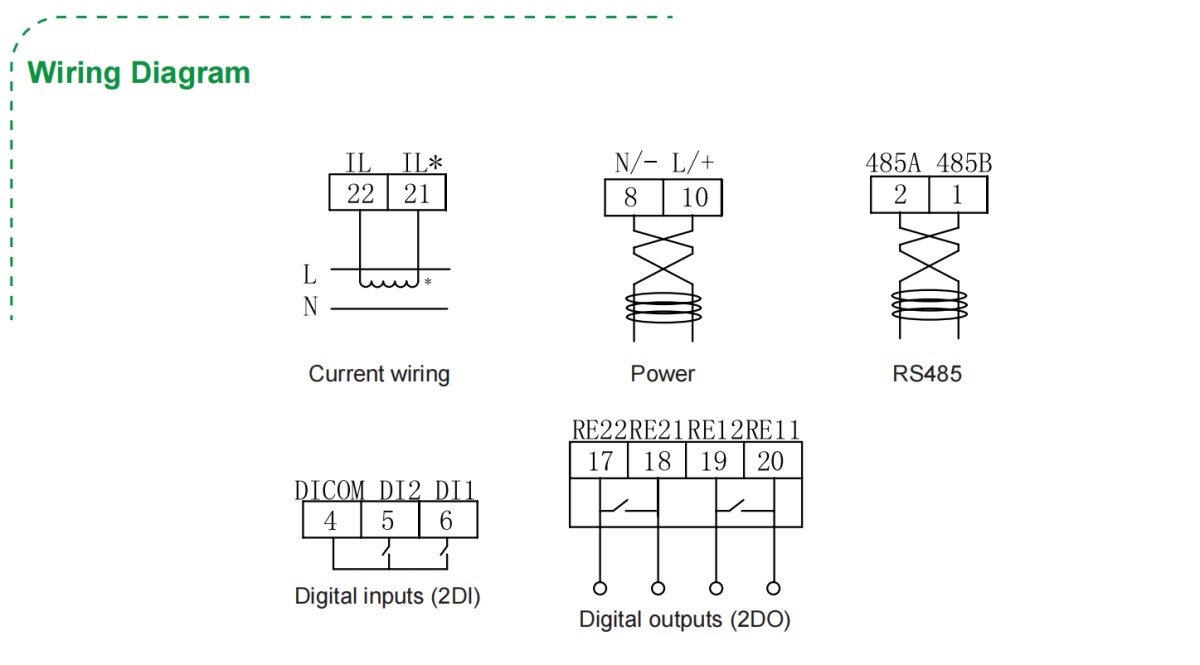

  • Standard CT connected, suitable for various current wiring modes

  • 1* RS485, Modbus RTU communication protocol

  • LED display

Request A Sample
Download
Description
FAQ

The single phase ampere meter is equipped with programmable current ratio, digital input, digital output and various communication methods, which can be completed with industry PLC or industrial computer.


Technical Parameters-MS1I7E1
Accuracy ClassVoltage: 0.2
InputRated ValueCurrent: 1A/5A
OverloadCurrent: Sustained Overload: 1.2   times of the rated value
           Momentary Overload:10 times of the rated value
Frequency45-60Hz
Functional ModuleInterface1*RS485; Modbus RTU Communication Protocol; Baud Rate: 1200-19200bps
DI

2DI

DO2DO
Power SupplyWorking RangeAC: 85-265V; DC:85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20°C~+70°C. Storage: -40°C~ +80°C
HumidityRelative Humidity: < 93% (place without corrosive gas)
Altitude≤4000m

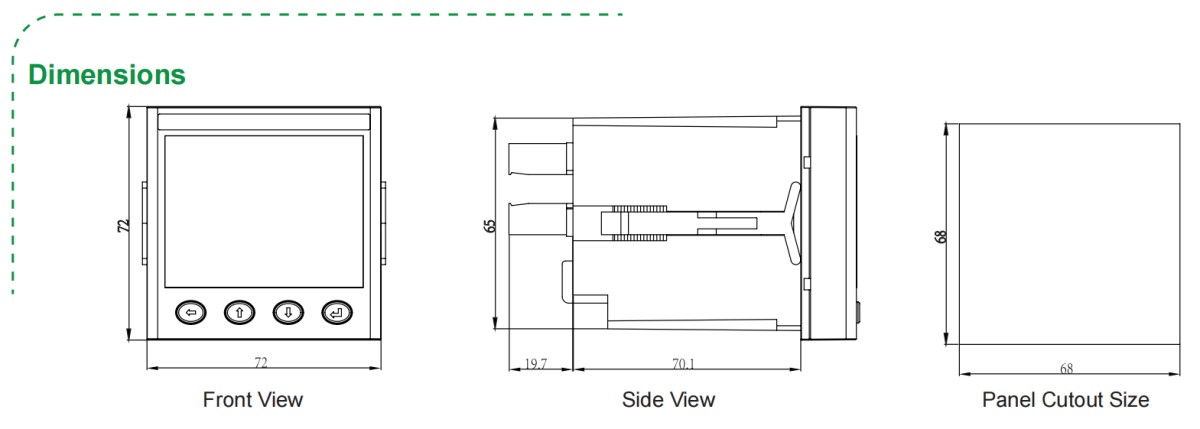

Dimensions68×68mm
InstallationPanel installation









Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
