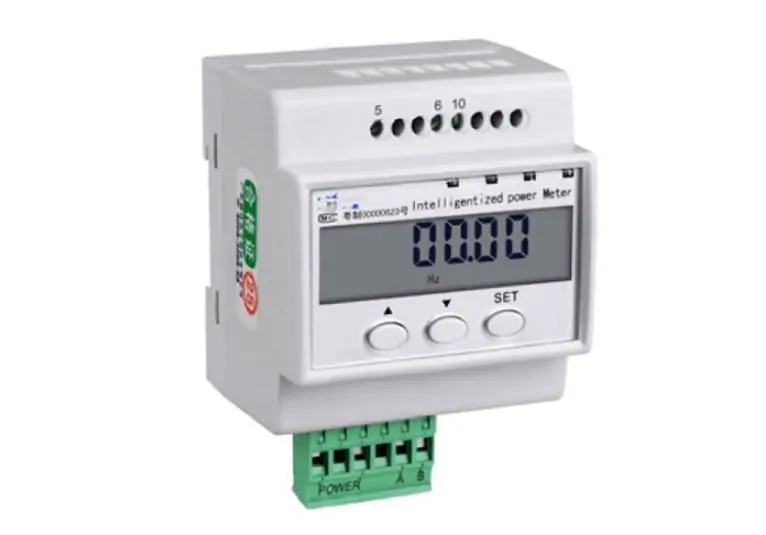

  • DC Multi Circuit energy meter 4 DC Circuits


( 1 customer revlew)

DC Multi Circuit energy meter 4 DC Circuits
HYDC400

Features & Functions

• Measuring: one common voltage, current, power, bidirectional energy from 4 loops

• Save monthly energy in the past 12 months

• Save the last 10 undervoltage, overvoltage and overcurrent incidents

• RS485 interface

• Modbus RTU

Pequest A Sample
Download
Description
FAQ
Reviews

The 4 circuit DC energy meter is designed for power equipment operation and computer intelligent monitoring. It is suitable for electricity measurement and electric energy measurement of DC signal equipment such as batteries and solar panels. It can also be used in modern supply and distribution DC systems such as industrial and mining enterprises, civil buildings and building automation.


Technical Parameter-HYDC400
Accuracy ClassVoltage: 0.5; Current: 0.5; Power: 5; Energy:   0.5
InputVoltage48V, 100V, 350V (measuring range:80%Un~110%Un)
Current50A, 100A (measuring range can be settable)
Shunt:0-4V/0-20mV; Hall Sensor
Functional ModuleInterface2DI (active node input)

2-6DO (Normally   open relay, passive contact, 2A/30VDC, can be

connected external buzzer)

1*RS485;   Modbus RTU; Baud Rate: 1200-19200 bps
Power SupplyWorking RangeDC20-60V; AC: 85-265V/ DC:100-330V
Consumption< 2W
Working ConditionTemperatureOperating: -20°C~+65°C. Storage: -40°C~ +85°C
HumidityRelative Humidity: < 85% (place without   corrosive gas)
Altitude<2500m

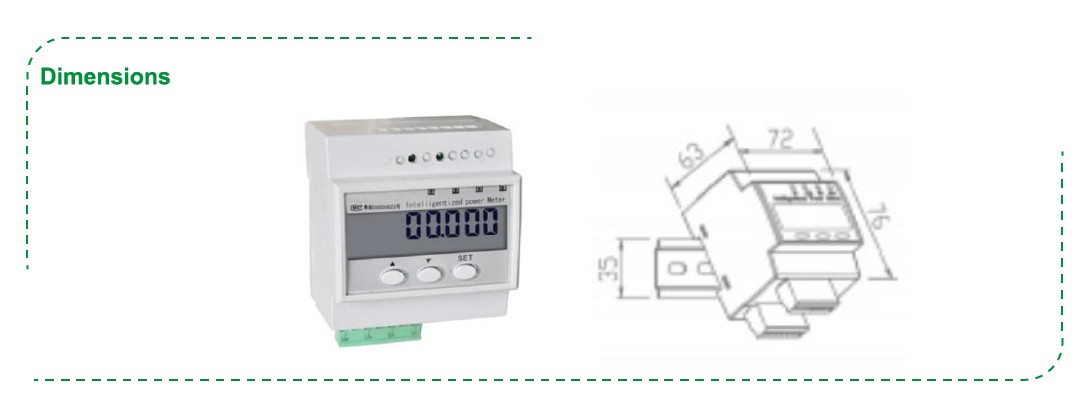

Dimensions90×76×63mm
InstallationStandard Din rail installation




Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to

quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
