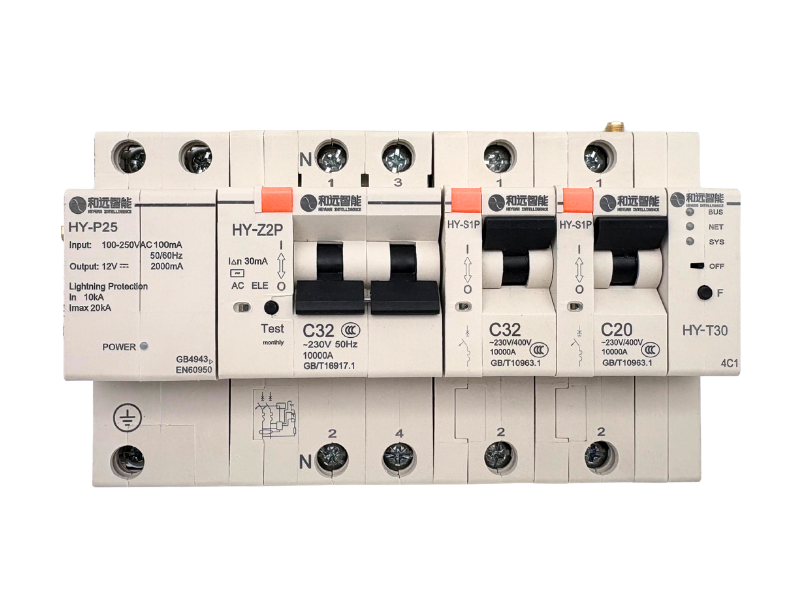

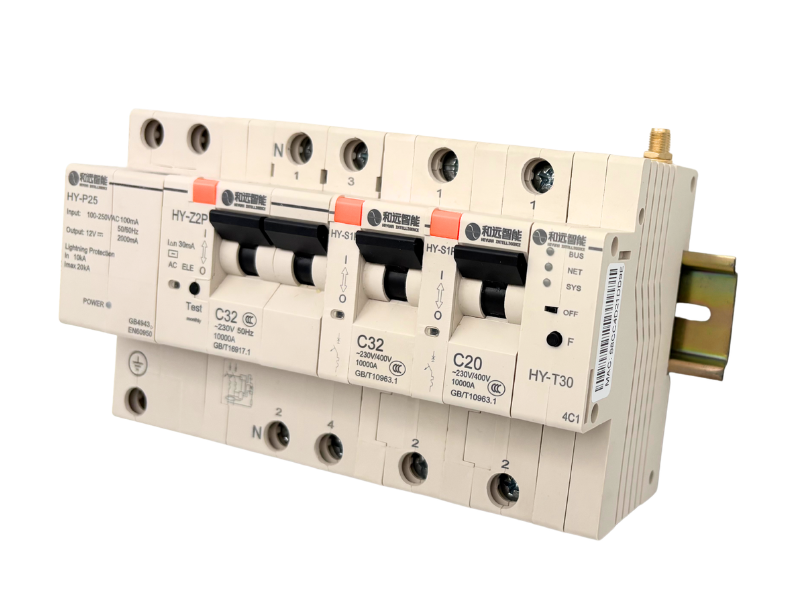

This smart electrical safety supervision and power management system has changed the traditional operation and maintenance mode. By establishing an automatic monitoring and management platform, it is easier to use electrical safety supervision to eliminate potential safety hazards Features & Functions

Real-time monitoring of power circuits parameters Parameters:Voltage, current, power, temperature, leakage current and electricity consumption.

Communication: RS485, Ethernet, WIFI, LoRa

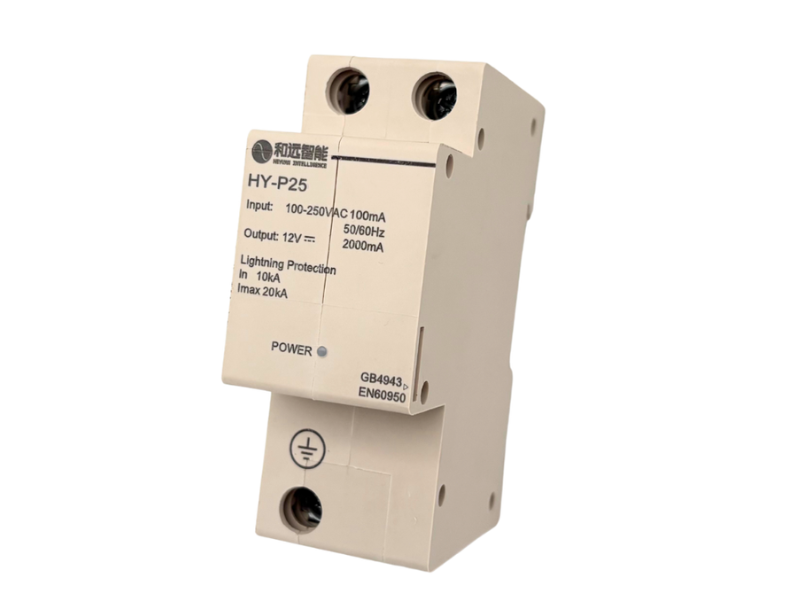

POWER SUPPLY MODULE

·Providing AC power for the smart circuit breaker and

communication module.

·Providing lightning protection and surge protection.

·Main technical parameter:

Input voltage: 100-250 V AC

Input current: 3.5 A

Imax for lightning protection: 15 kA

·Working with max.10pcs iRCBO or iMCB

TECHNICAL PARAMETERS---POWER SUPPLY MODULE
Model	HY-P25	HY-P25D
Display	without	LCD
Functions	Power supply, surge protection
Rated voltage	220V AC
Rated input voltage range	100-265 V AC
Frequency	50/60HZ
Rated input current	350mA
Rated output voltage	12V DC
Rated output current	2.5A
Class of surge protection	2 / II
Numbers of modules	36mm(2P)
Max. Cont. Operating voltage	175, 275VAC
Max. discharge current Imax (8/20) per pole Imax	15KA
Nominal discharge current in(8/20) per pole In	10KA
Max. working capacity (Max. number of breakers )	10
Conductor cross-sections	38mm²
Pollution degree	2
Ambient temperature	-15℃～+45℃
Storage temperature	-25℃～+70℃
Humidity	< 95%
Altitude	<=2000m
Terminal connection	Cable/Pin-type busbar
Mounting	Din rail (35mm) by means of a fast clip device

Smart Circuit Breaker

Full protection :

Overload,Short circuit,Over/under voltage

Arcing fault,Phase loss,Unbalance,High

temperature

Main technical parameter:

Poles: 1P, 2P, 3P, 4P

Rated Current (A): 10, 16, 20, s25, 32, 40, 50, 63, 80

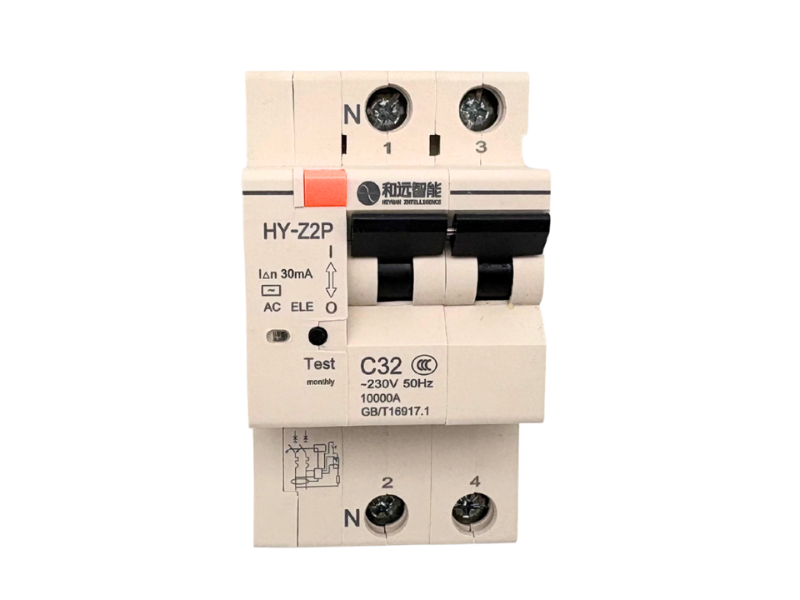

TECHNICAL PARAMETERS---SMART CIRCUIT BREAKER
	Single phase		Three phase
Model	HY-S1PC	HY-Z2PC	HY-R3PC	HY-Z3PC
Poles	1P	2P	3P	4P
Rated Current	20A/32A/63A/80A	32A/63A/80A	32A/63A/80A	32A/63A/80A
Rated Voltage	220V	220V	220V	380V
Frequency	50/60Hz
Rated Breaking capacity	6000A
Other Functions	·Over/under voltage protection, warning, and alarm. Max. power and current setting ·High temperature protection, warning, and alarm ·Monitor of current, power, and voltage in real-time ·Arcing fault protection, warning, and alarm ·Remote control ·Timer ·Meter ·Event record and notice
Breaking time when reaching the power setup	5s	\	\	\
Breaking time when the voltage is over 263VAC	\	10s	10s	10s
Under-voltage warning	\	When the voltage is lower than 190V AC
Earth leakage protection	\	30mA 0.1S	Only leakage detection	30mA 0.1S
The time for switching on automatically after the auto-test of the earth leakage current	\	5s	\	5s
Tripping characteristic	C (5-10In)
Mechanical life	20000 times
Mounting	Din rail (35mm) by means of a fast clip device
Working Temperature	－10℃～+45℃

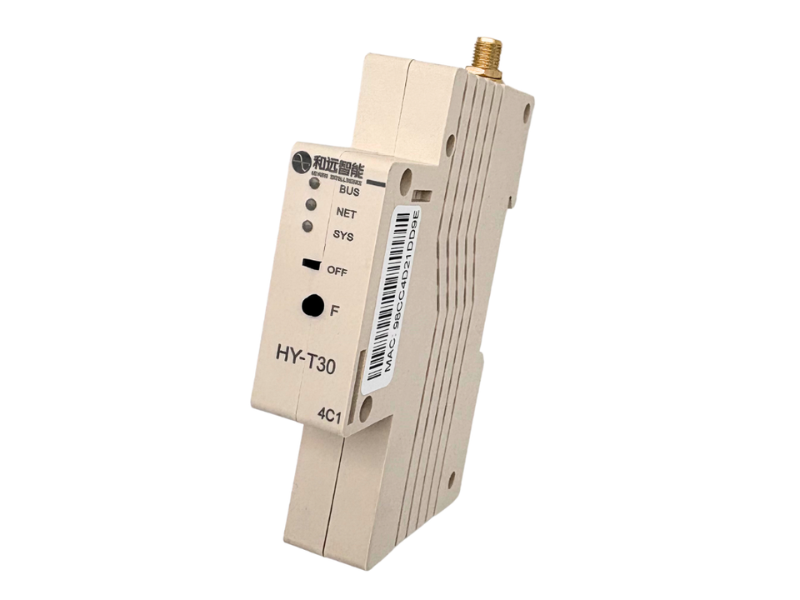

Communication Module

Communication: WiFi, LAN, Rs485, 4G

Protocol: Modbus RTU, Modbus TCP/IP, Modbus

TECHNICAL PARAMETERS---Communication Module
Model	HY-RS485
Types	RS485
Rated input voltage	12V DC
Numbers of modules(1module=18mm)	1(18mm)
Max. Working capacity (Max. Numbers of breaker powering)	32pcs
Conductor cross-sections	38mm²
Pollution degree	2
Ambient temperature	-15℃～+45℃
Storage temperature	-25℃～+70℃
Humidity	< 95%
Altitude	<=2000m
Terminal connection	Cable/Pin-type bus bar
Mounting	Din rail (35mm) by means of fast clip device
