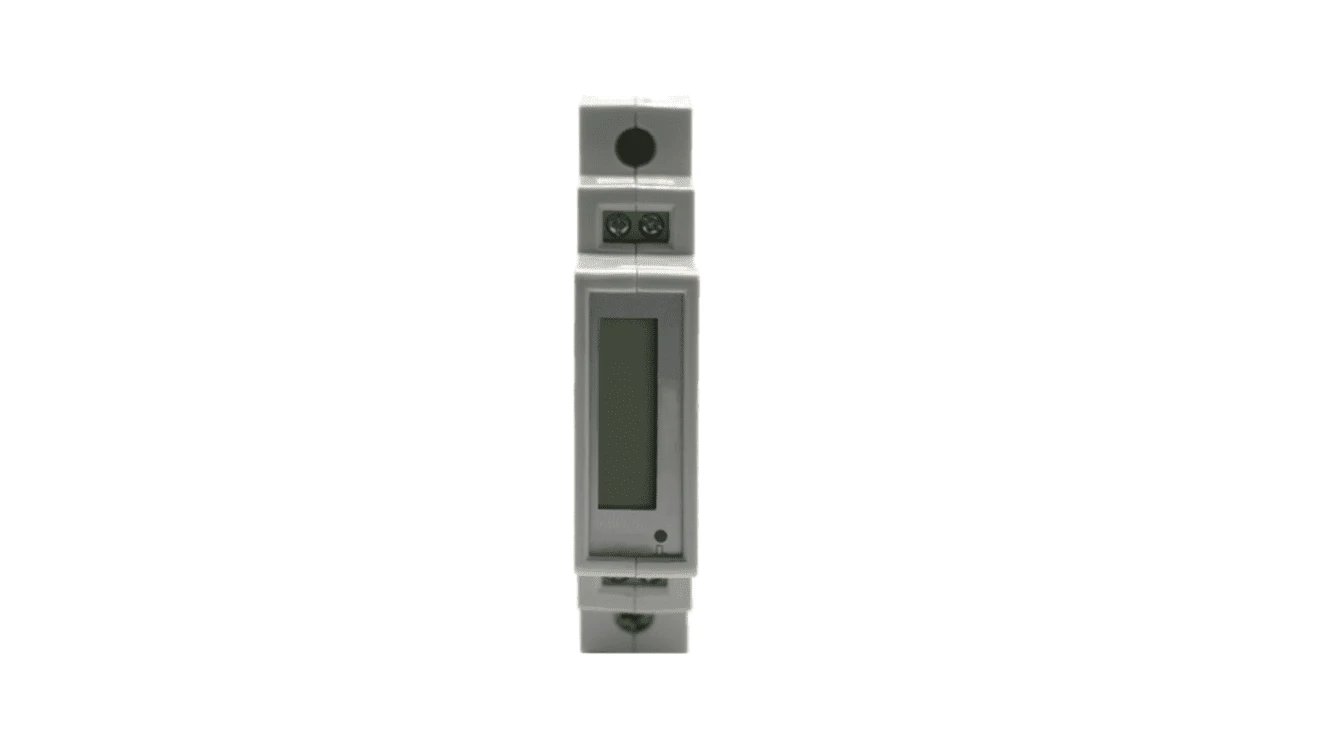

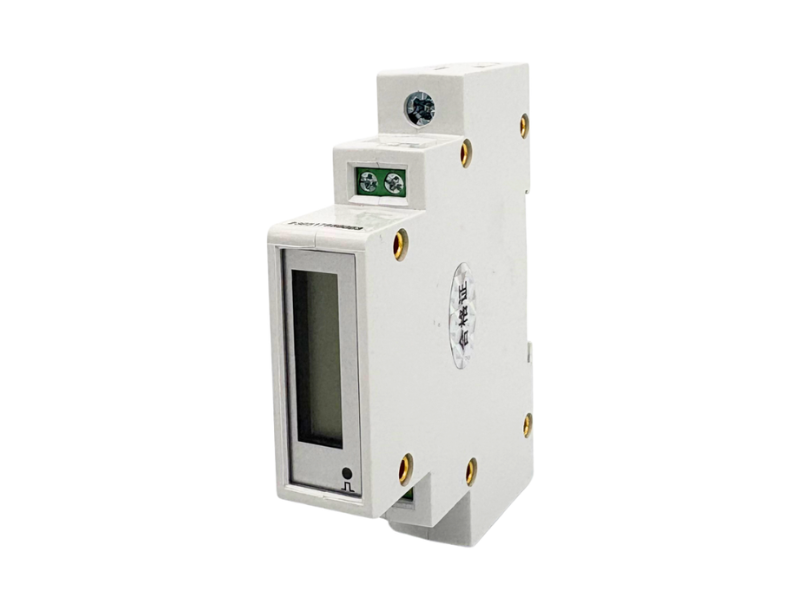

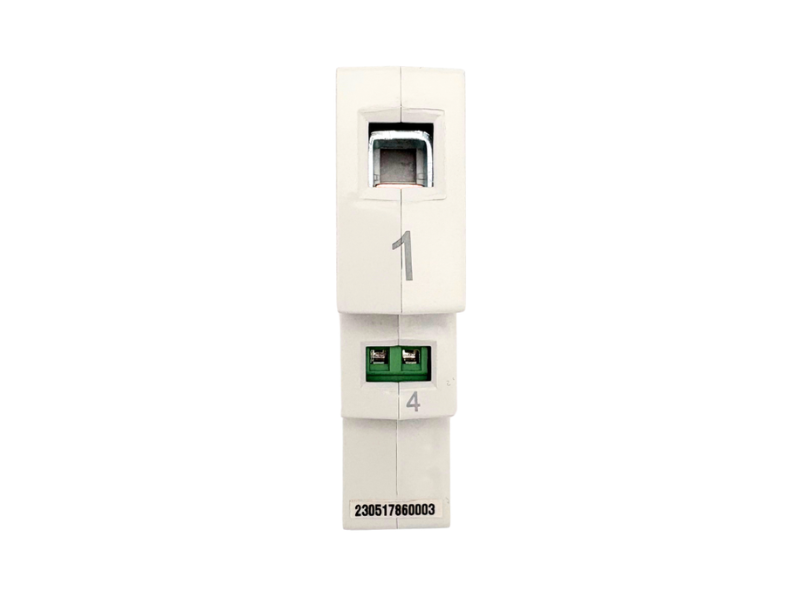

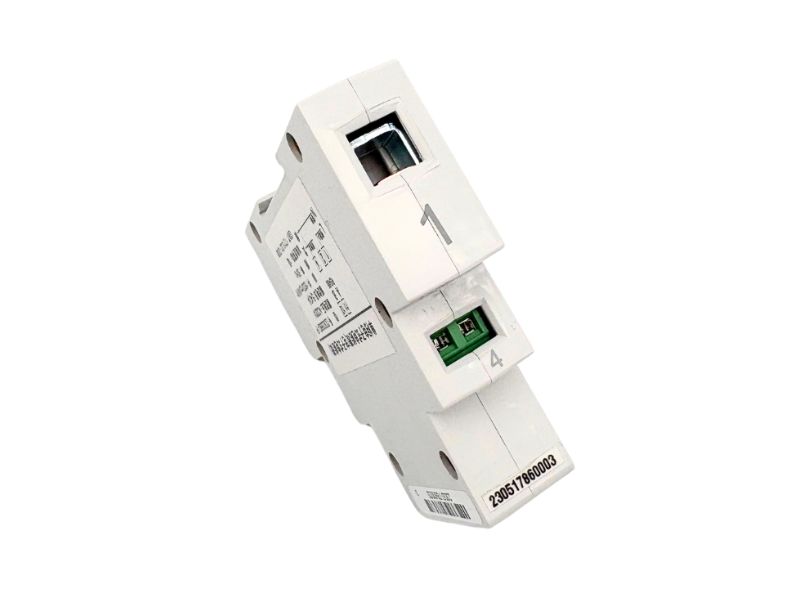

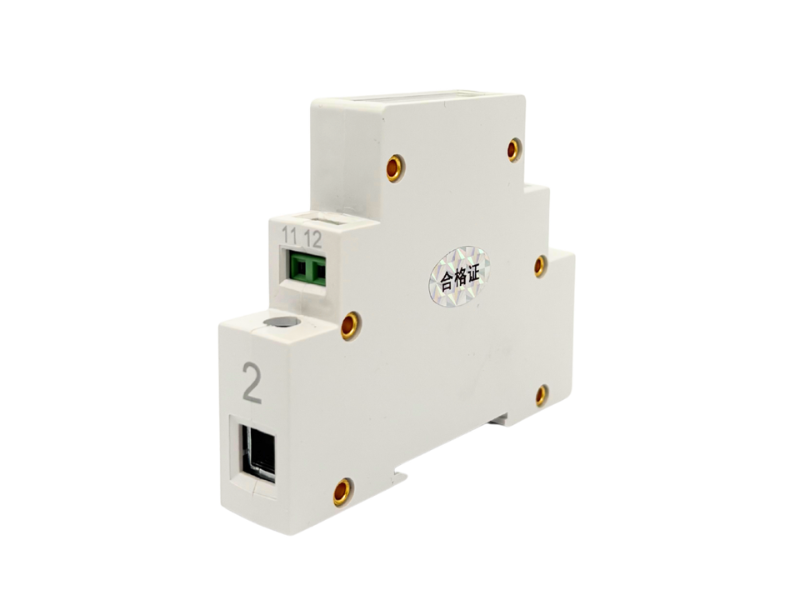

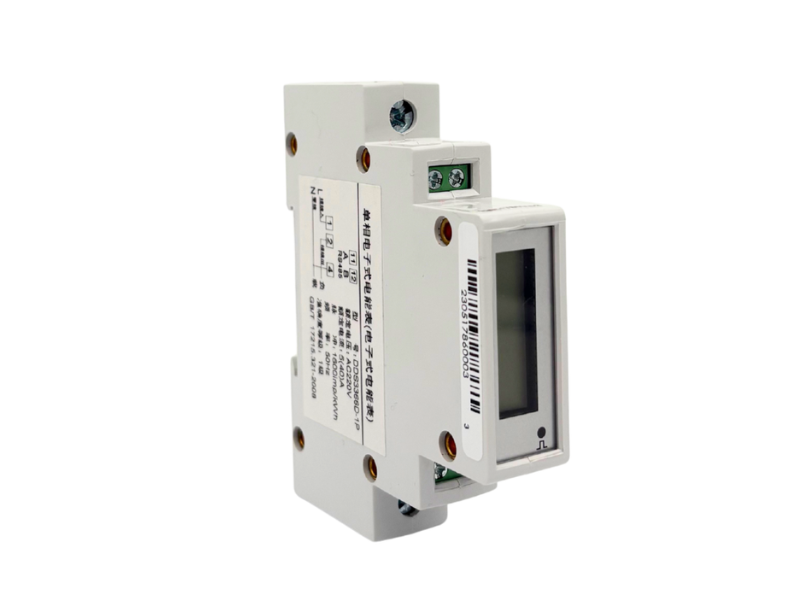

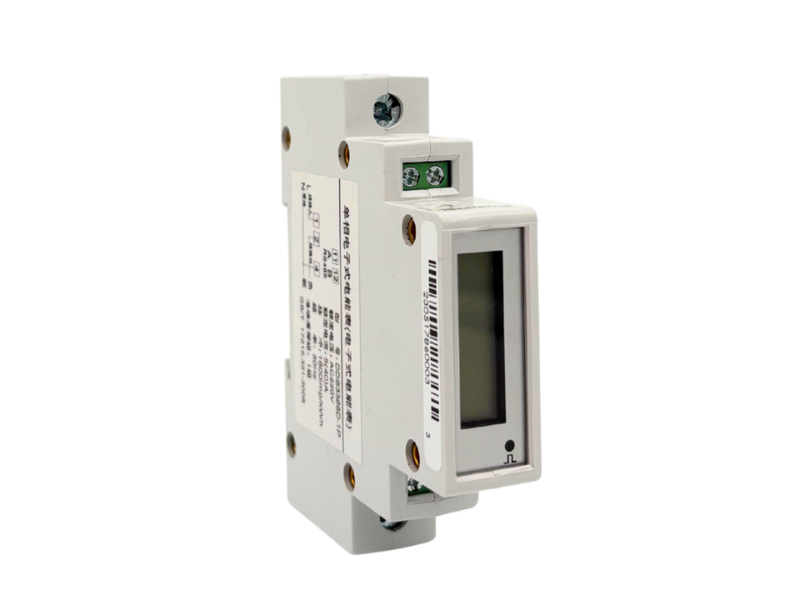

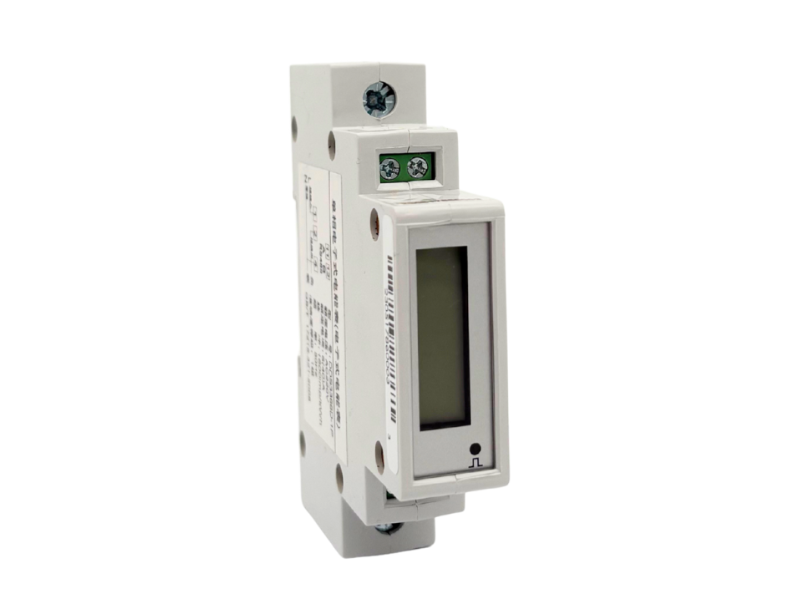

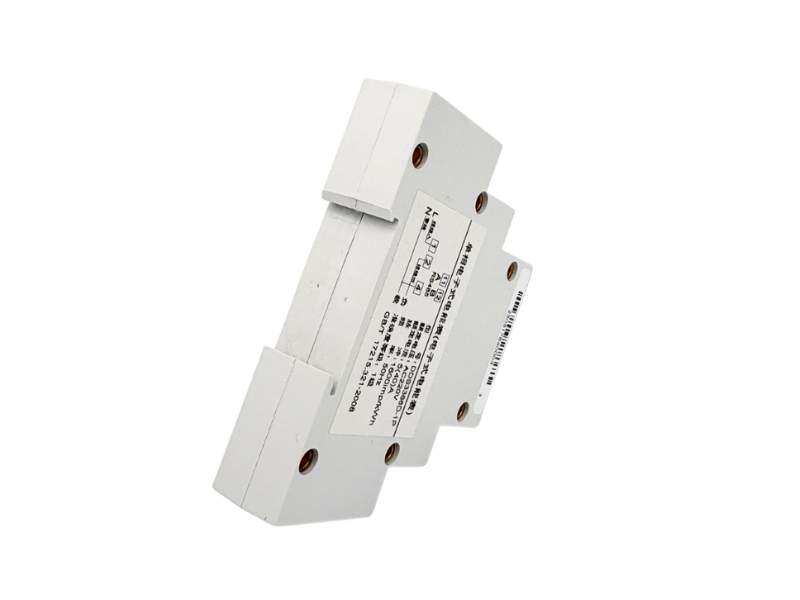

60A Direct Connection Single Phase Meter

DZS100-1P

• Measuring single phase current, voltage, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy

• 1* RS485, Modbus RTU and DL/T 645-1997/2007 protocol

• 1* energy pulse output

• LCD display

Request A Sample
Download
Description
FAQ

It is single-phase electronic watt-hour meter, which integrates measuring, metering, LCD display and communication in one. It is suitable for submetering, also be used for energy management in enterprises and public institutions.


Technical Parameters-DZS100-1P
Accuracy Class1
InputRated ValueVoltage: 220V; Current: 5(40)A, 10(60)A
OverloadVoltage: Sustained Overload: 1.2 times of the rated value
              Momentary Overload: 2 times of the rated value
Current: Sustained Overload: 1.2 times of the rated value
             Momentary Overload: 10 times of the rated value
Frequency45-60Hz
Functional ModulePulse Constant1600 imp/kWh, 800 imp/kWh
Interface

1 RS485; Modbus RTU or DL645 adaptive protocol;

Baud rate: 1200-9600bps

Power SupplyWorking RangeAC: 85-265V; DC:   85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -10℃~+50℃ Storage: -40℃~+70℃
HumidityRelative Humidity: <75% (place without corrosive gas)
Altitude<4000m
Dimensions90*18*72mm
InstallationStandard Din rail installation

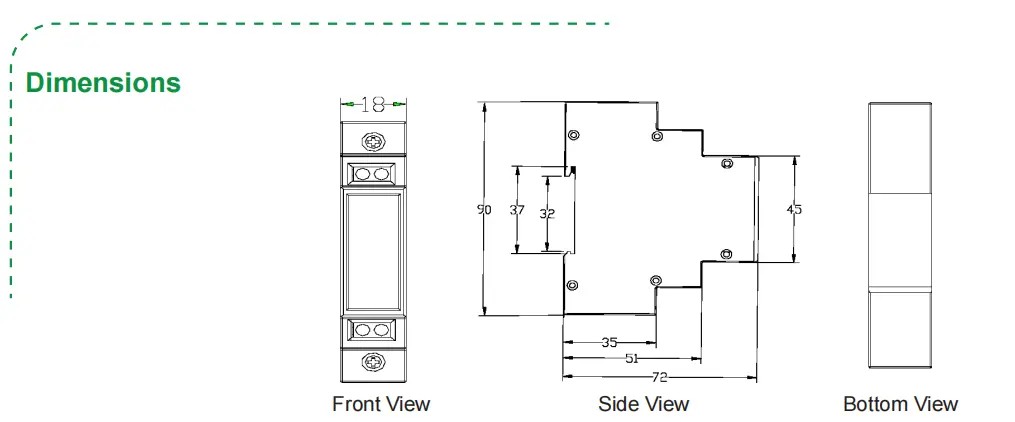

Dimensions

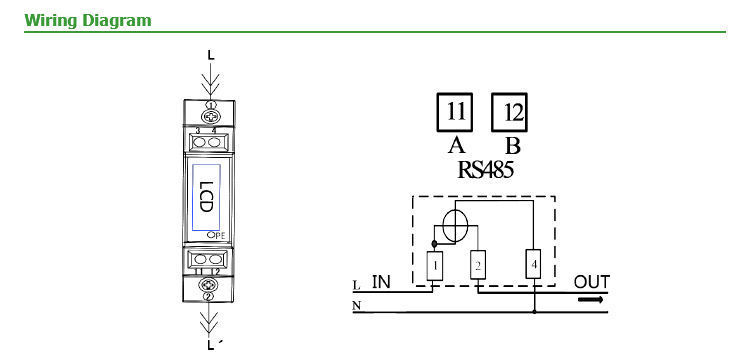

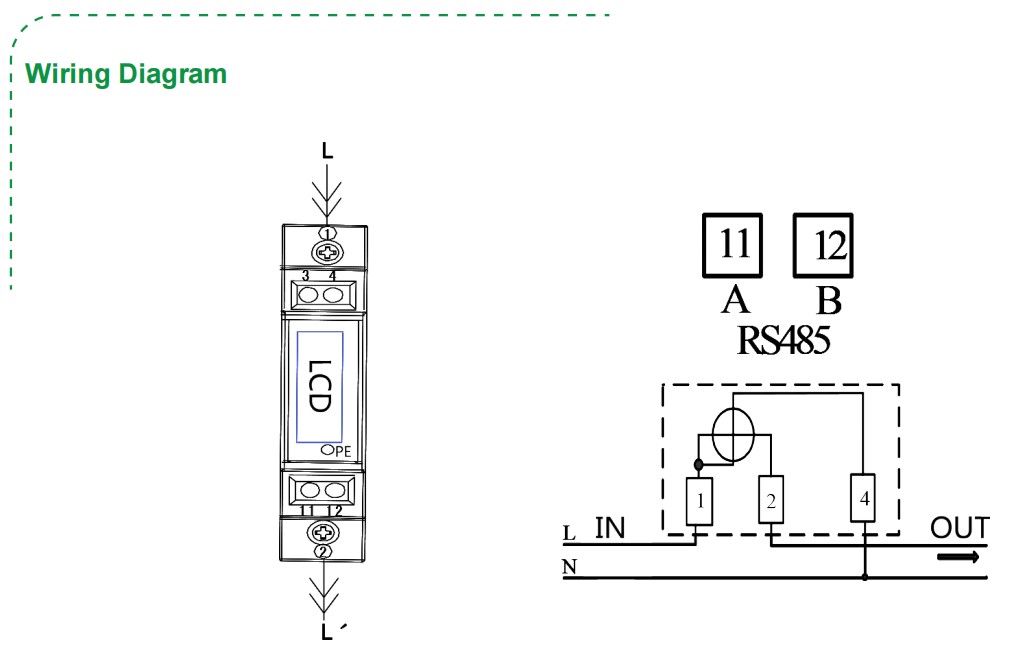

Wiring Diagram
