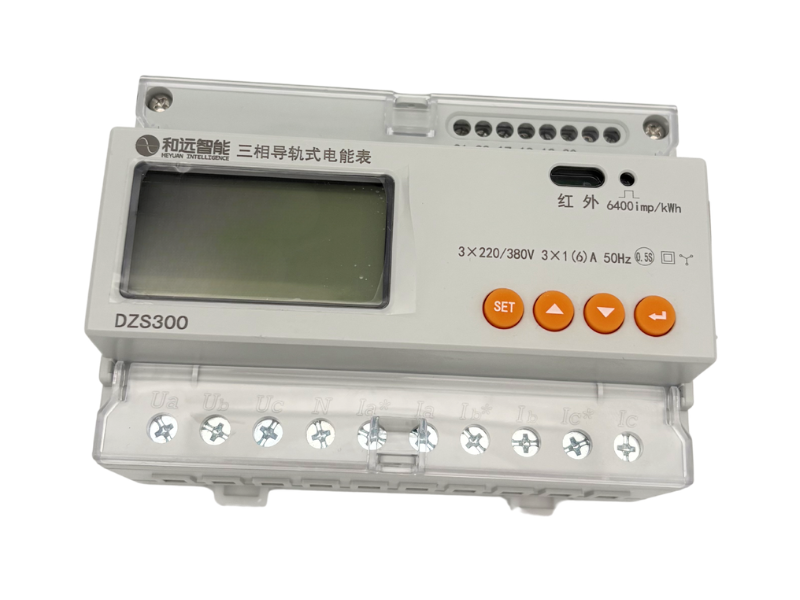

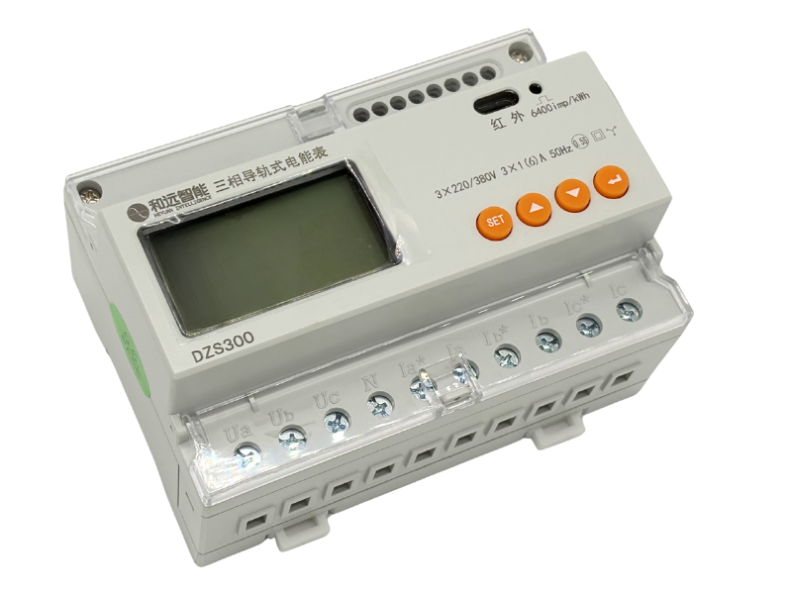

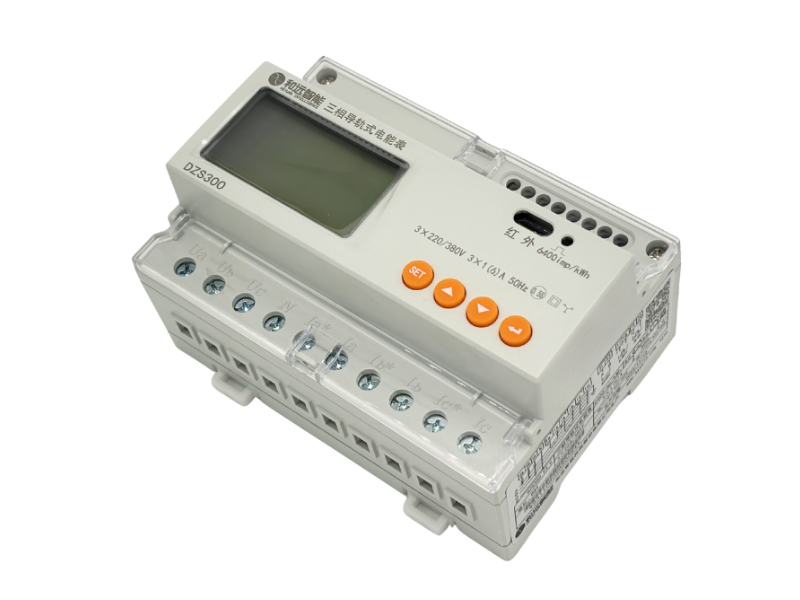

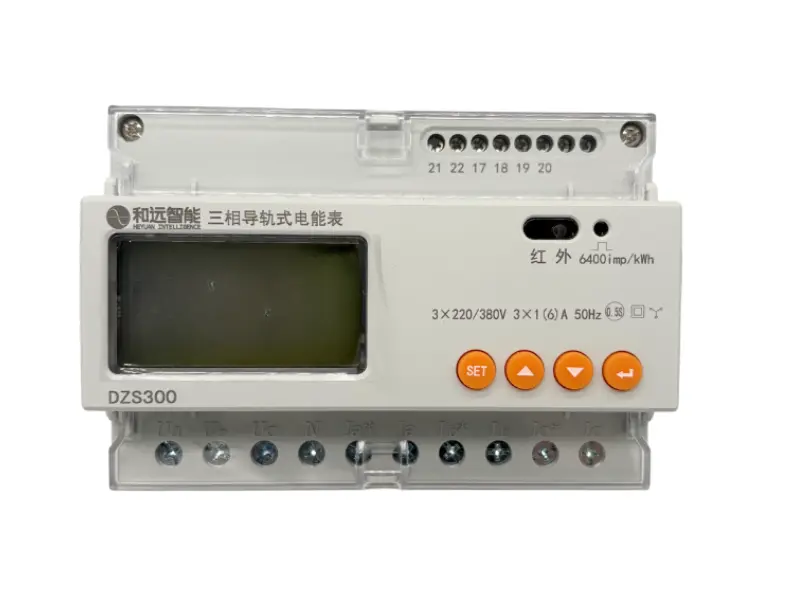

  • 5A CT / 80A Direct Connection 3 Phase Power Meter


( 1 customer revlew)

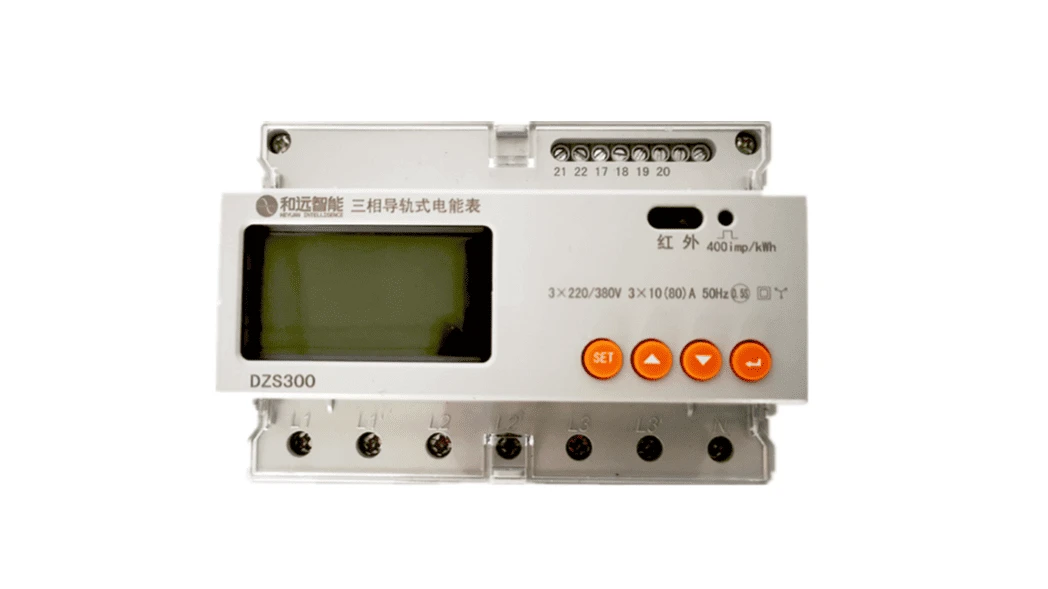

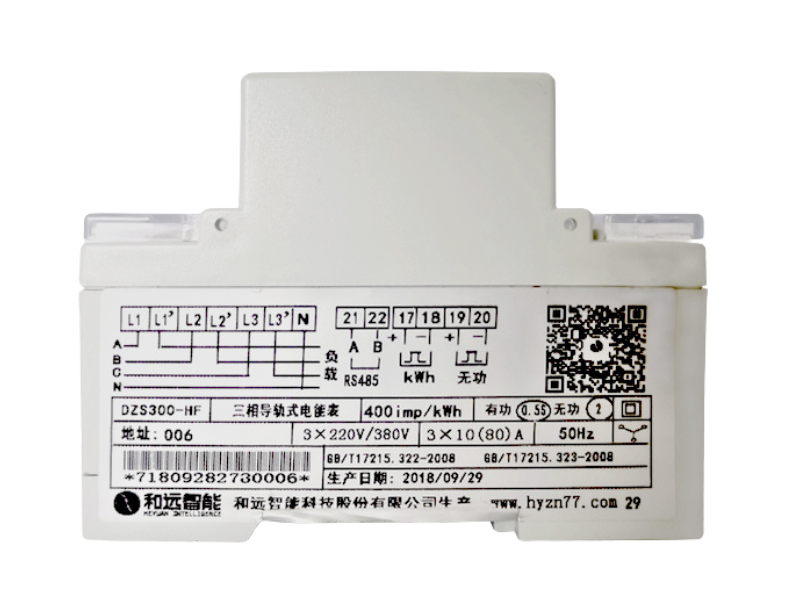

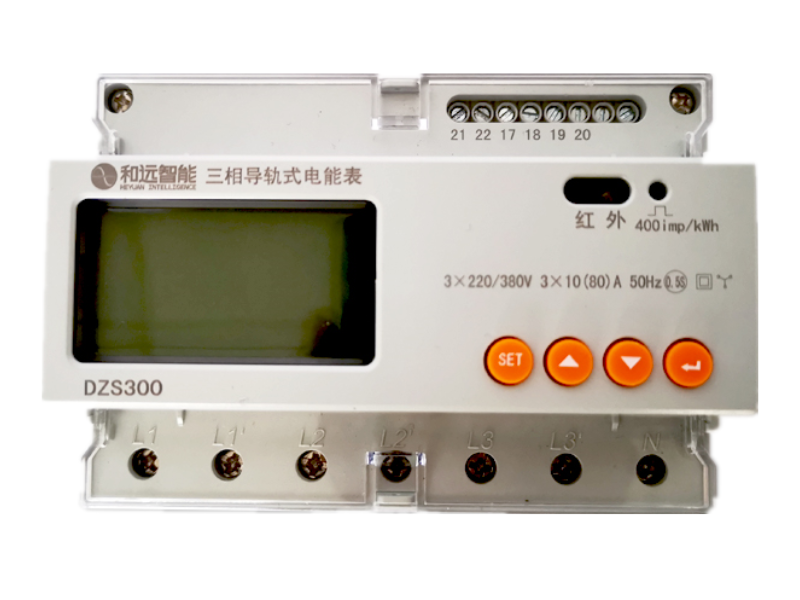

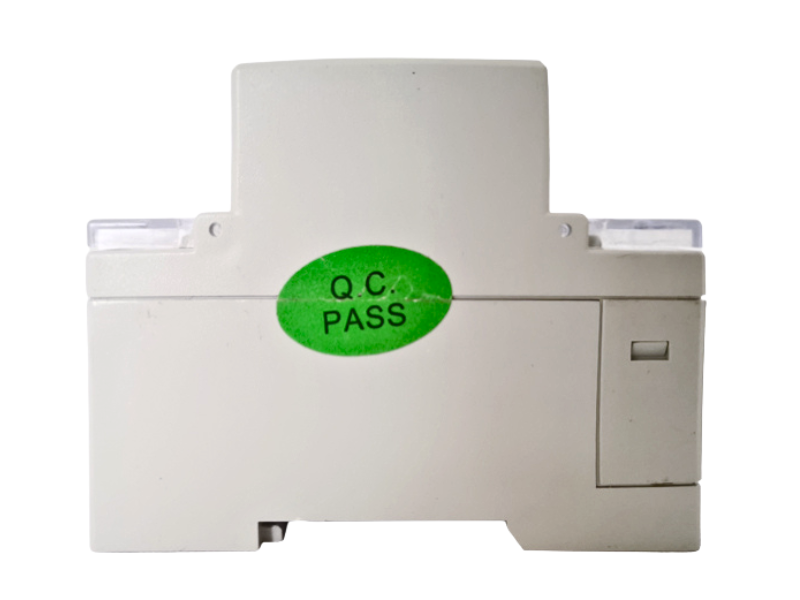

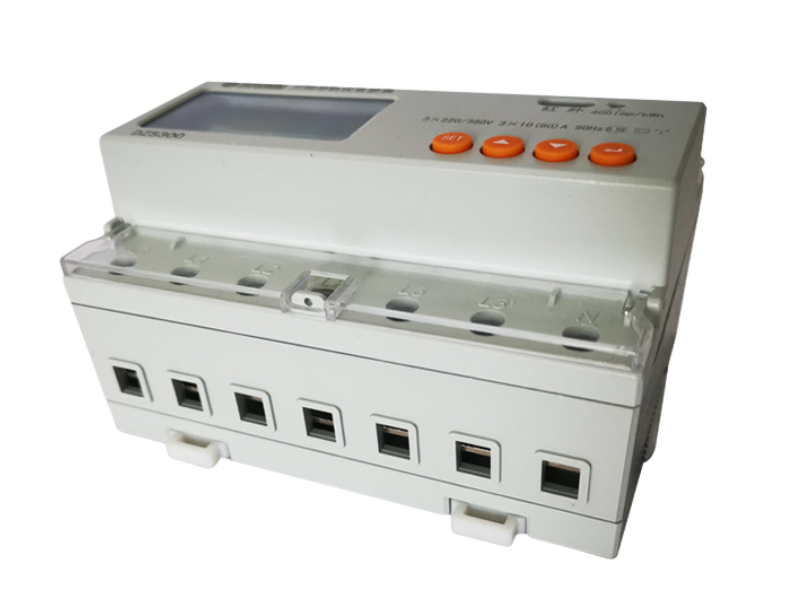

5A CT / 80A Direct Connection 3 Phase Power Meter
DZS300

• Measuring all parameters: three phase voltage, current, line voltage, frequency,

active power, reactive power, apparent power, power factor, active energy,

reactive energy, bidirectional energy metering

• 80A Direct / 5A CT connection

• Analysis of current/voltage harmonic (2-31times )

• Multi tariff (optional), available for querying past 12 months' energy

• 1* RS485, Modbus RTU protocol

• 1* energy pulse output

• LCD display

Pequest A Sample
Download
Description
FAQ
Reviews

It is used for energy measurements in three-phase electrical power network, which allows connection of additional relay contactors and DIN rail support. Also it support intelligent multi-tenant multi tarrif energy metering & billing system with Rs485 interface,  also distribution and energy management solutions.


Technical Parameters-DZS300
Accuracy   ClassVoltage: 0.2; Current: 0.2;  Frequency: 0.05 Hz; Power Factor: 1
Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5
Active Energy: 0.5S/1; Reactive Energy: 2
InputRated ValueVoltage: 3*220V /380V   Current: 1.5 (6)A, 20(80)A
OverloadVoltage: Sustained Overload: 1.2   times of the rated value
              Momentary Overload:2   times of the rated value
Current: Sustained Overload: 1.2 times of the rated value
             Momentary Overload:   10 times of the rated value
Frequency45-65Hz
Functional ModulePulse Output1
Interface

1*RS485; Modbus RTU / DL645 adaptive protocol;

Baud Rate:   1200-9600 bps

Power SupplyWorking RangeAC: 85-265V; DC:85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20°C~+65°C. Storage: -40°C~ +85°C
HumidityRelative Humidity: < 93% (place without corrosive gas)
Altitude<4000m

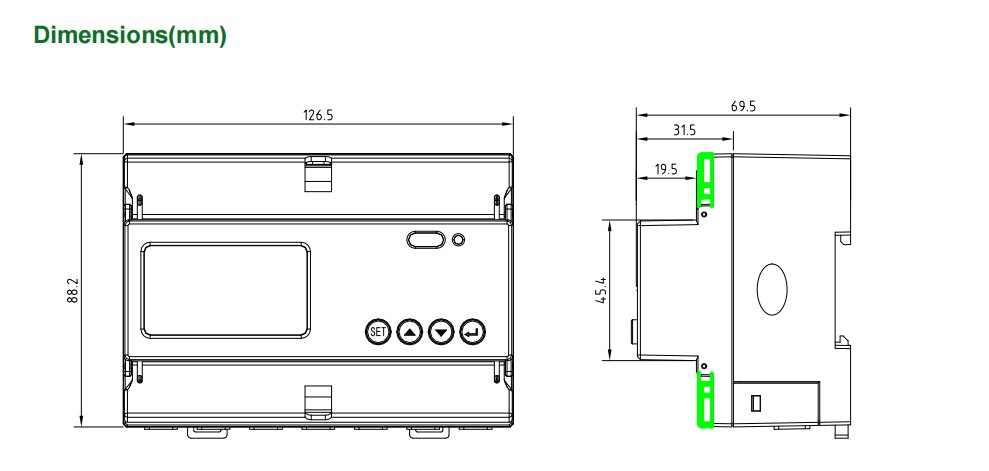

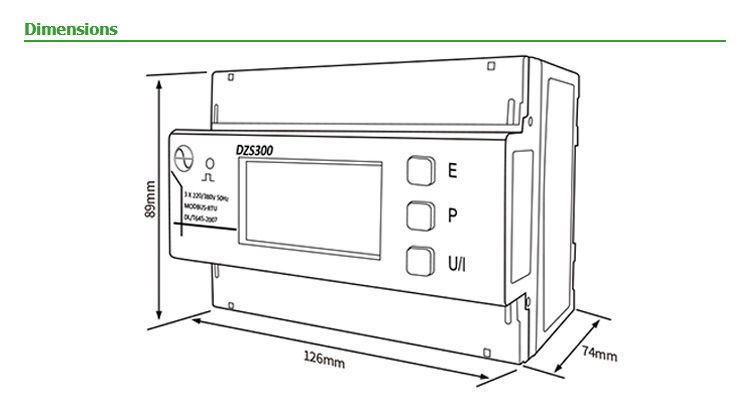

Dimensions:126×89×74mm

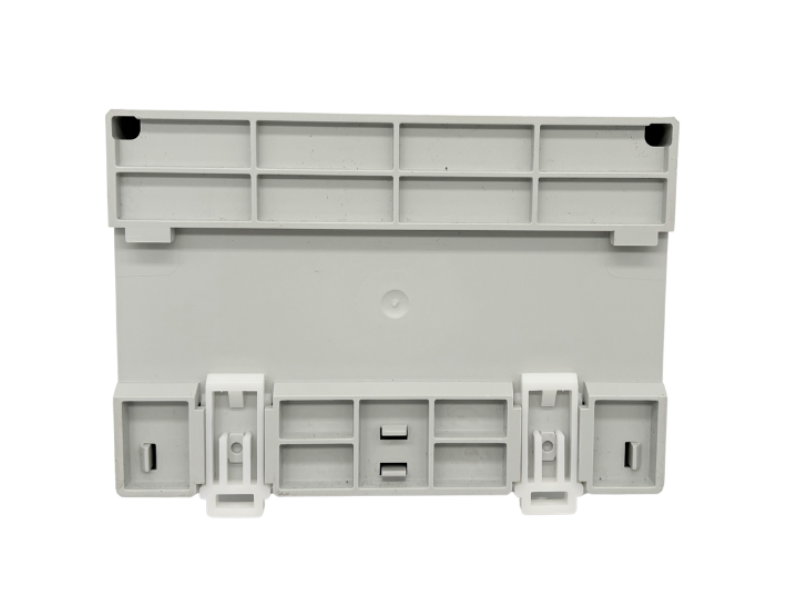

InstallationStandard Din rail installation





Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to

quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
