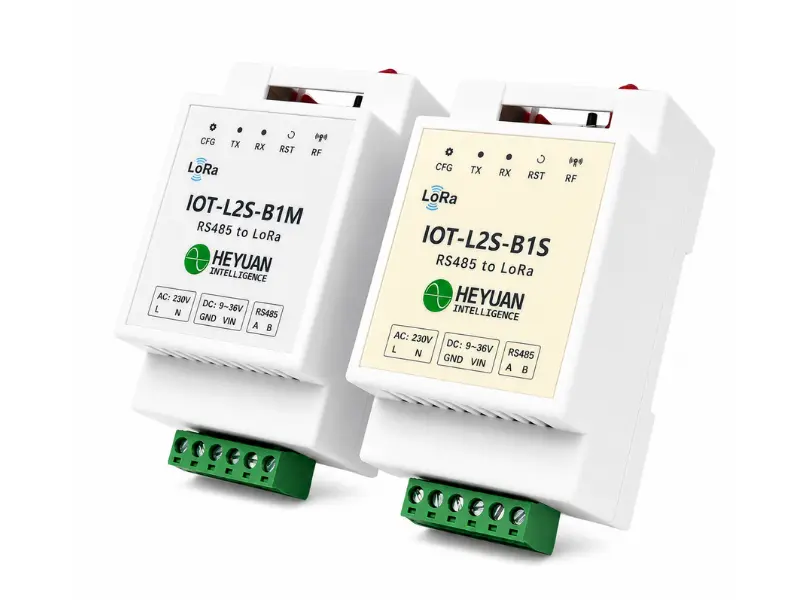

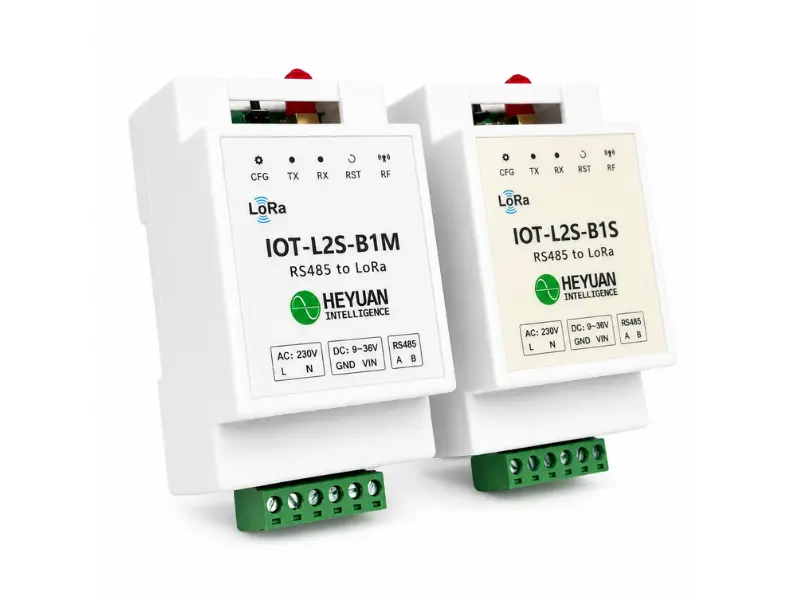

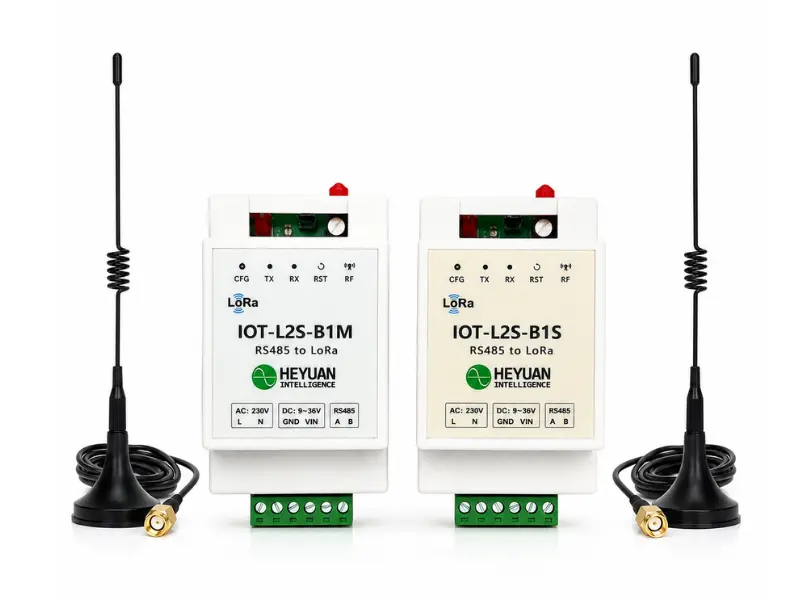

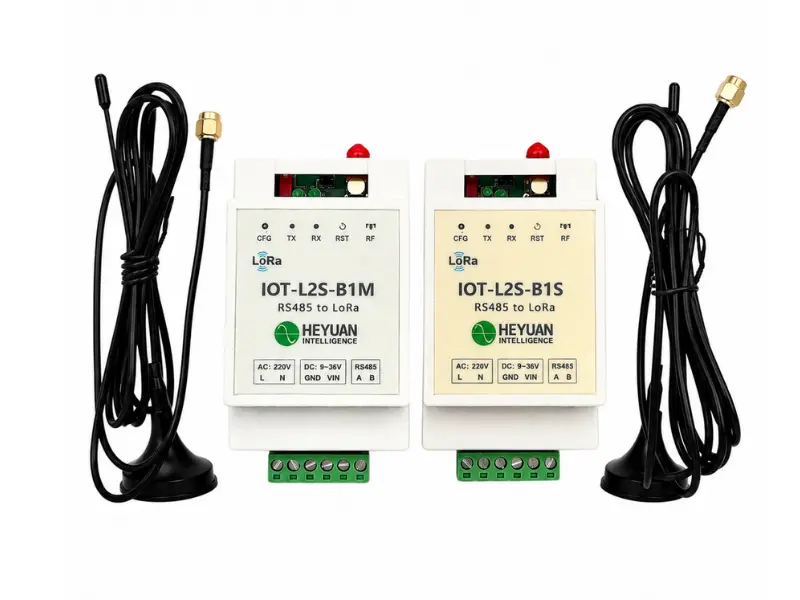

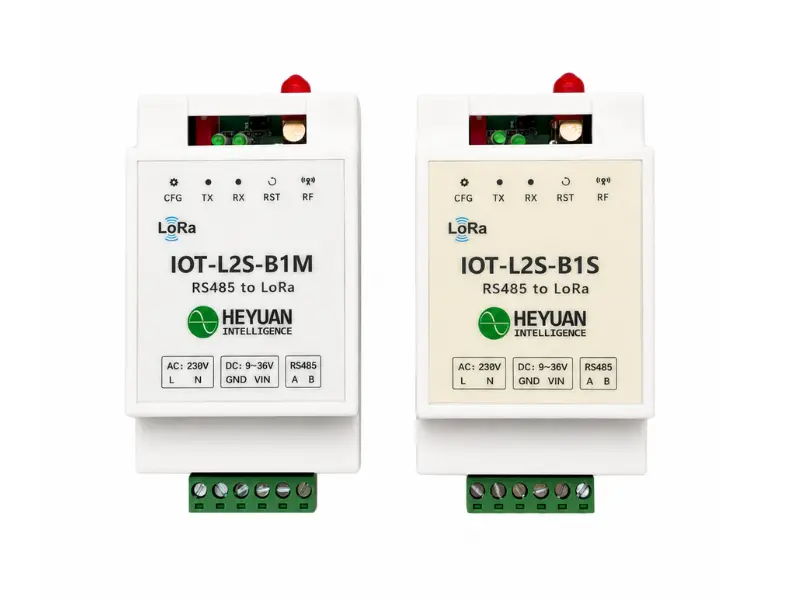

AC RS485 to LoRa Wireless Data Converter
· Working frequency:433Mhz / 470MHz
· LoRa RF chip LLCC68 from Semtech
· Isolated RS485 interface, Modbus RTU protocol
· Long distance point to point transparent data transmission
· Self-organizing network: self-routing and self-recovery, anti-interference
· Supports point-to-point communication between nodes and extends node reachability through multi-hop communication
· low-cost, flexible, and easy-to-configure “out-of-Internet”communication
Heyuan new wireless 433MHz LoRa transmitter receiver data transmission modules, Model No.IOT-L2S-B1M/S are designed and manufactured based on the LLCC68 LoRa RF chip from Semtech.
The master module can be connected with the gateway via the RS485 port. The slave module can be connected with the sensors or meters via the RS485 port, and it can also work as an end node and repeater simultaneously. The work mode can be set through the configuration tool. To meet the application needs of different customers, users can form a networking transmission without blind spots and distance limitations by combining multiple modules.

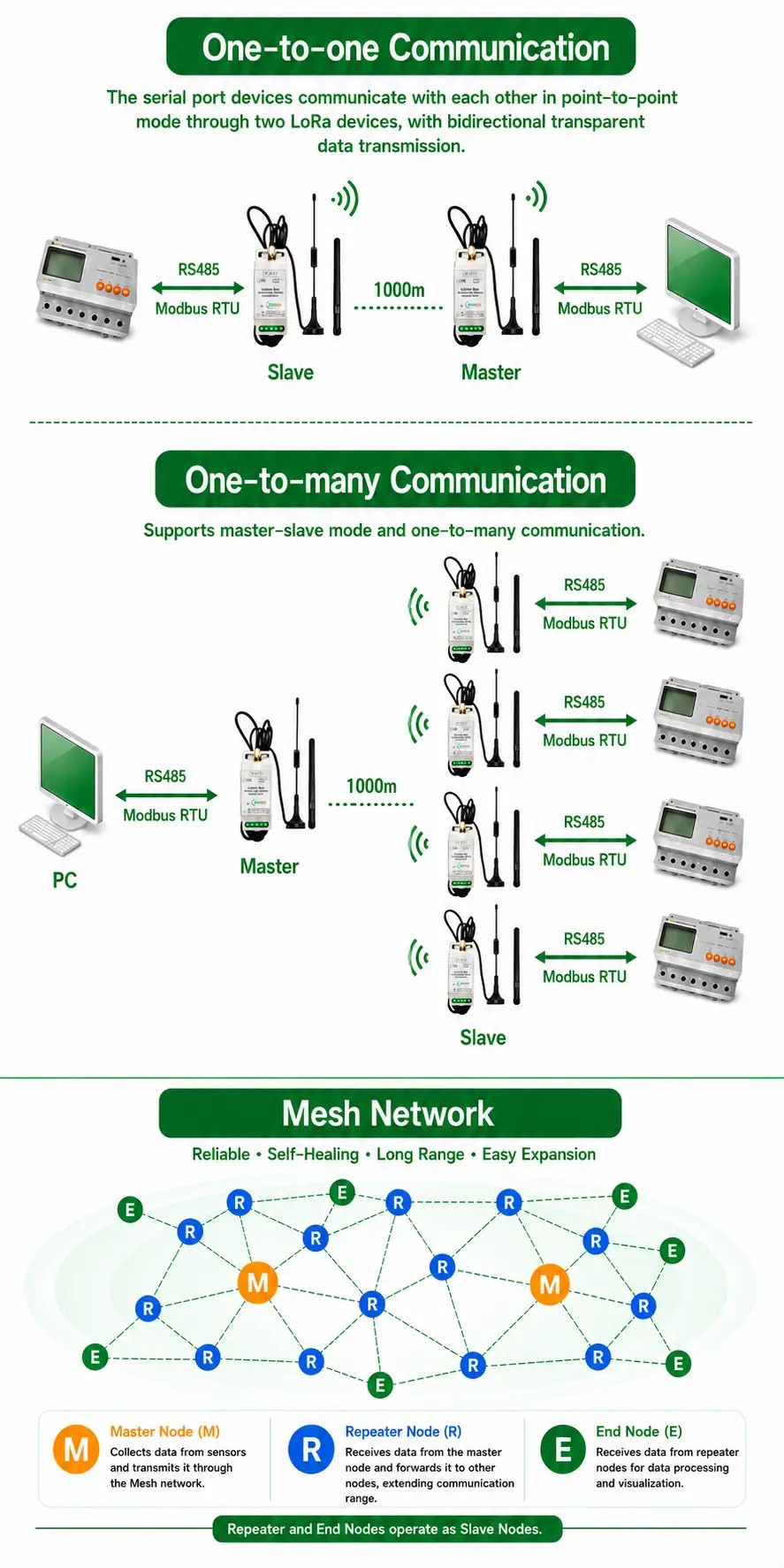

Communication Method

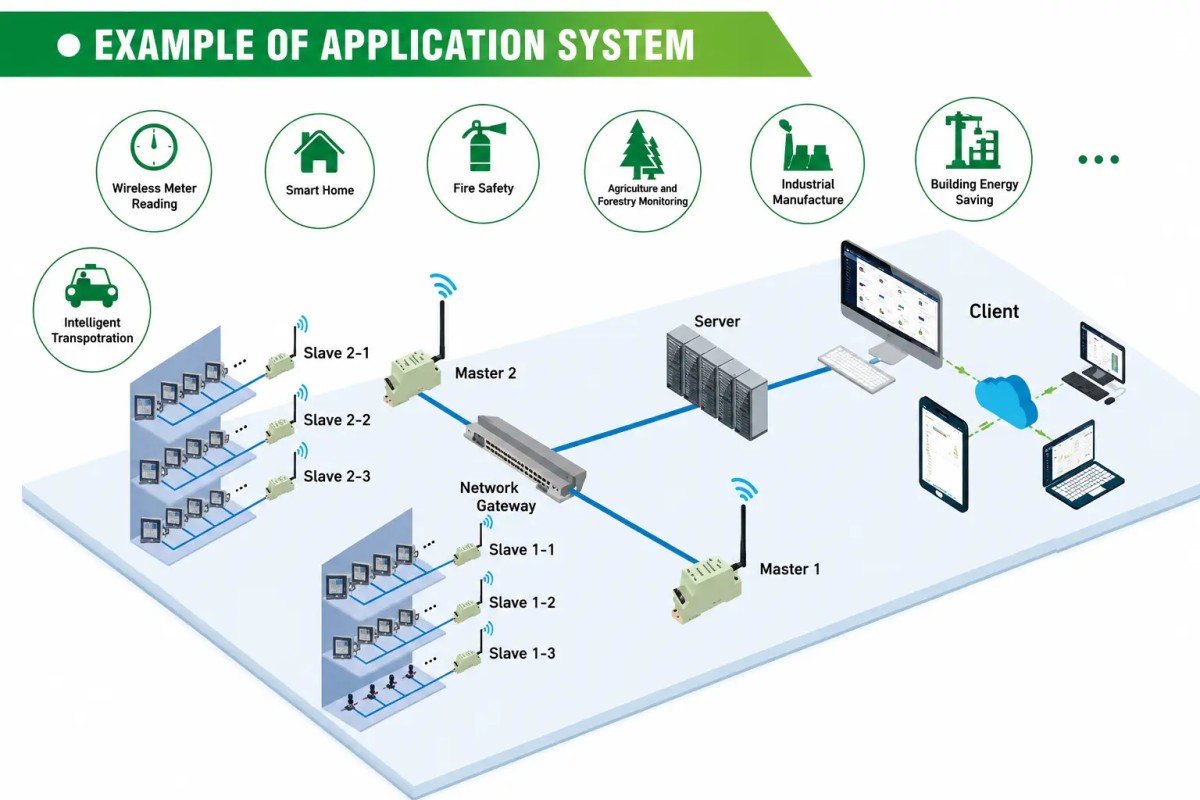

Application
Q1: How long is your delivery time?
A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q2: Do you provide samples ? is it free or extra ?
A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q3: What is your terms of payment ?
A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
