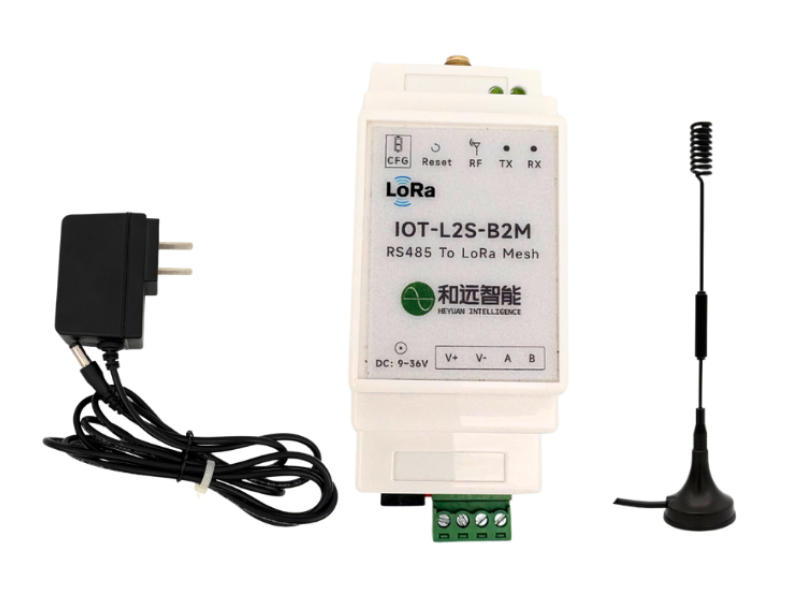

RS485 to LoRa Wireless Data Converter
Working frequency:433Mhz / 470MHz
LoRa RF chip LLCC68 from Semtech
Isolated RS485 interface, Modbus RTU protocol
Long distance point to point transparent data transmission
Self-organizing network: self routing and self recovery, anti-interference
Supports point-to-point communication between nodes and extends node reachability through multi-hop communication
low-cost, flexible, and easy-to-configure “out-of-Internet”communication
Heyuan RS485 to LoRa 433MHz Wireless Data Transmission Converter
Heyuan new wireless 433MHz LoRa transmitter receiver data transmission modules, Model No.IOT-L2S-B2M/S are designed and manufactured based on LLCC68 LoRa RF chip from Semtech.

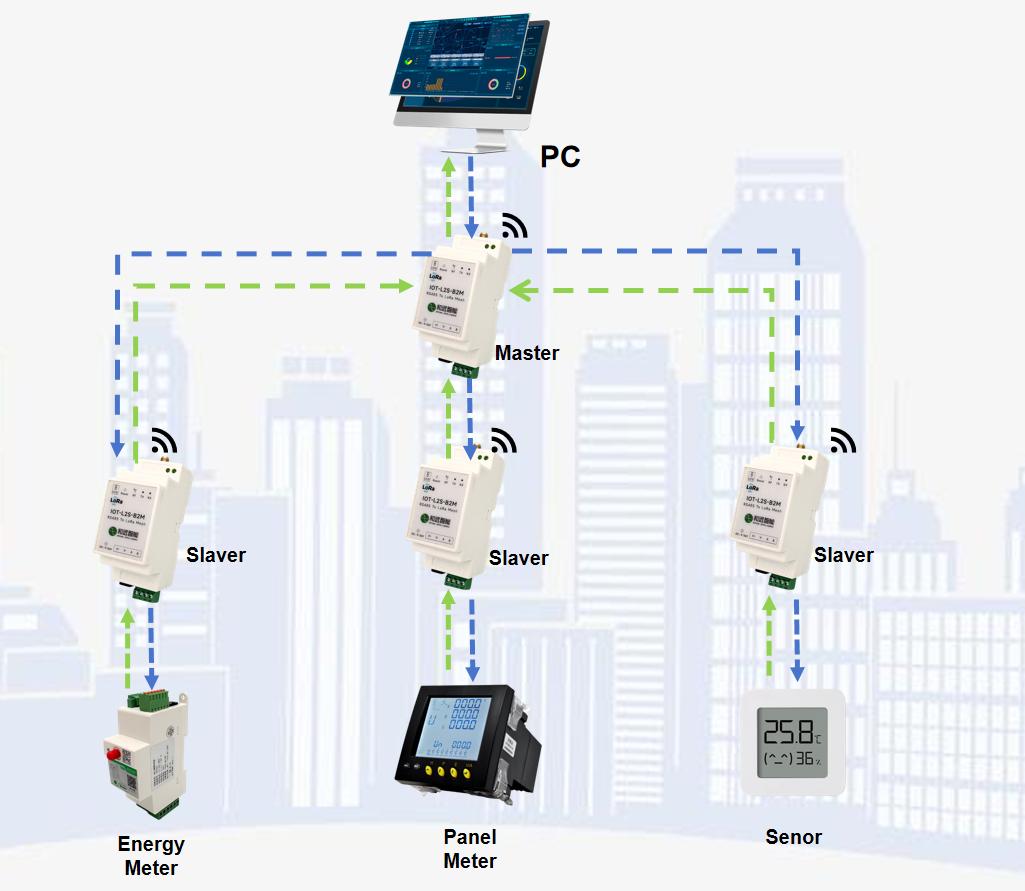

The master module can be connected with the gateway via the RS485 port.The slave module can be connected with the sensors or metes via the RS485 port, and it can also work as an end node and repeater simultaneously. The work mode can be set through the configuration tool. To meet the application needs of different customers, users can form a networking transmission without blind spots and distance limitations by combining multiple modules.

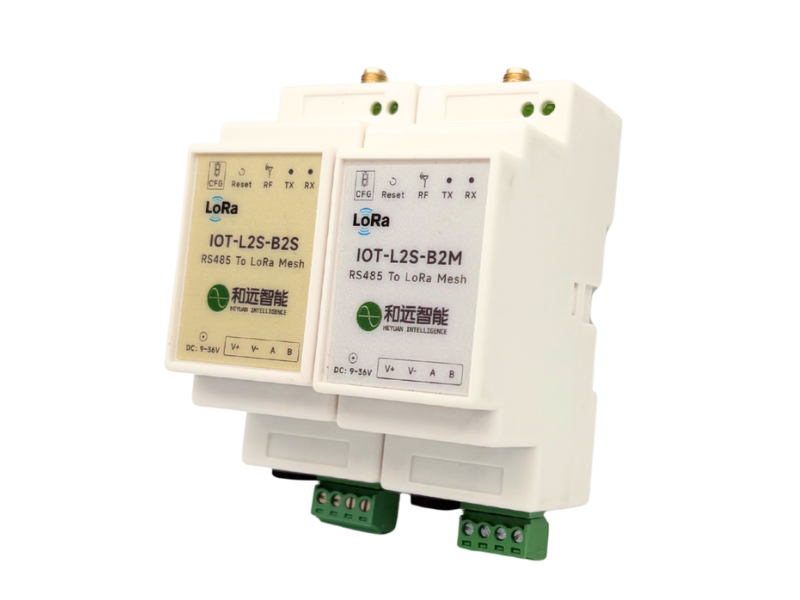

IOT-L2S-B1MS (85-300VAC)
IOT-L2S-B2MS (9-36VDC)

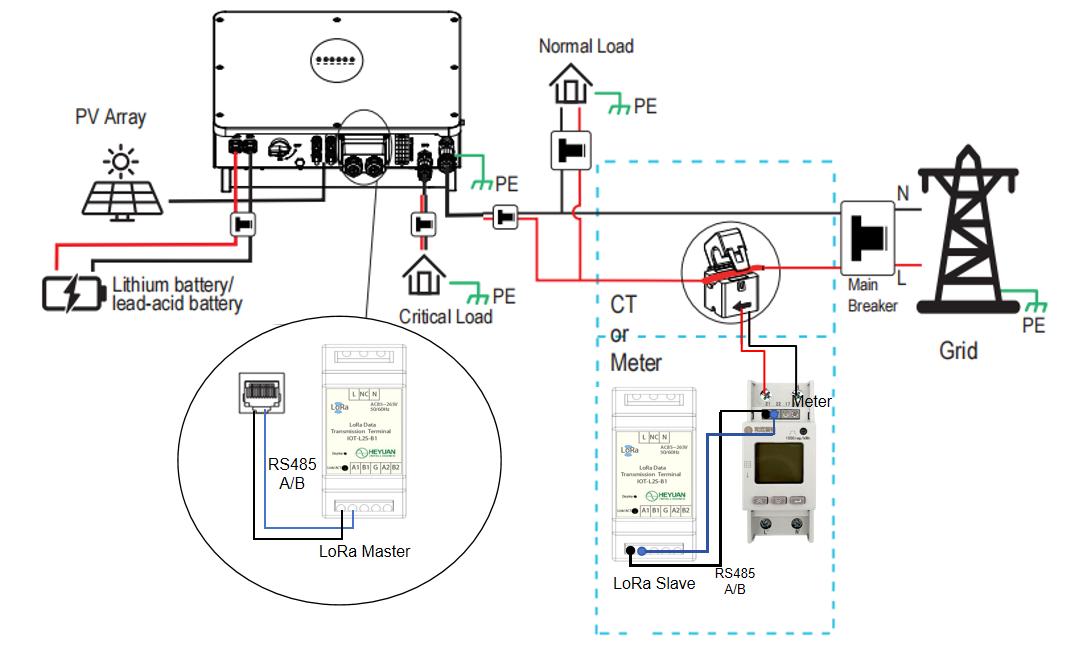

PV Monitoring
· Wireless acquisition by connecting to microinverters
· Reduce cable deployment, save costs, and be aesthetically pleasing
· Monitoring of photovoltaic power generation data
· Suitable for photovoltaic and energy storage industries
Transparent Transmission(Point-to-Multipoint)
· LoRaPMAC/LoRa Radio
· Without the gateway, a lower cost
· Easily interface with RS-485 devices or sensors
· Reduce cable deployment for aesthetics
· Multiple connections
· Stronger penetration
· Ideal for Engineering Wireless Retrofit Projects

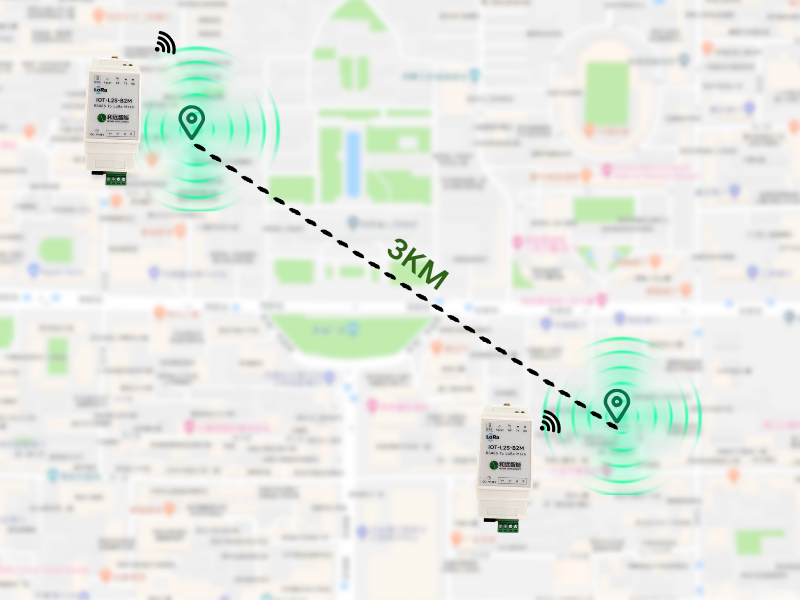

Transparent Transmission(Point-to-Point)
· In an open environment, the communication distance can reach 3km
· Optional frequency band: EU433/CN470

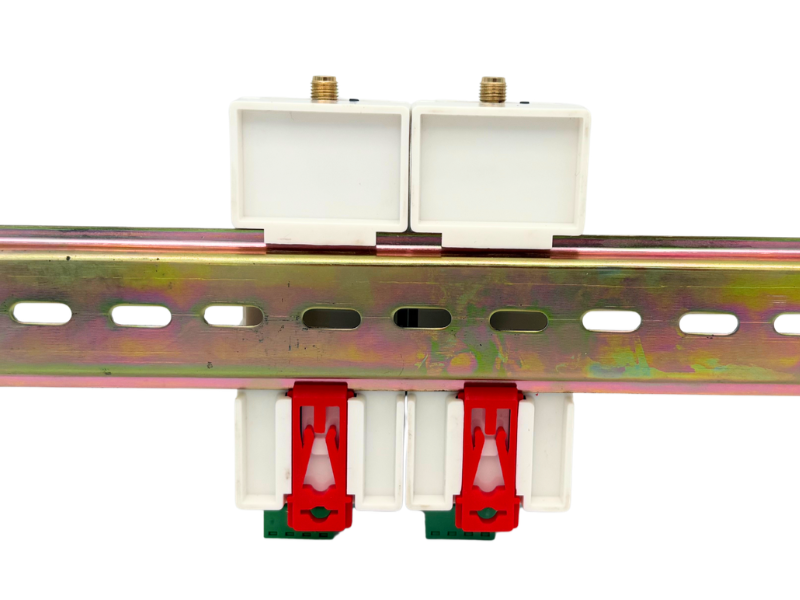

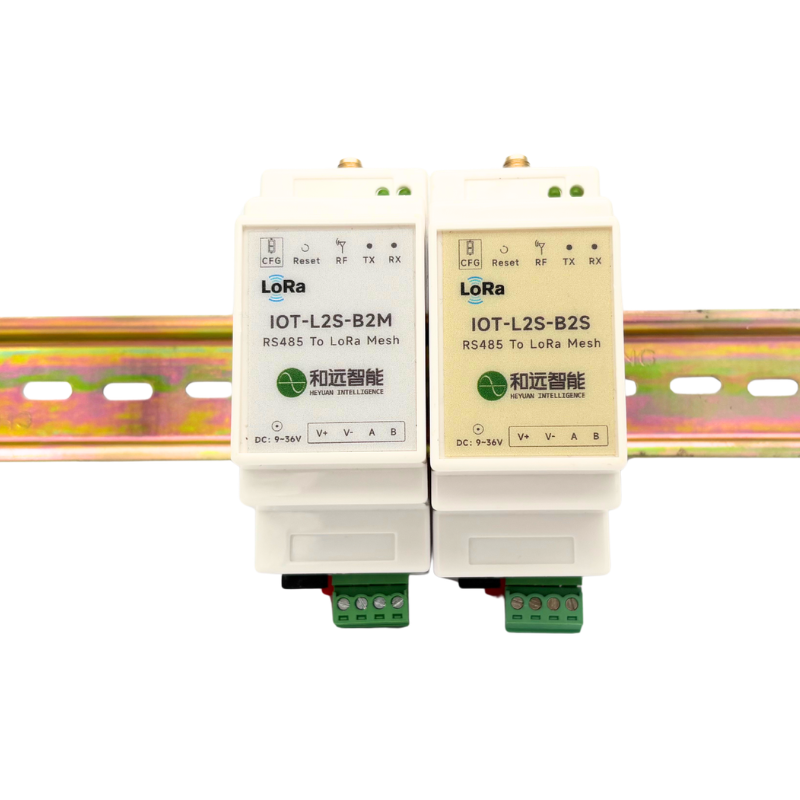

DIN-Rail Mounting
· 35mm standard rail installation
· Flame retardant plastic shell
· 1 channel RS-485(default 9600bps)
· Standard sucker antenna
