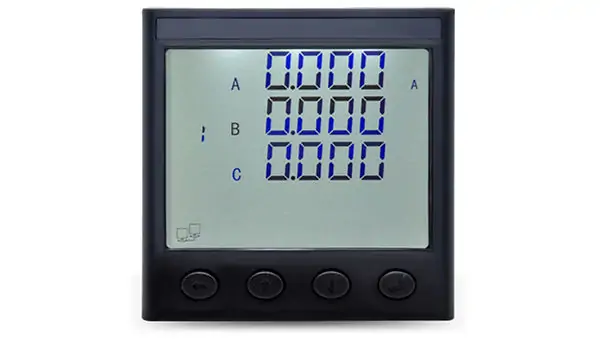

  • 3 Phase Digital Ampere Meter MS3I7C

3 Phase Digital Ampere Meter MS3I7C
MS3I7C

• Measuring three-phase current

• Standard CT connected, suitable for various wiring modes under high or low pressure environments

• 1* RS485, Modbus-RTU communication protocol

• LCD display

Request A Sample
Download
Description
FAQ

This ampere meter is designed for taking AC current measurements up to 5 A, 45-60Hz, and it is available in various electronic industries for controlling and reading current supply.


Technical Parameters-MS3I7C
Accuracy ClassCurrent: 0.2
InputRated ValueCurrent: 1A/5A
OverloadCurrent: Sustained Overload: 1.2 times of the rated value
       Momentary Overload:   10 times of the rated value
Frequency45-60Hz
Functional ModulePulse Output2
Interface

1*RS485; Modbus RTU Communication Protocol;

Baud Rate:   1200-19200 bps

DI2-4DI
DO2DO
Power SupplyWorking RangeAC: 85-265V; DC:85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20°C~+70°C. Storage: -40°C~ +80°C
HumidityRelative Humidity: ≤93% (place without corrosive gas)
Altitude≤4000m
Dimensions:68×68mm
InstallationPanel Installation

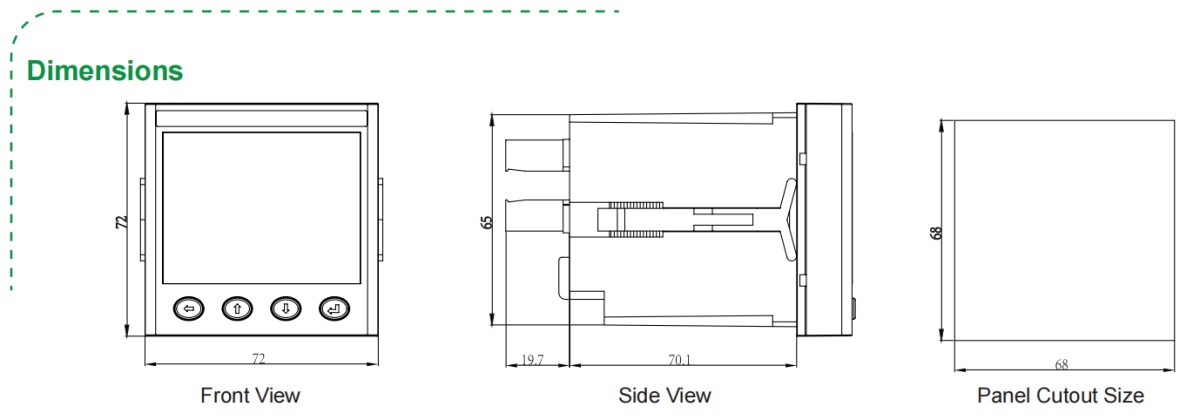

Dimensions

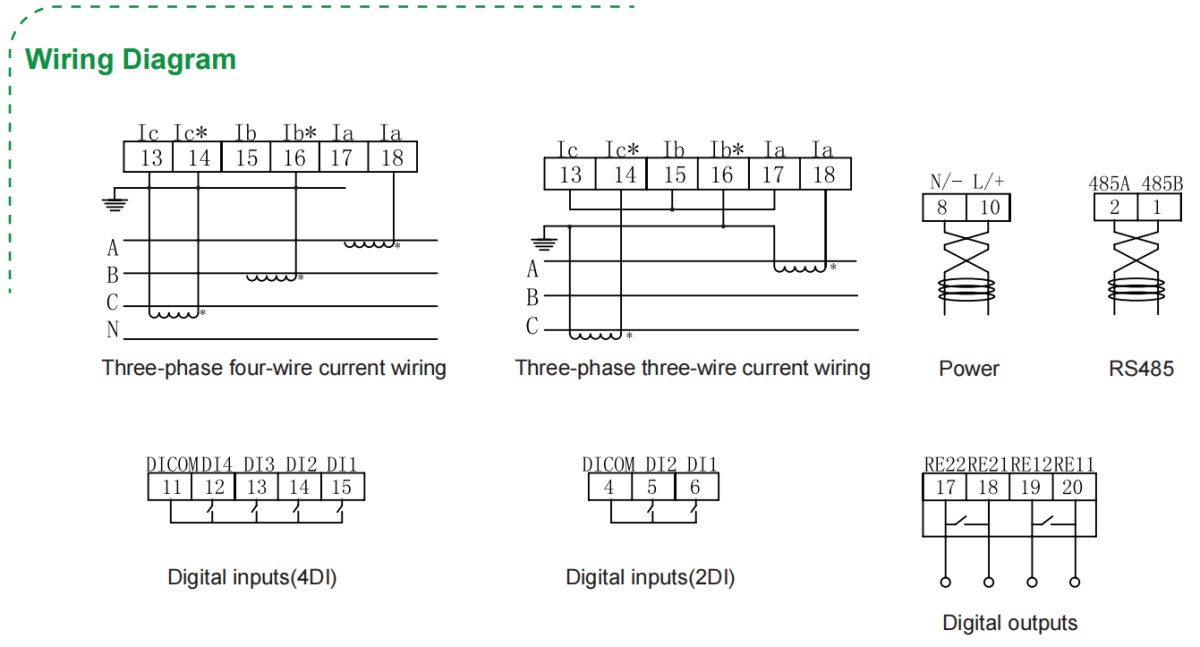

Wiring Diagram

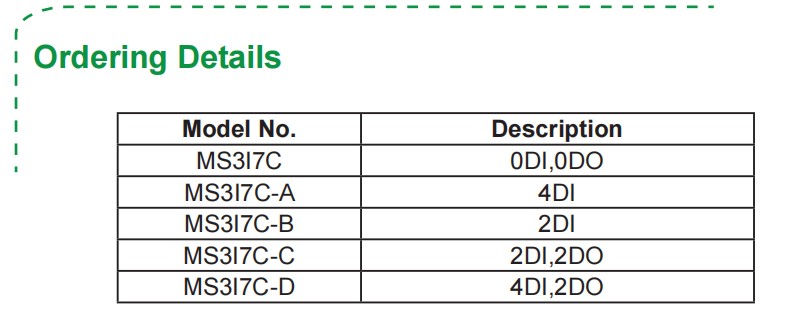

Ordering Details


Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
