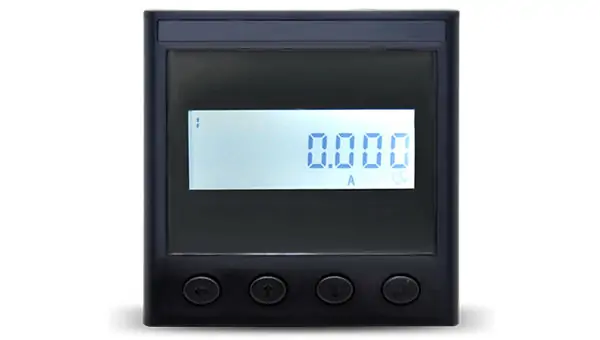

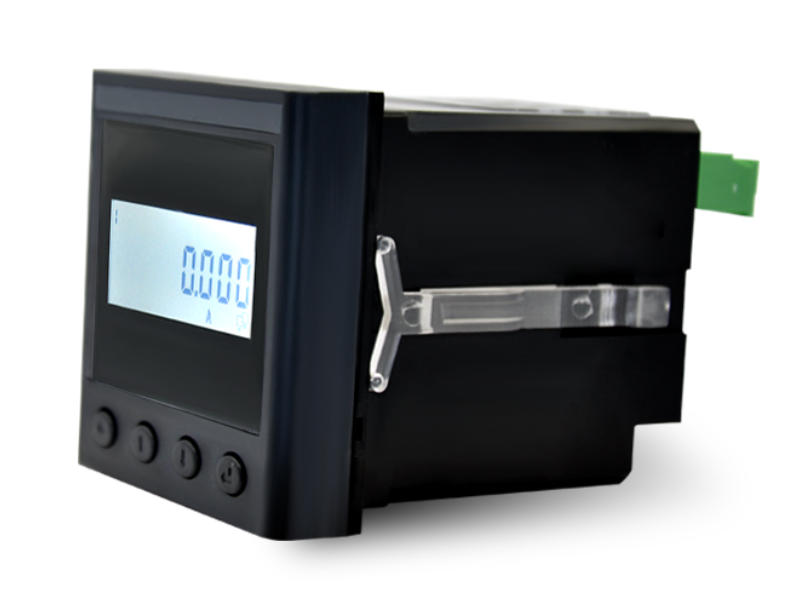

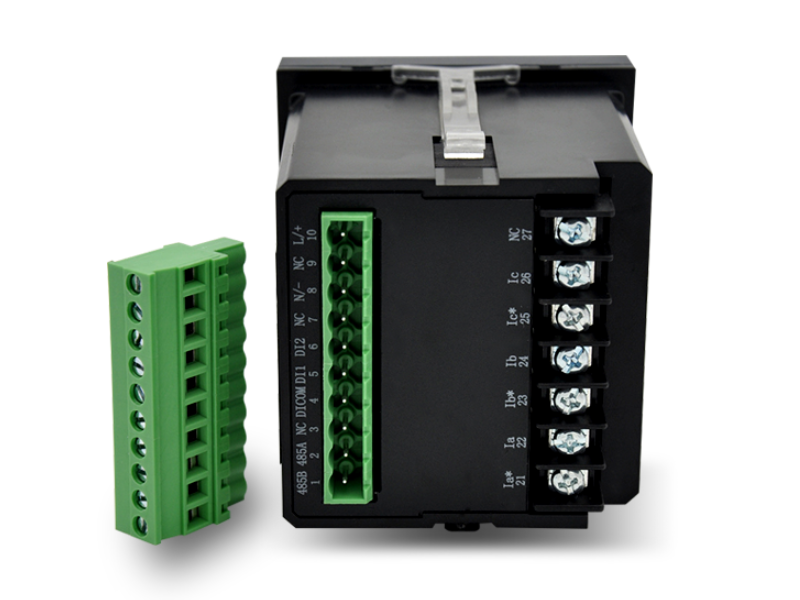

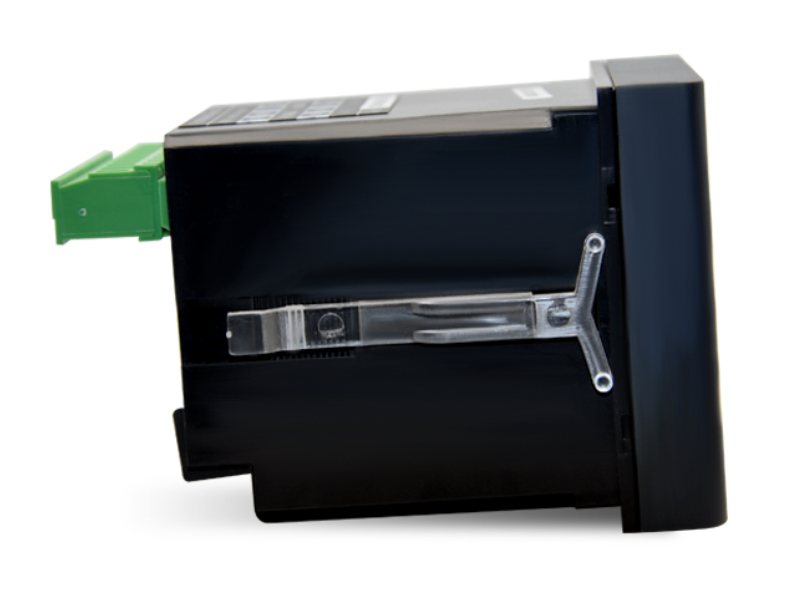

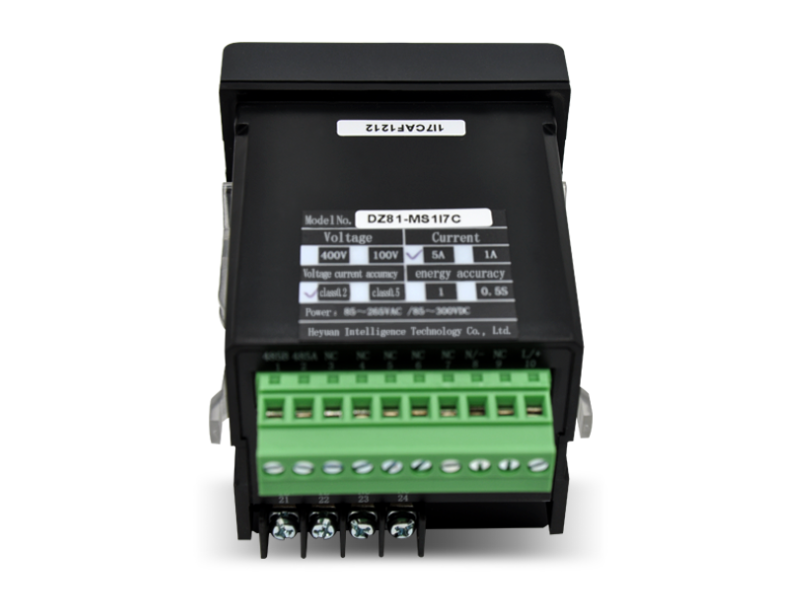

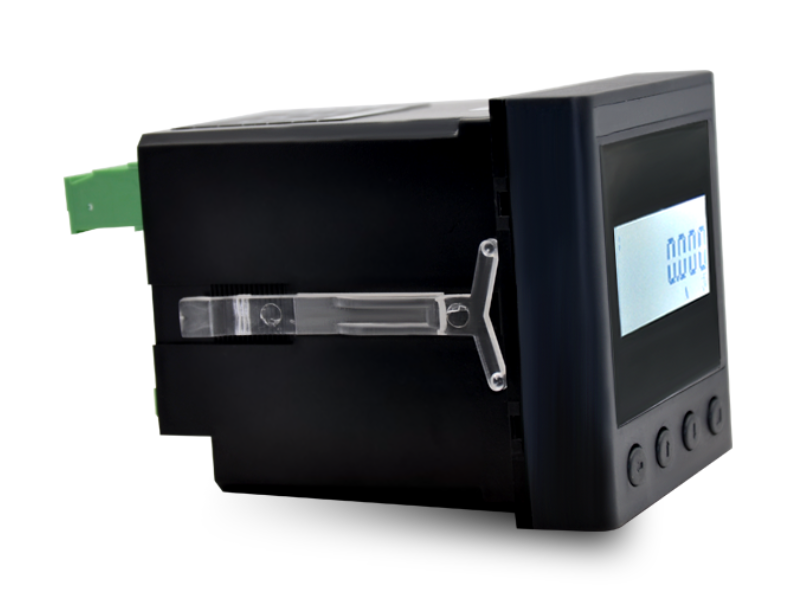

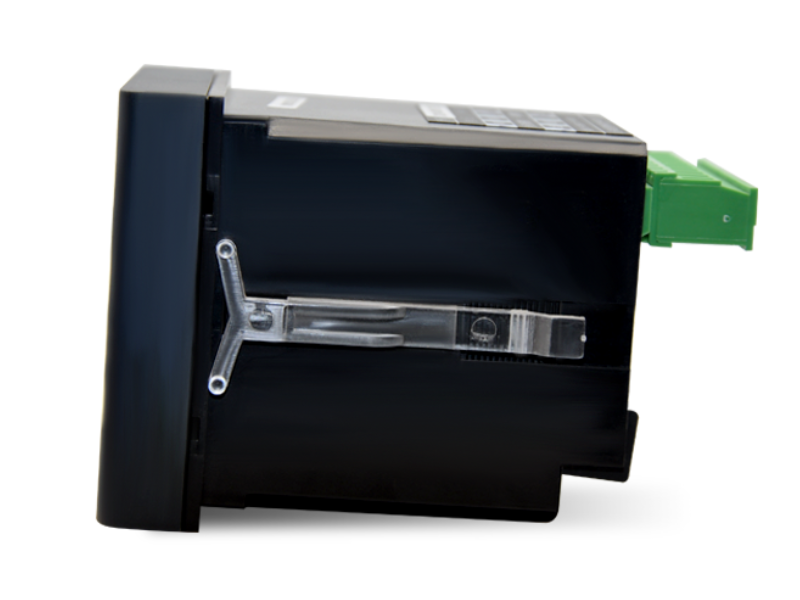

Single Phase Digital Ammeter MS1I7C
MS1I7C

  • Measuring single phase voltage

  • Standard CT connected, suitable for various wiring modes

  • 1* RS485, Modbus RTU communication protocol

  • LCD display

Request A Sample
Download
Description
FAQ

This Single phase digital ammeter is applicable for electric power grid and automation control systems, mainly used to measure current with high accuracy, good stability, and good resistance to vibration and intuitive display.

Technical Parameters-MS1I7C
Accuracy ClassCurrent: 0.2
InputRated ValueCurrent: 1A//5A
OverloadVoltage: Sustained Overload: 1.2   times of the rated value
           Momentary Overload:10 times of the rated value
Frequency45-60Hz
Functional ModuleInterface1*RS485; Modbus RTU Communication Protocol; Baud Rate: 1200-19200bps
DI

2-4DI

DO0DO
Power SupplyWorking RangeAC: 85-265V; DC:85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20°C~+70°C. Storage: -40°C~ +80°C
HumidityRelative Humidity: ≤ 93% (place without corrosive gas)
Altitude≤4000m
Dimensions68×68mm
InstallationPanel installation

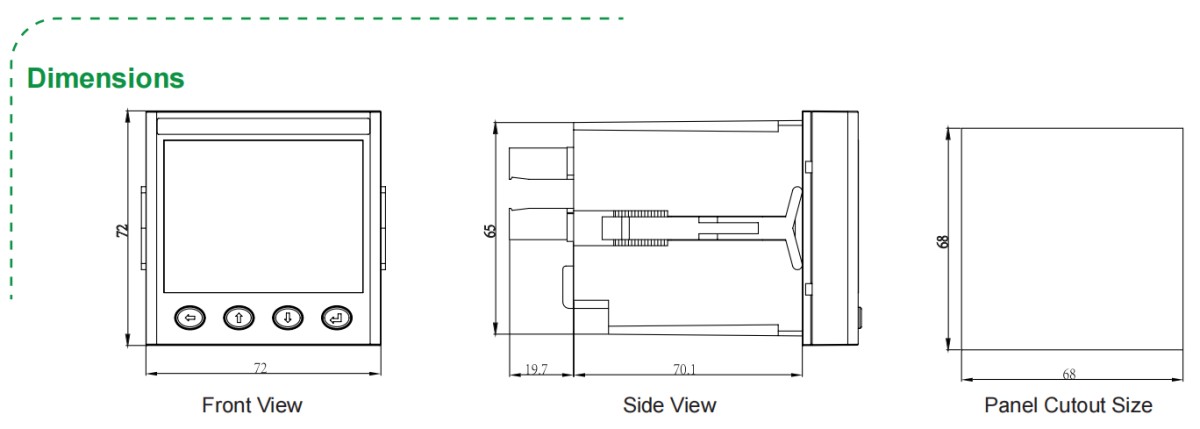

Dimensions

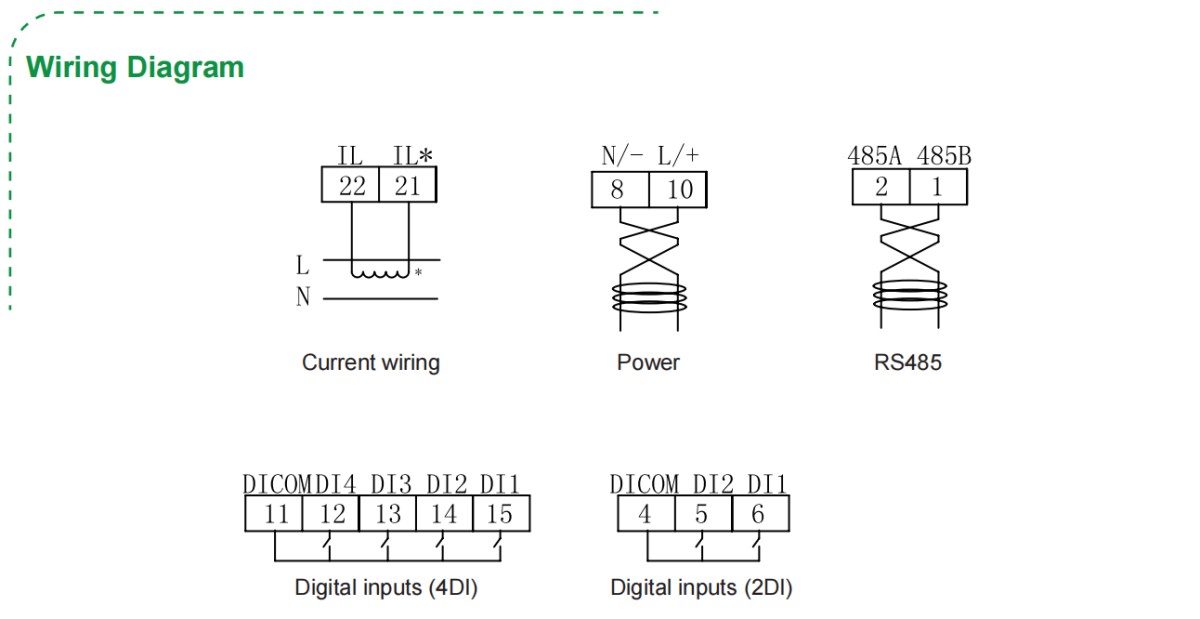

Wiring Diagram

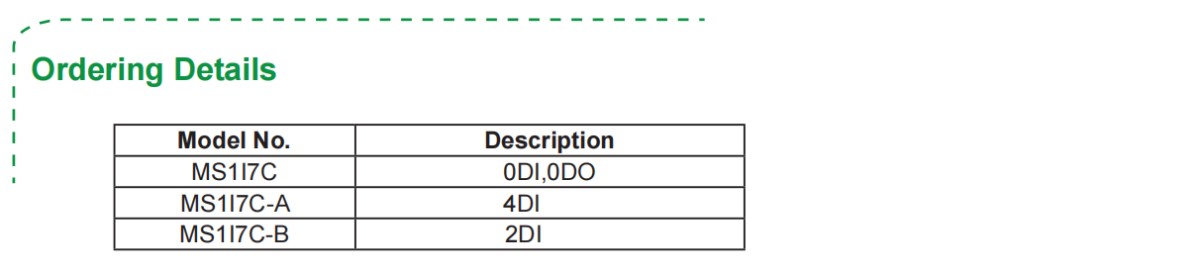

Ordering Details

Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
