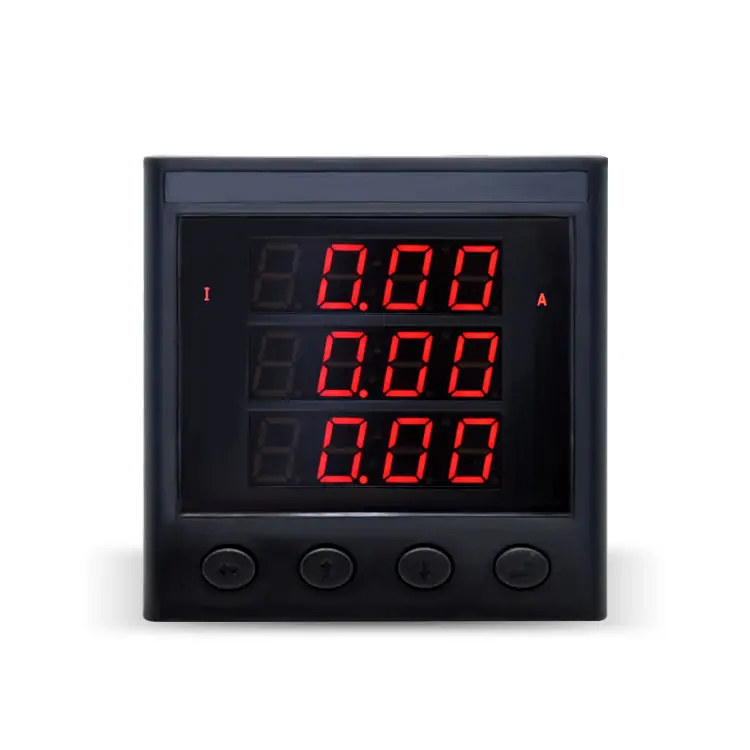

  • Three Phase Digital Ampere Meter MS3I7E3

Three Phase Digital Ampere Meter MS3I7E3
MS3I7E3

  • Measuring three-phase current

  • Standard CT connected, suitable for various wiring modes under high or low-pressure environments

  • 1*RS485, Modbus RTU communication protocol

  • Display: LED display

Request A Sample
Download
Description
FAQ

This ampere meter is suitable for constant measuring and simultaneousdisplaying currentin power grid. And it can communicate with different PLC and industrial computers in the system.


Technical Parameters-MS3I7E3
Accuracy ClassCurrent: 0.2
InputRated ValueCurrent: 1A/5A
OverloadCurrent: Sustained Overload: 1.2 times of the rated value
      Momentary Overload:   10 times of the rated value
Frequency45-60Hz
Functional ModulePulse Output2
Interface

1*RS485; Modbus RTU Communication Protocol;

Baud Rate:   1200-19200 bps

DI2-4DI
DO2DO
Power SupplyWorking RangeAC: 85-265V; DC:85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20°C~+70°C. Storage: -40°C~ +80°C
HumidityRelative Humidity: ≤93% (place without corrosive gas)
Altitude≤4000m
Dimensions:68×68mm
InstallationPanel Installation

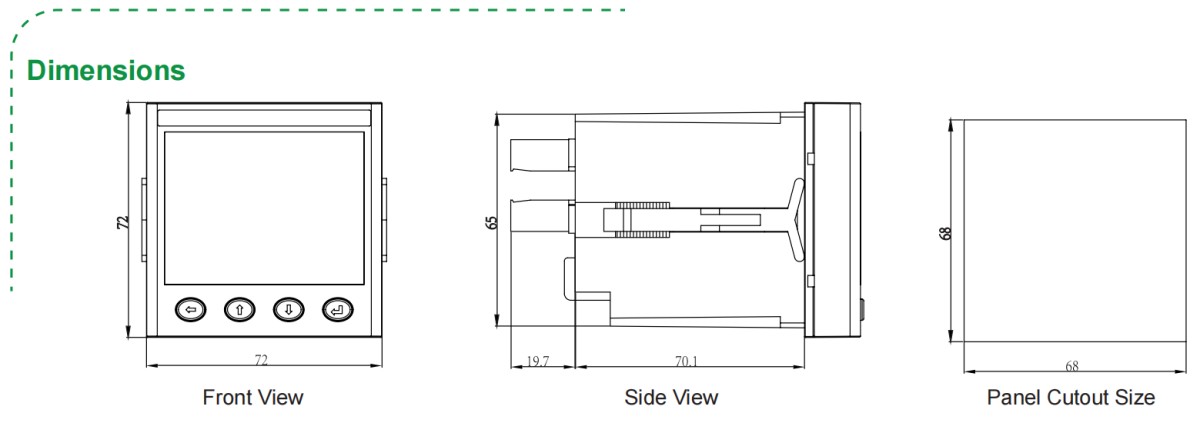

Dimensions

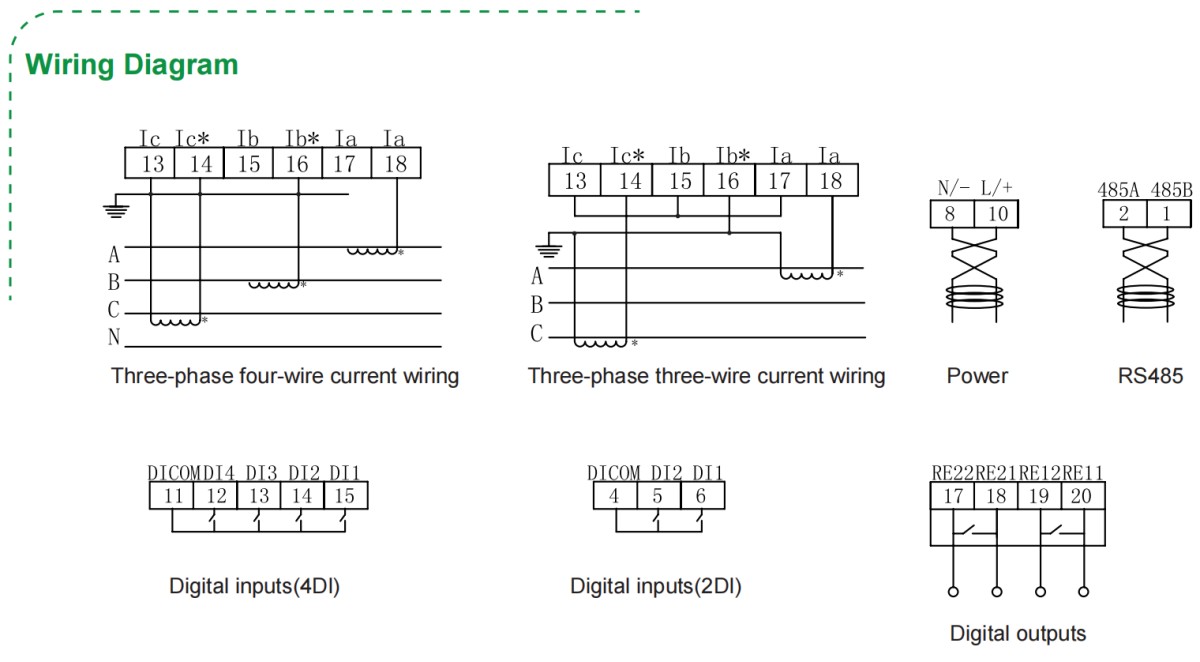

Wiring Diagram

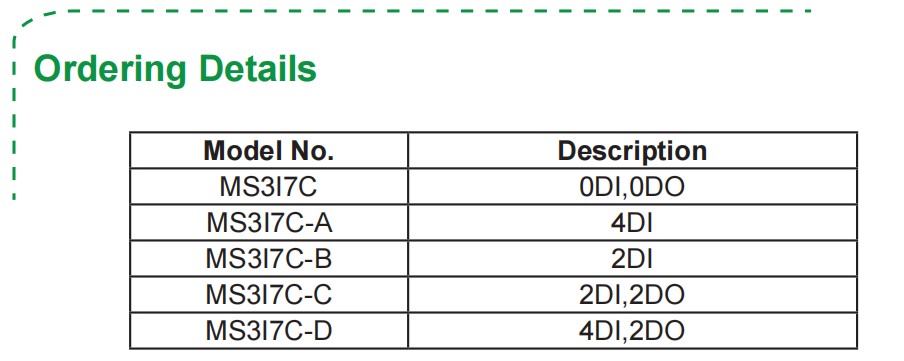

Ordering Details




Q1: How long is your delivery time?

A：Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q2: Do you provide samples ? is it free or extra ?

A：Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A：Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
