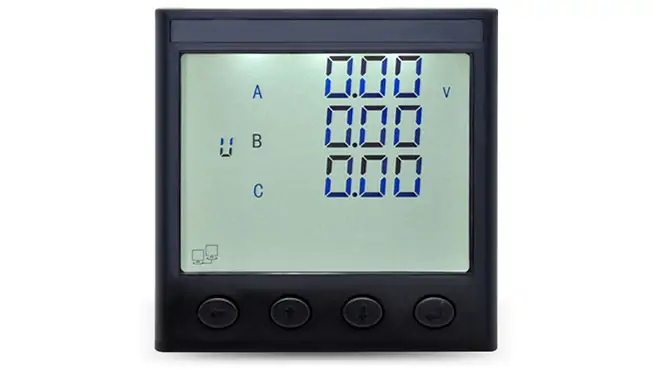

Three Phase Digital Voltmeter MS3U7C
MS3U7C

• Measuring three-phase voltage, line voltage,frequency

• Standard PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment

• 1* RS485, Modbus RTU communication protocol

• LCD display

Description
FAQ

Three phase digital voltmeter are able to measure voltage in transmission & distribution power system, widely used in power transforming, distribution automation, intelligent building and power monitoring.

Technical Parameters-MS3U7C
Accuracy ClassVoltage: 0.2
InputRated ValueVoltage: 100V /400V
OverloadVoltage: Sustained Overload: 1.2   times of the rated value
            Momentary Overload: 2   times of the rated value
Frequency45-60Hz
Functional ModuleInterface1*RS485; Modbus RTU Communication Protocol; Baud Rate: 1200-19200bps
DI

2-4DI

DO2DO
Power SupplyWorking RangeAC: 85-265V; DC:85-300V
Consumption< 3W
Working ConditionTemperatureOperating: -20°C~+70°C. Storage: -40°C~ +80°C
HumidityRelative Humidity: < 93% (place without corrosive gas)
Altitude≤4000m
Dimensions68×68mm
InstallationPanel installation

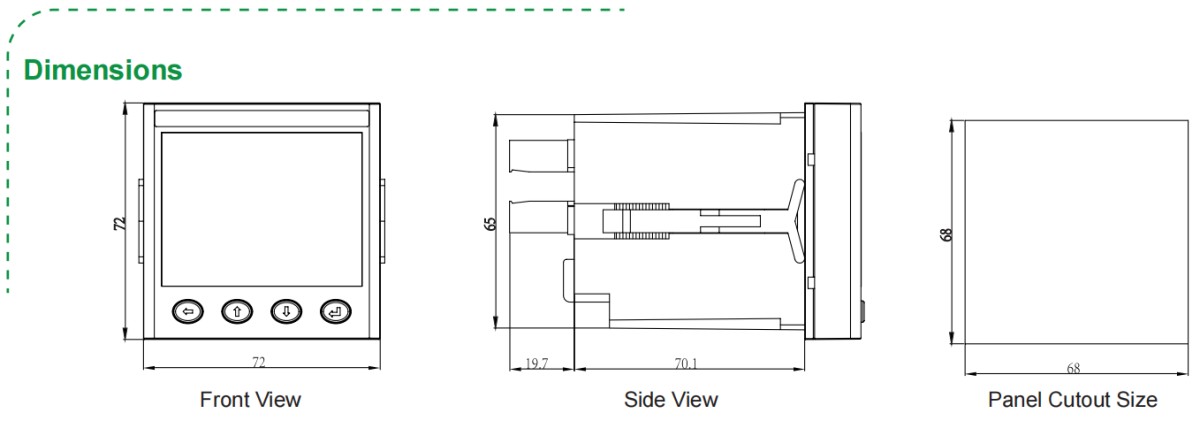

Dimensions

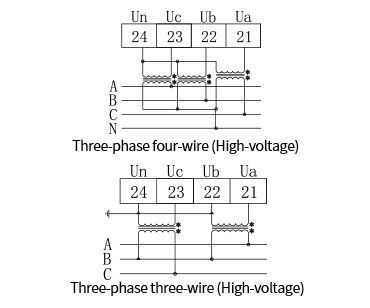

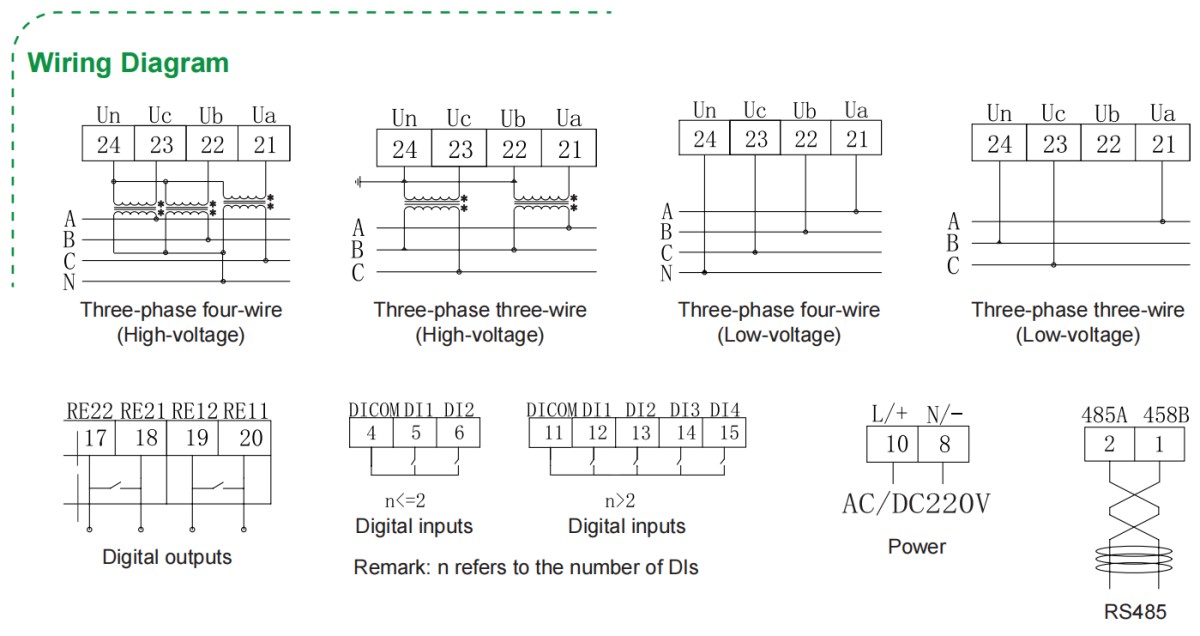

Wiring Diagram

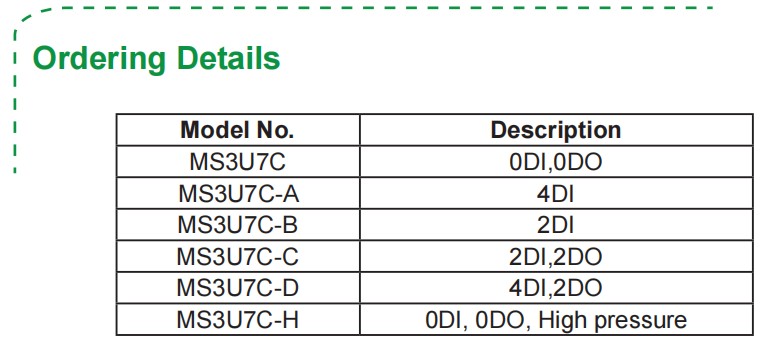

Ordering Details


Q1: How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q2: Do you provide samples ? is it free or extra ?

A:Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.

Q3: What is your terms of payment ?

A:Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below
