Measuring three phase voltage, current, line voltage, zero-sequence current, zero-sequence voltage, active power, reactive power, apparent power, power factor, frequency, four-quadrant electric energy, active energy, reactive energy, bidirectional active energy, bidirectional reactive energy, Voltage unbalance, current unbalance
Analysis of current/voltage harmonic (2-31times)
Multi tariff, available for querying past 12 months' energy
Off-limit alarm and alarm event record
SOE records accurate to milliseconds
Real time clock

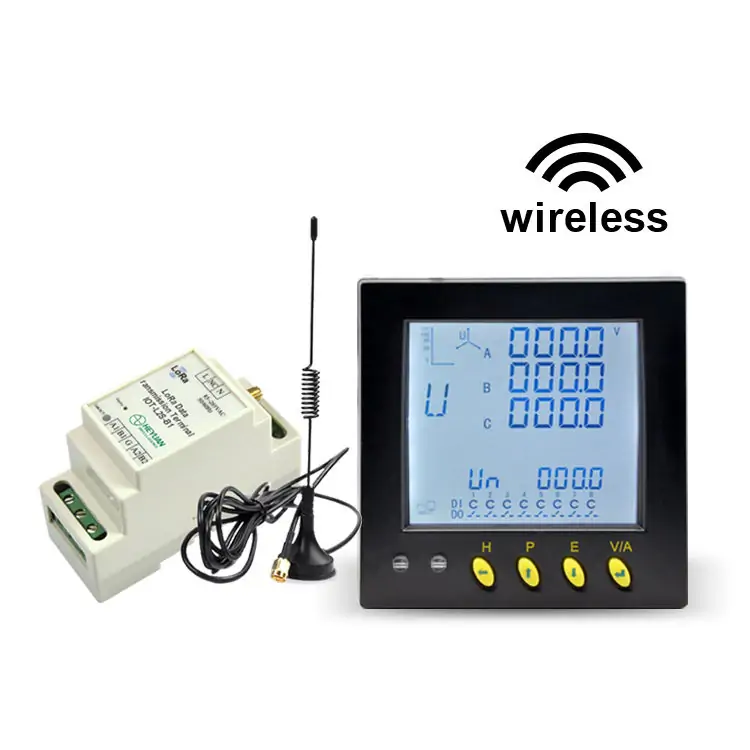

Communication: Modbus-RTU via RS485; LoRa (Optional)

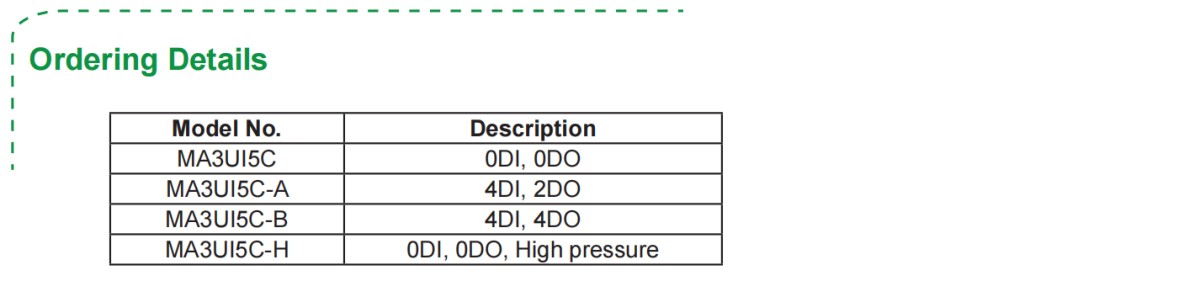

Digital input & output: 4 DI; 2-4 DO
Voltage qualified rate
Maximum statistics
Demand analysis
Programmable data records (8M)
1* programmable energy pulse output
Fault judgement & analysis
Accuracy: active energy accuracy: 0.5S, Voltage & Current accuracy: 0.2%
Power supply: AC: 85-265V; DC: 85-300V

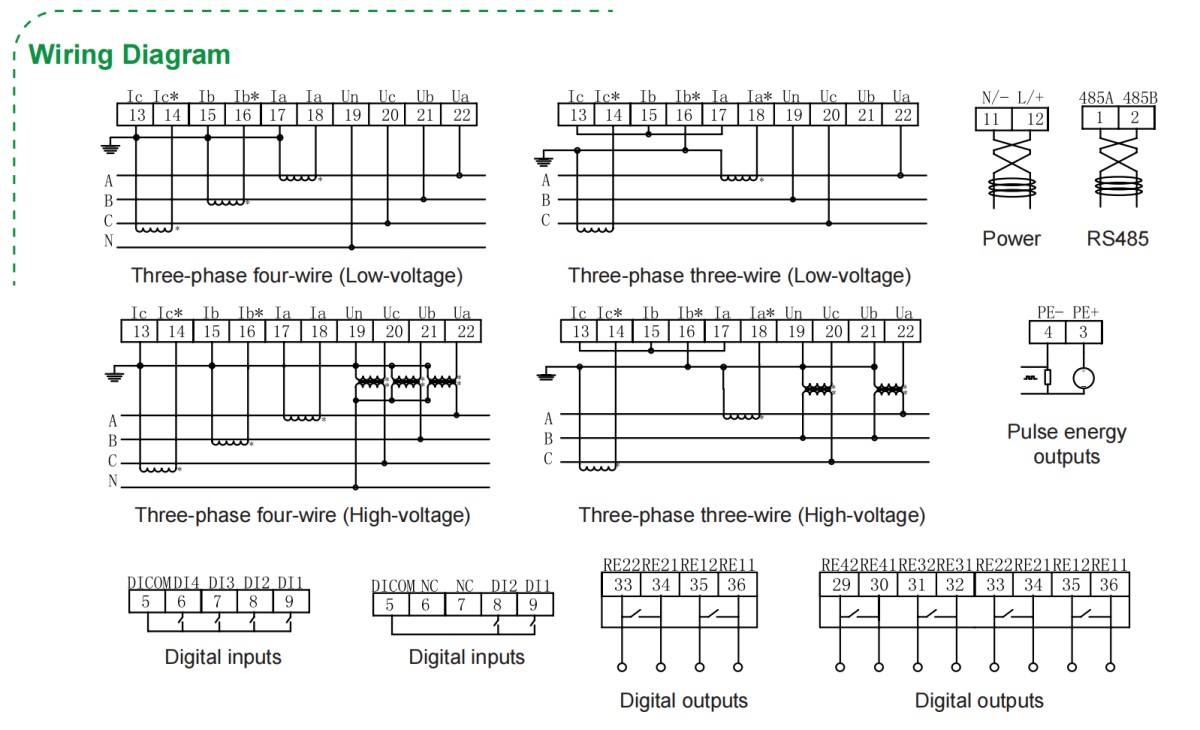

CT/PT connection

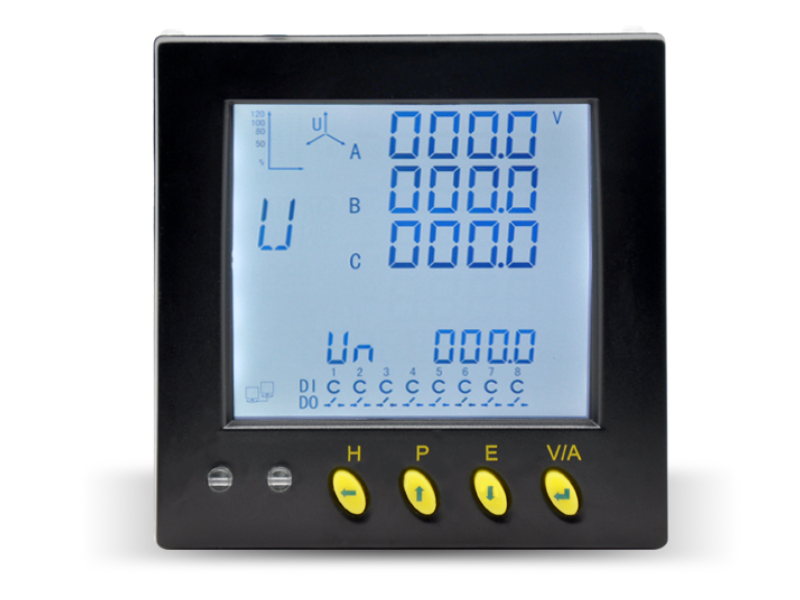

Display: 4 Figures; LCD screen

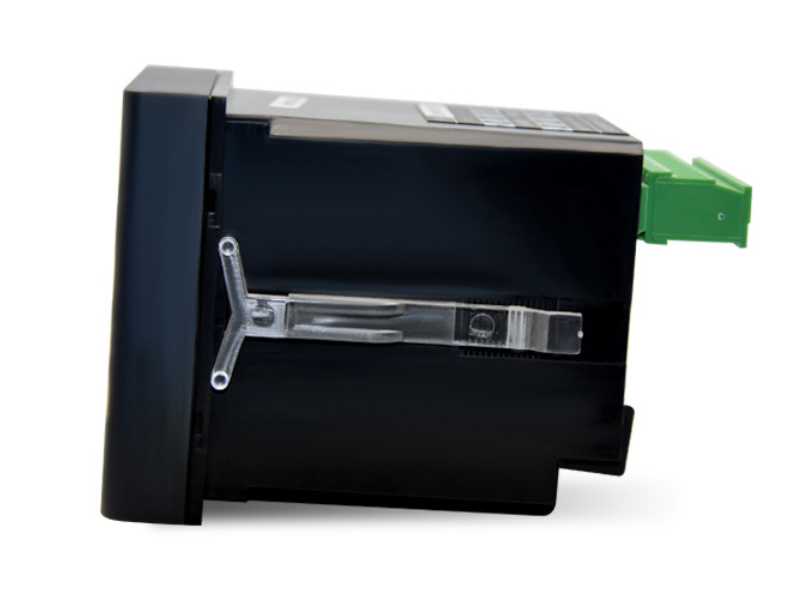

Panel installation

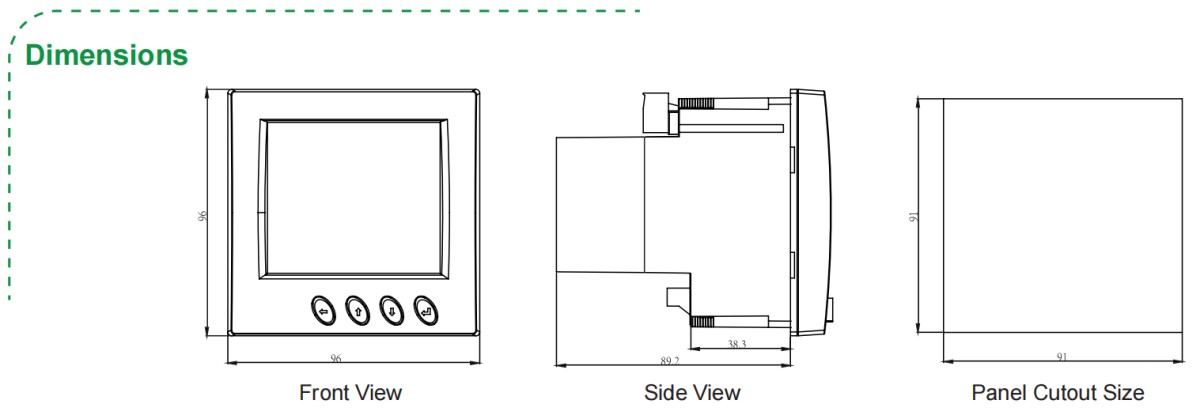

Dimension: 96mm × 96mm

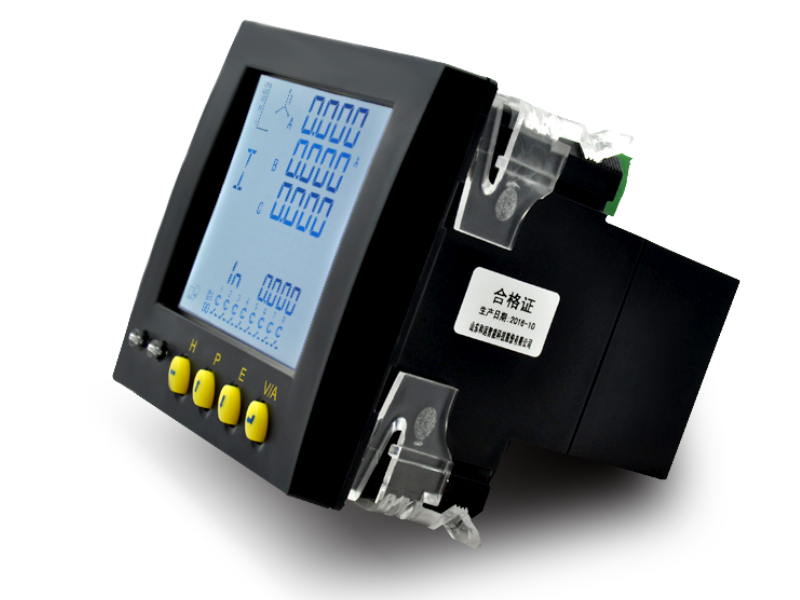

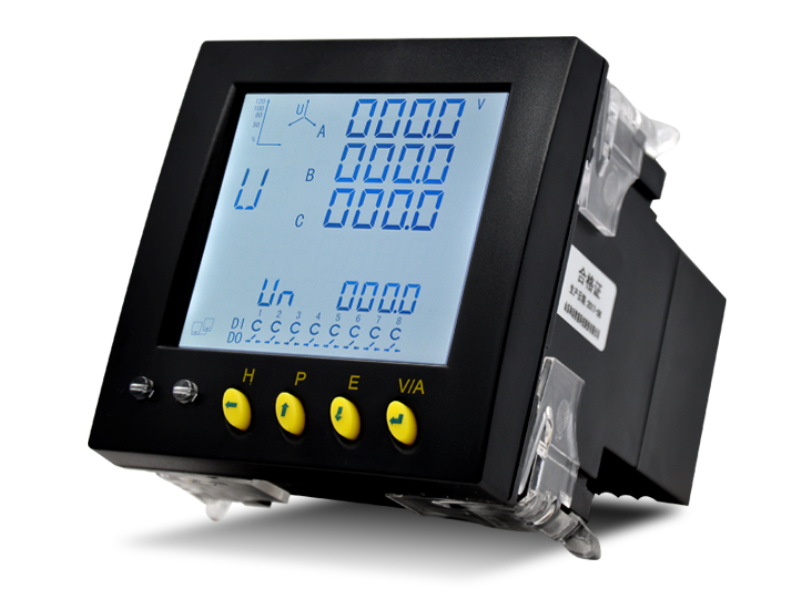

Panel mount multifunction three-phase KWh & power meter measures current, voltage, energy, watt, power factor, watt-hour and frequency, etc, which is suitable for electricity distribution metering.Its built-in RS485 can easily integrated with most third SCADA system.
