Power Environmental Monitoring Background

With the development of technology and enterprise informatization, the number and scale of computer room construction, communication base stations and power distribution rooms continue to expand. As a hub for information exchange and storage in various units, scientific management is particularly important.

In the past, users focused on computer room management in anti-hacking or illegal intrusion, computer viruses, network failures, data backup, etc., often overlooking the environmental changes in the equipment room, which may cause unforeseen consequences, such as high temperature / humidity of the equipment room, unstable power system, imperfect security measures, causing hidden dangers, malfunctions even machine room accidents.

After many years of experience in the application of the Internet of Things industry, Heyuan can provide a complete set of IoT hardware solutions for the computer room, communication base station, power distribution room, etc., including: air conditioning, UPS, Battery monitoring, power detection, temperature and humidity monitoring, smoke, lighting control, infrared, water leakage detection, access control, closed-circuit monitoring, fire monitoring, etc., with intelligent gateway.

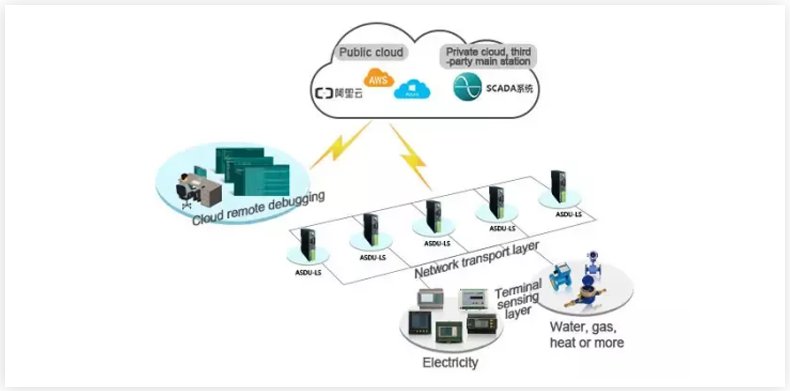

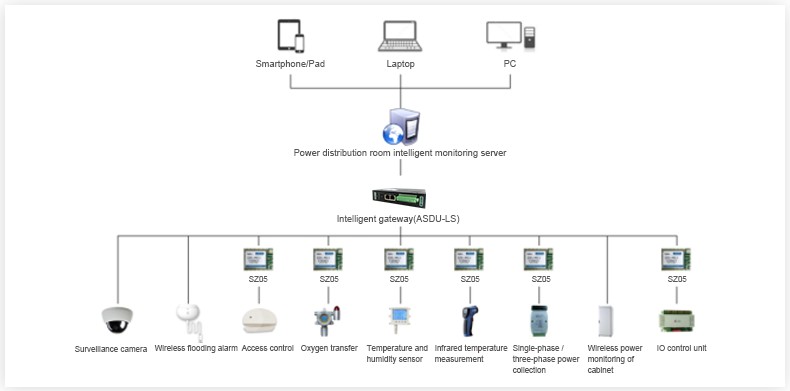

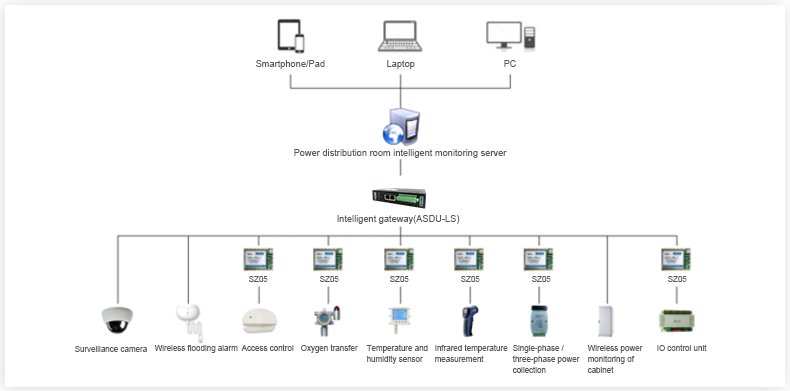

Power Environmental Monitoring Schematic Diagram

Functions & Devices List

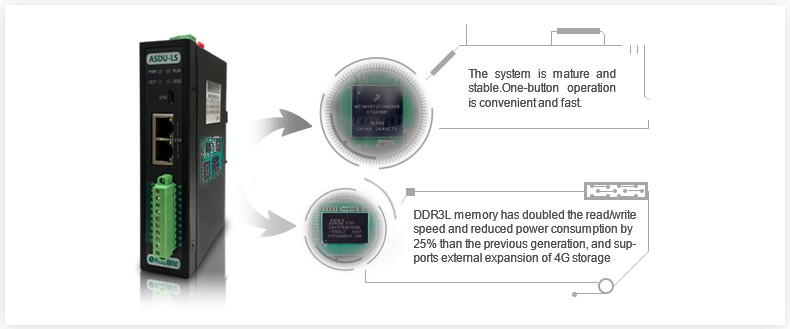

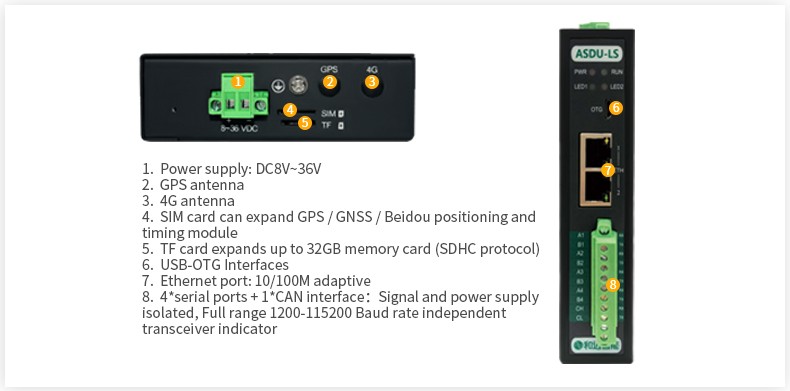

• Intelligent Gateway

The Cortex®-A7@CPU adopts 28nm process that reduces power consumption by 80% compared to the previous generation.

256M DDR3L memory, 4GB EMMC storage, up to 32GB TF card expansion.

• Smart Edge software

Pioneering cloud debugging realizes remote configuration, debugging and upgrade;

Programmable communication protocols, Protocol driven Template for batches configuration;

Data buffer once communication interruption, then upload data’s during interruption after communication recovery;

Support storage and management of various documents such as communication messages and data files;

Provide HTTP and MQTT data release;

Hardware and software dual watchdog mechanism ensures stability and reliability.

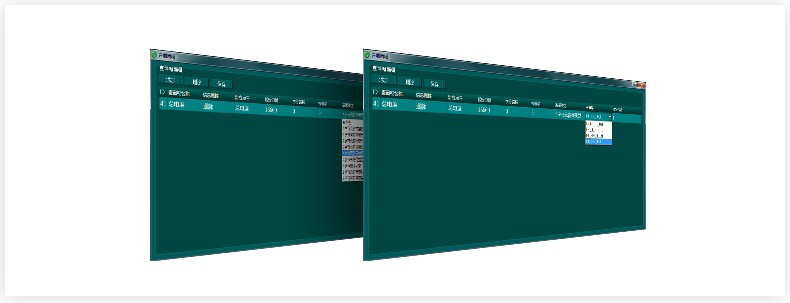

• Customized terminal template shortcut configuration management

Configure the terminal template once and for all;

Four-remote data all covered;

Portable personalized custom database files;

Quick configuration for same type terminals in different project sites and various application scenarios.

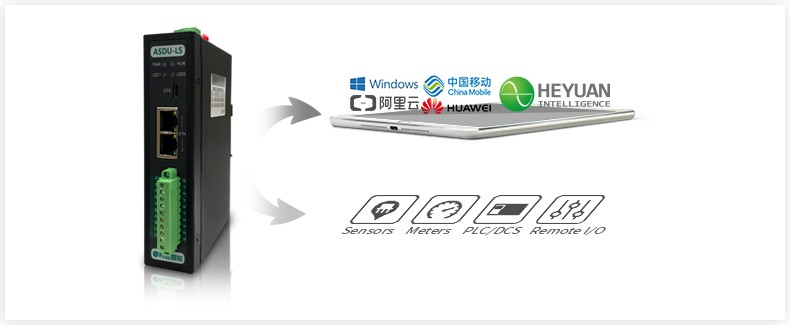

• Adapt to various types of collection terminal for full coverage data type

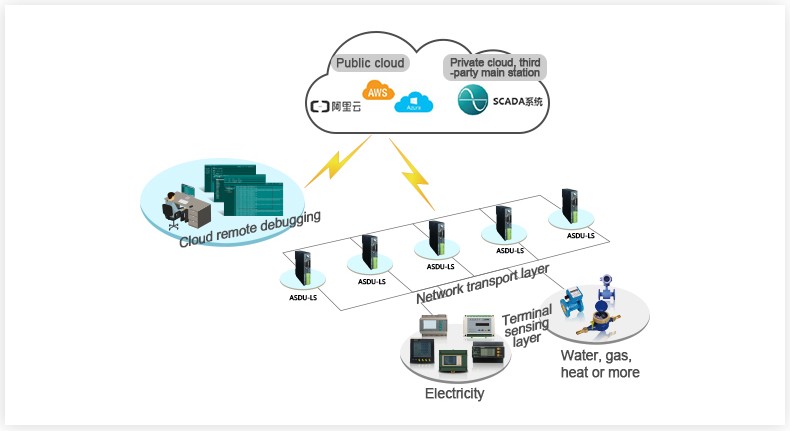

• Cloud debugging remotely analyze data to solve field problems

The simulation demonstration can remotely analyze the data to solve the problem at home, without going and back the site.

•  Power Monitoring Equipment

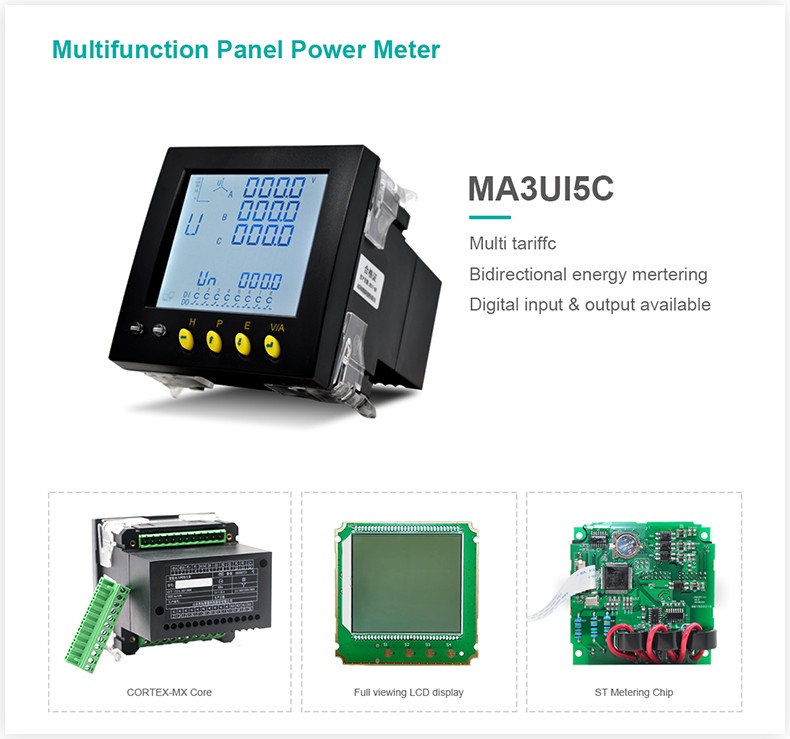

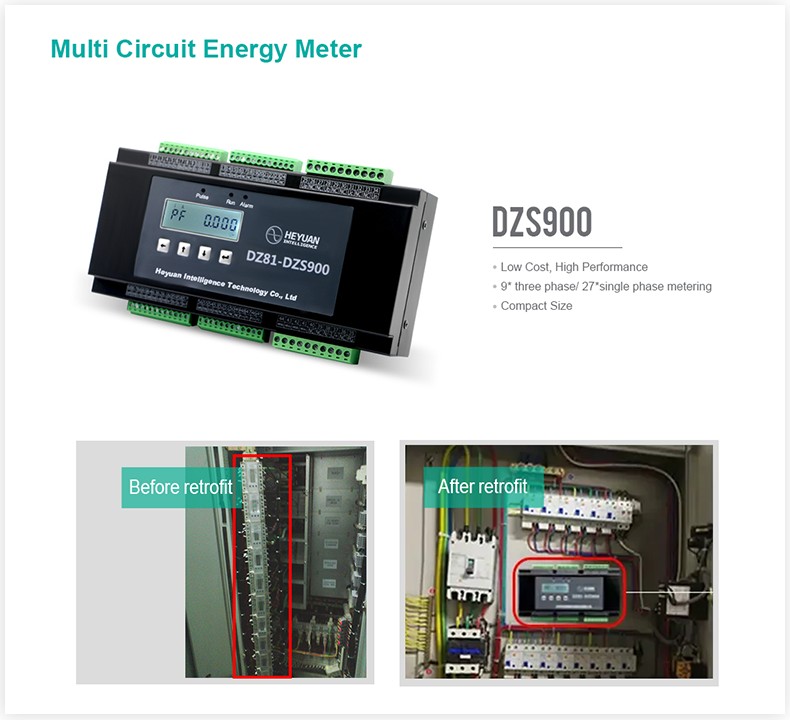

Smart Meter

UPS monitor

Battery monitor

Oil machine monitor

• Environmental Monitoring Equipment

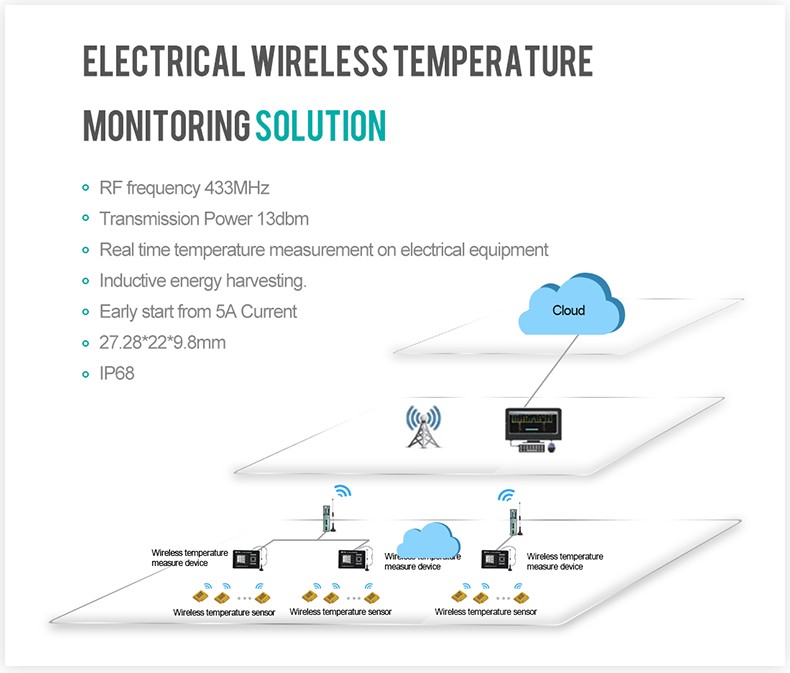

Wireless temperature and humidity

Wireless light controller

Wireless smoke monitoring

Wireless flood monitoring

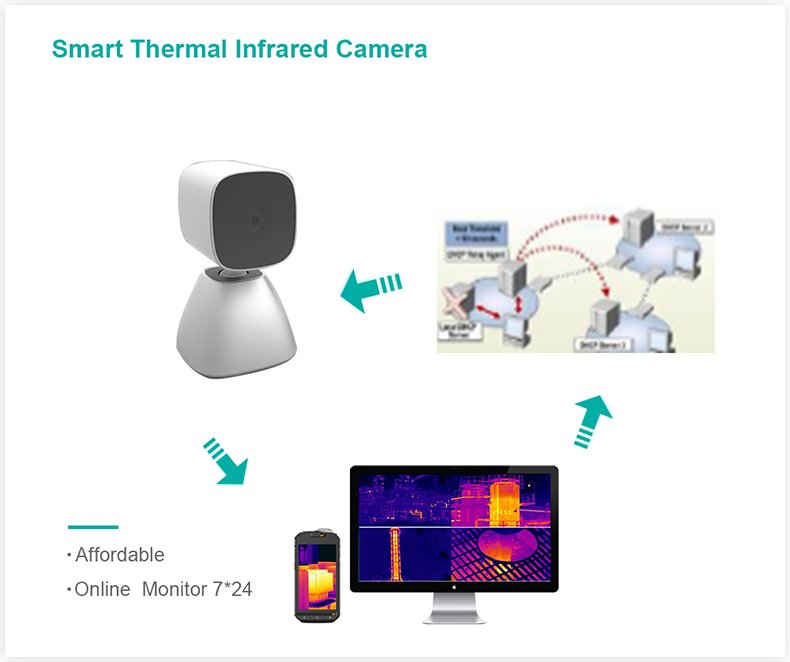

Wireless infrared monitoring

Air conditioning monitoring

Smart access control

New fan

Video Surveillance
